Fail-Safe Digital Output Module 10201-2-1 Honeywell

Product Description

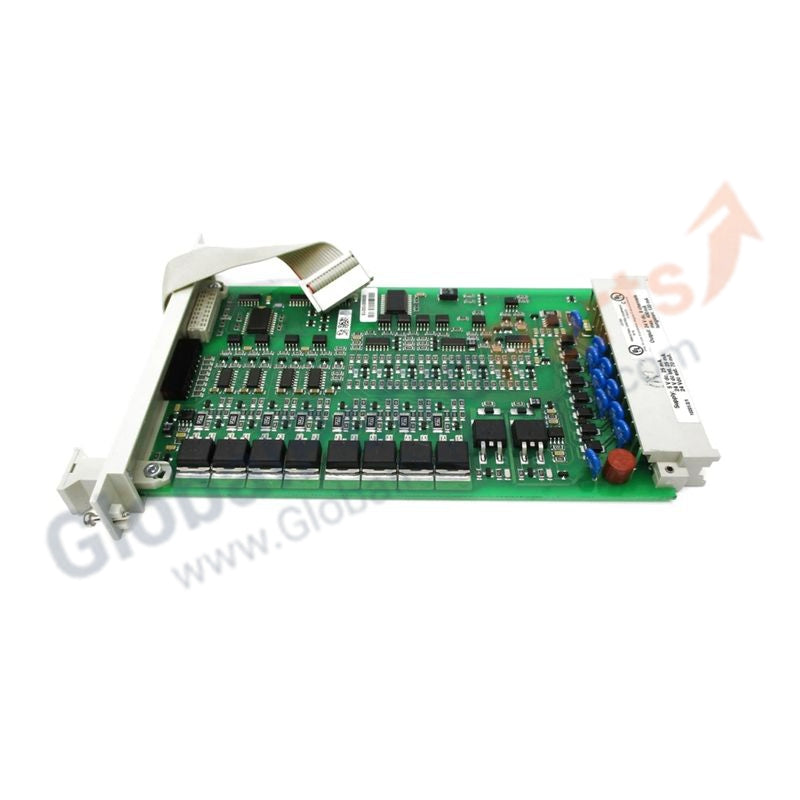

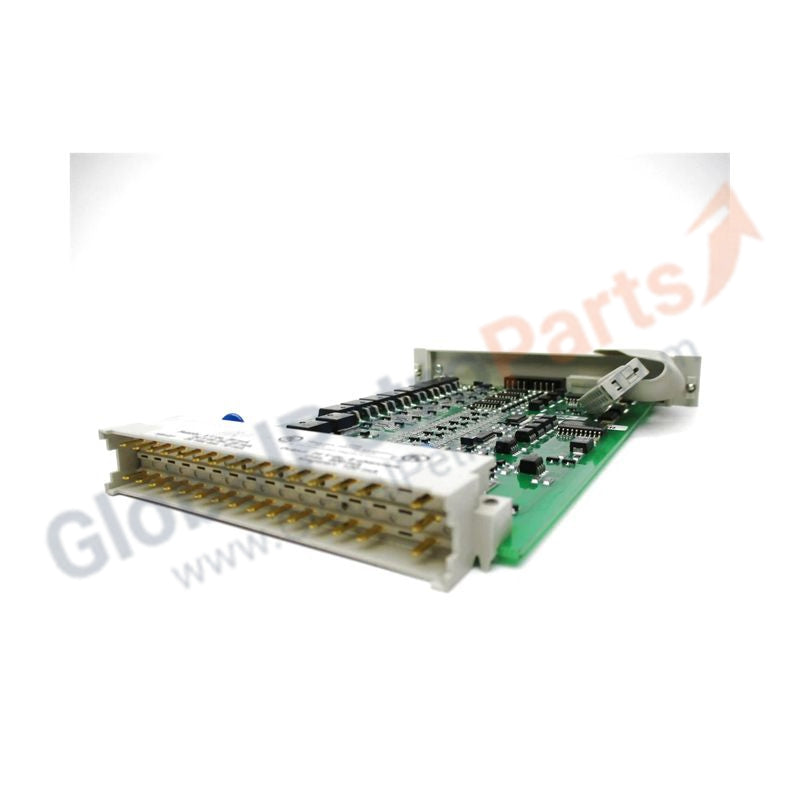

The 10201/2/1 (Part Number: 10201/2/1) is a high-integrity Fail-Safe Digital Output (DO) Module for Honeywell Fail Safe Control (FSC) systems. It features eight independent 24 V DC solid-state outputs, each capable of sourcing up to 550 mA. The module is purpose-built to drive critical loads such as solenoids, relays, and indicator lamps, providing safe de-energization for emergency shutdown (ESD) and safety-critical loops.

Safety is embedded through continuous self-testing, verifying the de-energization of individual channels, crosstalk detection, and suppression diode integrity. Integrated protection against inductive loads and full compliance with TUV and UL standards make it suitable for SIL-rated safety instrumented systems in oil, gas, and chemical processing environments.

Technical Specifications

Application Scenarios

• Driving ESD solenoid valves in gas processing and chemical plants

• Activating critical safety sirens and status lamps in industrial facilities

• Interfacing with fail-safe interposing relays for high-power equipment isolation

• Implementing SIL-3 rated safety loops in the Honeywell FSC architecture

Frequently Asked Questions

Does the 10201/2/1 require external diodes for inductive loads?
No. Each output channel has an integrated suppression diode for back-EMF protection. These diodes are continuously monitored as part of the module’s fail-safe testing.

What happens if a short circuit occurs on an output?
The module is short-circuit proof. Internal protection prevents damage, and the fault is reported to the FSC system for operator intervention.
