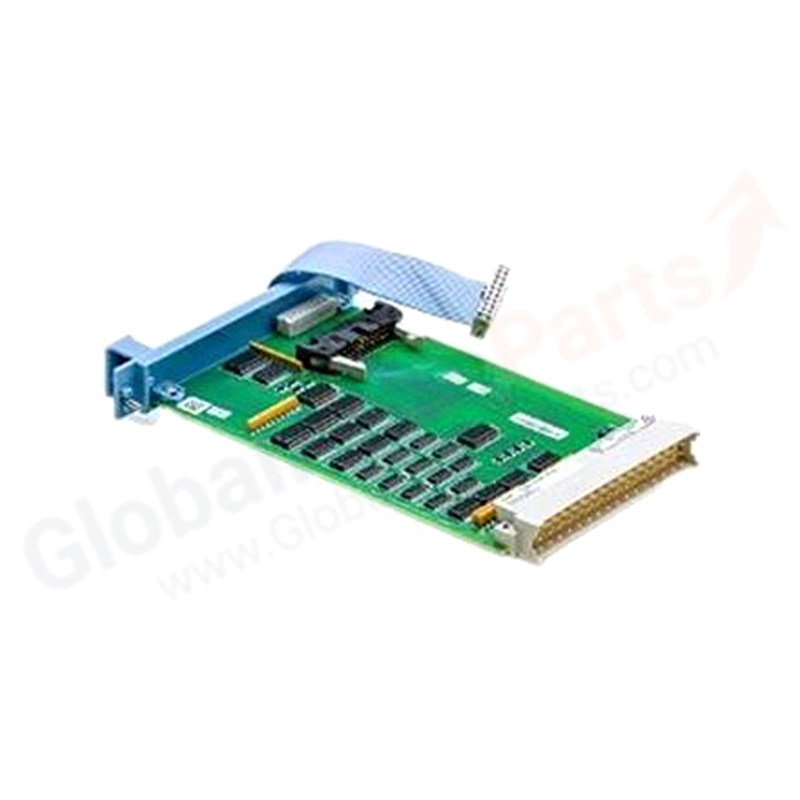

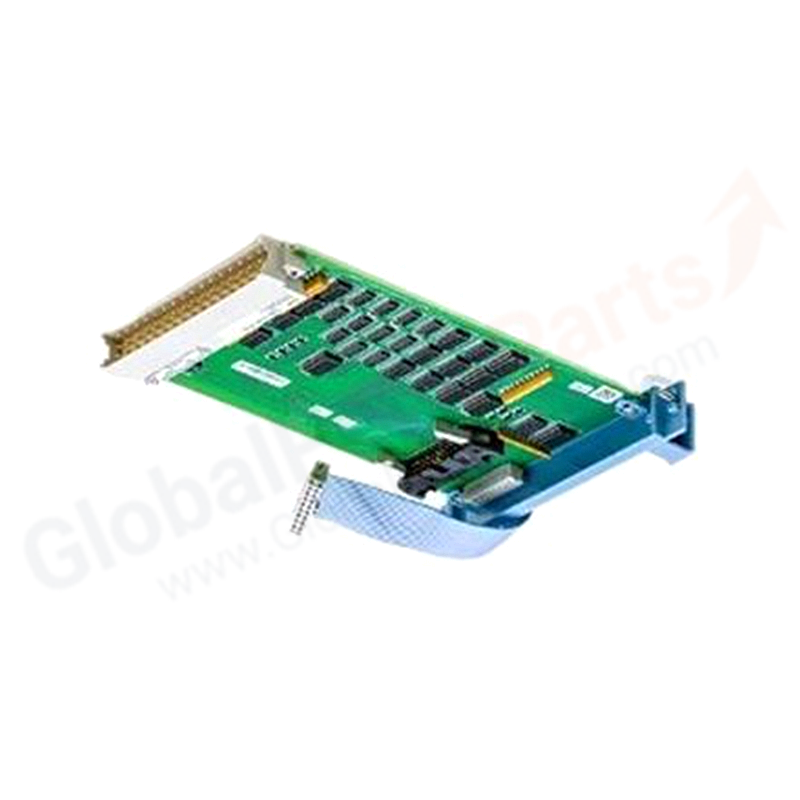

FC-IO-0002 | Honeywell I/O Extender Module

Product Overview

The Honeywell FC-IO-0002 is an I/O Extender Module that enables expansion of I/O capacity in Honeywell Safety Manager systems. Installed in the I/O chassis, this module provides the interface between the local I/O bus and additional I/O modules or remote I/O racks, allowing flexible system scaling for large safety applications.

Key Features

• I/O Bus Extension: Extends I/O bus to additional modules or remote racks
• Slot 21 Installation: Typically installed in Slot 21 of I/O chassis
• Bus Interface: Connects horizontal I/O bus to extended I/O segments
• Status LEDs: Bus activity and diagnostic indicators
• Compact Module: Standard 4TE width

Technical Specifications

• Model: FC-IO-0002
• Type: I/O Extender Module
• Function: I/O bus extension
• Installation: Slot 21 of I/O chassis (typical)
• Bus Type: Horizontal I/O bus (IOBUS-HBS/HBR)
• Module Width: 4 TE (20.32 mm / 0.8 in)
• Power Requirements: 5 VDC (refer to system documentation)
• Operating Temperature: -40°C to +70°C

Installation Guide

1. Slot Assignment: Install in designated extender slot (typically Slot 21)
2. Flat Cable: Connect to horizontal I/O bus
3. Extended Bus: Connect additional I/O modules or remote I/O interface
4. Configuration: Verify extender configuration in Safety Manager software

FAQ

Q: Is this required for all I/O chassis?
A: The IO-0002 is typically required in the first I/O chassis and may be needed in additional chassis depending on system architecture.

Q: Can this support remote I/O?
A: Yes, the IO-0002 can interface with remote I/O communication modules for distributed architectures.

Selection Tips

• Required for I/O chassis expansion beyond base configuration
• Verify system architecture to determine extender requirements
• Plan for future I/O growth when configuring extenders
