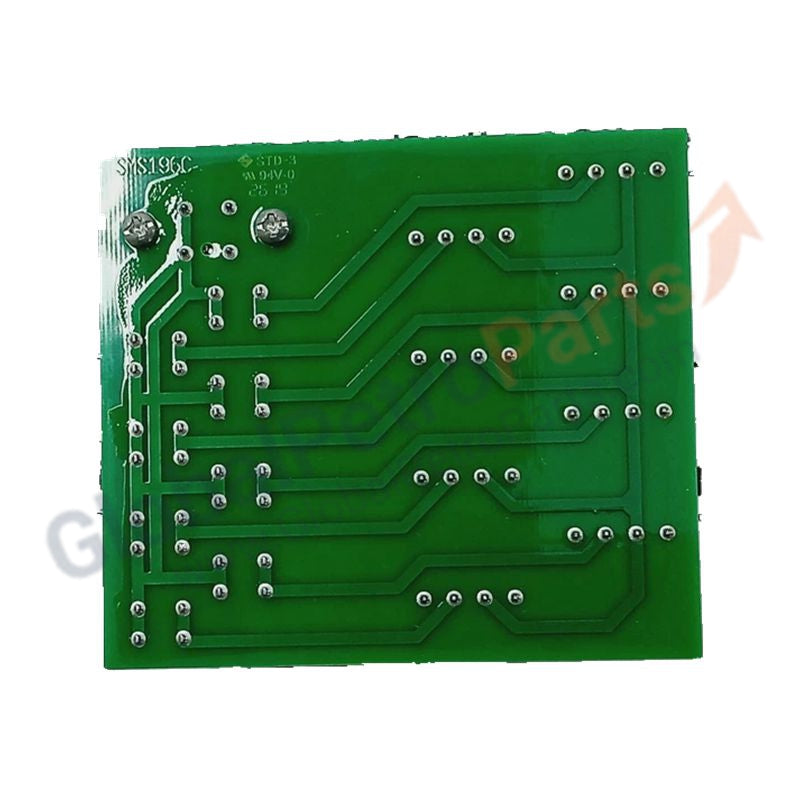

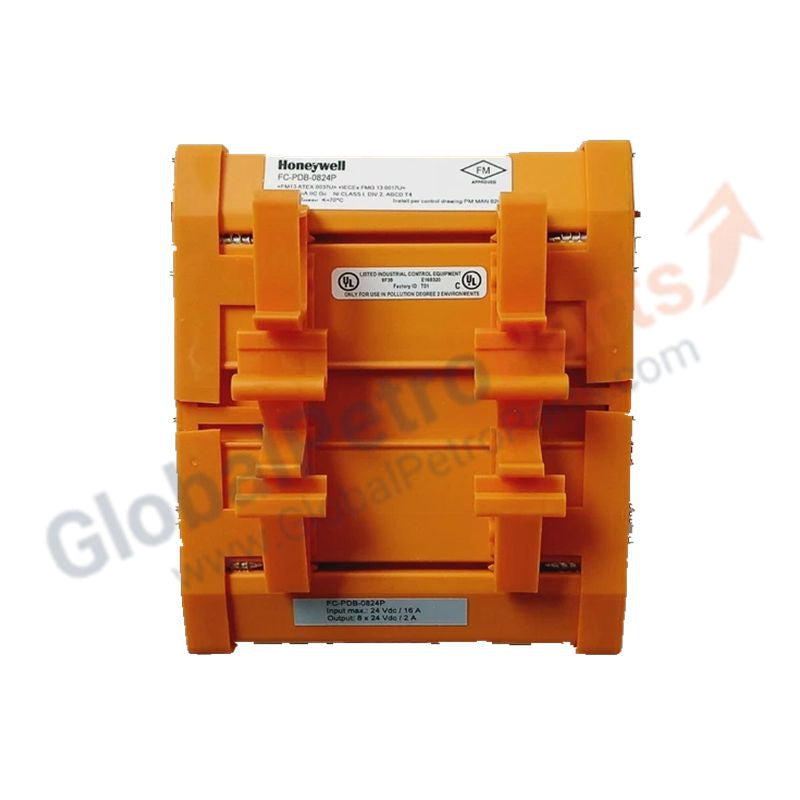

FC-PDB-0824P Honeywell Power Distribution Board

Product Description

The FC-PDB-0824P is a high-reliability Power Distribution Board (PDB) engineered for the Honeywell Safety Manager system and other industrial automation applications. It provides a central hub for distributing 24VDC power to field devices, sensors, and actuators. With 8 independent, fuse-protected output channels, this PDB ensures that localized electrical faults do not compromise the integrity of the entire safety system.

Designed for harsh industrial environments, the FC-PDB-0824P features high-quality Weidmuller connectors for vibration-resistant wiring and supports a wide operating temperature range. Its compact DIN-rail mountable design and robust safety approvals (TUV, UL, CE) make it ideal for distributed power management in critical automation and safety applications.

Technical Specifications

Key Operational Features

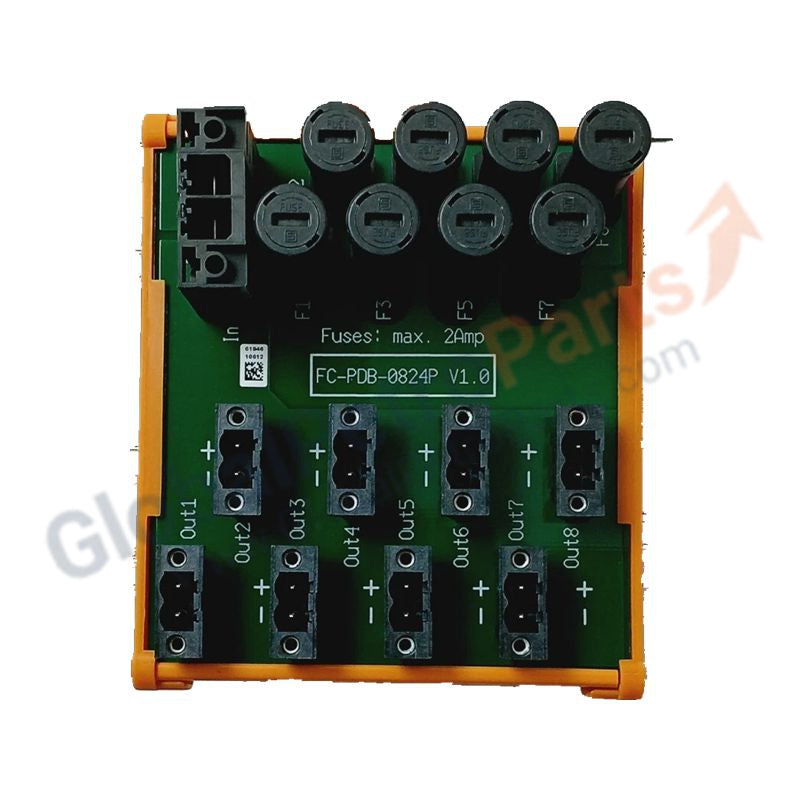

• Circuit Protection: Individual slow-acting fuses prevent a single short circuit from affecting other outputs.

• Serviceability: T-type fuses handle temporary inrush currents from inductive loads such as solenoids or relays without nuisance blowing.

• Rugged Connectivity: Keyed input connectors prevent incorrect installation; Weidmuller socket blocks provide stable connections in high-vibration environments.

• Space Efficiency: Compact 95 mm rail footprint allows dense installation in standard control cabinets.

Technical FAQ

What does the "P" in FC-PDB-0824P signify?
The "P" indicates a Protected version, featuring enhanced per-channel fusing and power-limiting to safeguard both the upstream power supply and downstream devices.

Can I use a fuse rated higher than 2A per output?
No. Each output is rated for 2 Amps maximum. Exceeding this rating may overheat PCB traces and void safety certifications.
