FC-TSKUNI-1624 | Honeywell | SM RIO Safe FTA Knife

Product Overview

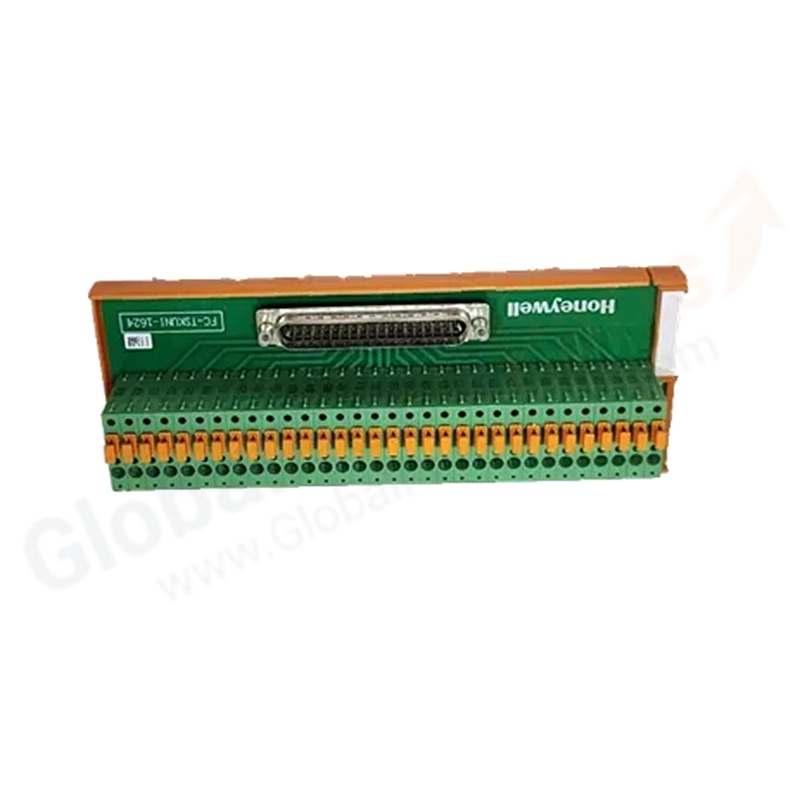

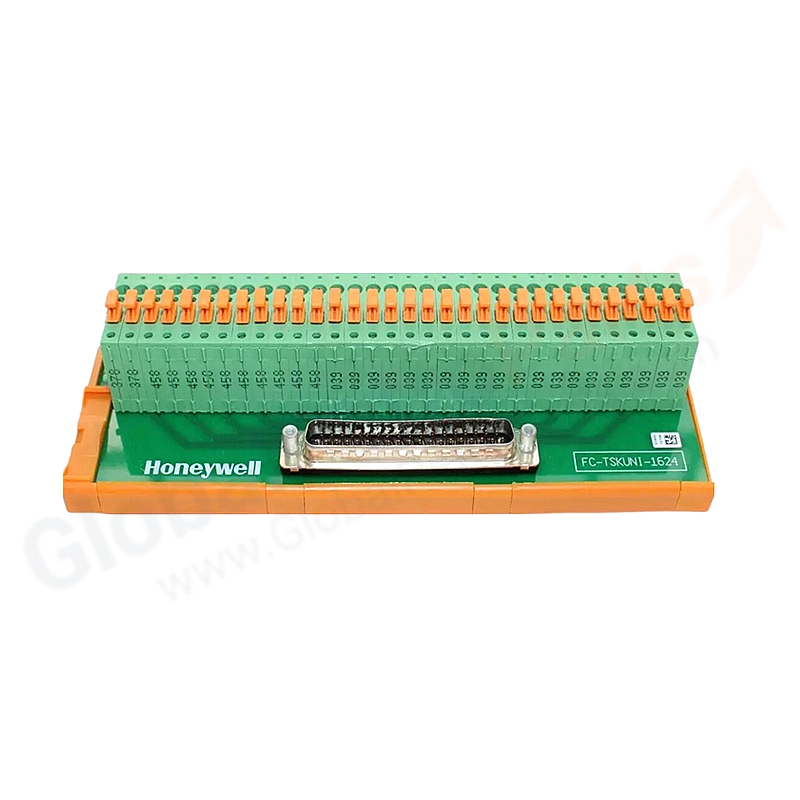

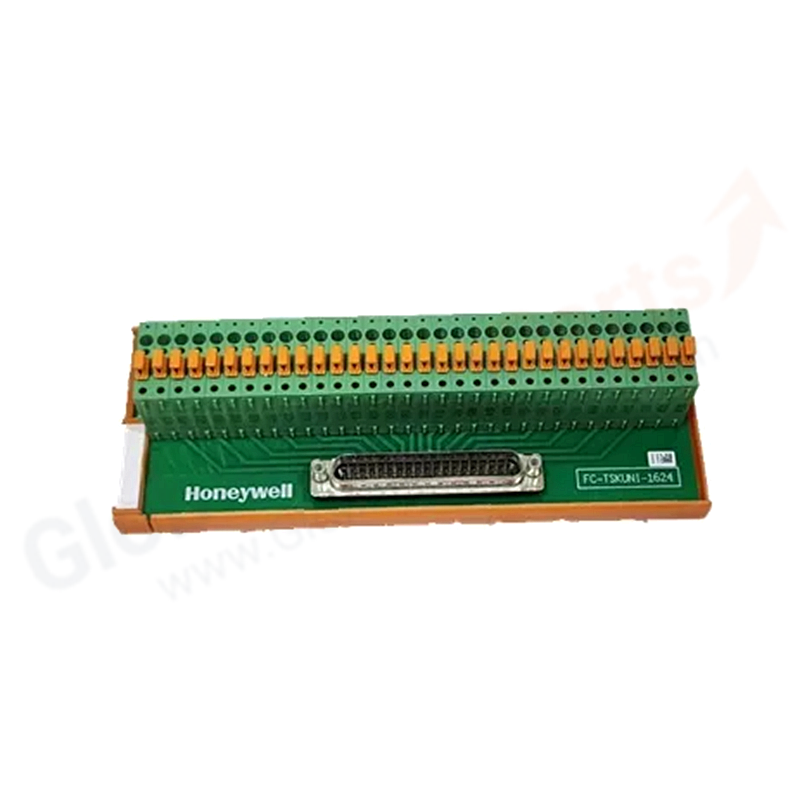

The Honeywell FC-TSKUNI-1624 is a SM RIO Safe FTA Knife (Field Termination Assembly) designed for the Honeywell Safety Manager system. It provides safe, reliable field termination for 16 channels of 24 V DC universal safety I/O, serving as the interface between Safety Manager RIO (Remote I/O) modules and field devices in safety instrumented systems (SIS).

Key Specifications

• Model Number: FC-TSKUNI-1624
• Product Type: SM RIO Safe FTA Knife
• Series: Honeywell Safety Manager
• Channels: 16 channels
• Operating Voltage: 24 V DC
• Application: Safe field termination for Remote I/O modules
• Compatibility: Safety Manager RIO system
• Shipping Weight: 2 kg

Core Features

• 16-channel safe field termination assembly for RIO modules
• "Knife" style compact design for high-density installations
• Provides galvanic isolation and signal conditioning between field devices and Safety Manager I/O modules
• Designed for SIL-rated safety instrumented systems
• Compatible with Honeywell Safety Manager RIO architecture

Applications

• Safety instrumented systems (SIS) in process industries
• Emergency shutdown (ESD) systems
• Fire and gas detection systems
• Process safeguarding applications
• Oil and gas, chemical, and pharmaceutical industries

FAQ

Q: What does "FTA Knife" mean?
A: "FTA" stands for Field Termination Assembly, and "Knife" refers to the compact, blade-style form factor designed for high-density mounting in Safety Manager RIO enclosures.

Q: Is the FC-TSKUNI-1624 compatible with all Safety Manager systems?
A: It is specifically designed for the Safety Manager RIO (Remote I/O) system. Verify RIO module compatibility before ordering.

Installation Guide

1. Power down the Safety Manager RIO system before installation.
2. Mount the FTA Knife in the designated RIO enclosure slot.
3. Connect field device wiring to the appropriate channel terminals.
4. Verify all connections and perform continuity testing.
5. Power up the system and verify channel status via Safety Manager software.

Selection Tips

• Verify RIO module compatibility (SM RIO system) before ordering.
• For 3-wire configurations, consider FC-TSPKUNI-1624.
• For 3-wire with extended length, consider FC-TSPKUNI-1624L.
• Ensure proper cabinet spacing for knife-style FTA modules.
