Field Control Output Module IC670MDL740J GE Fanuc

Product Overview

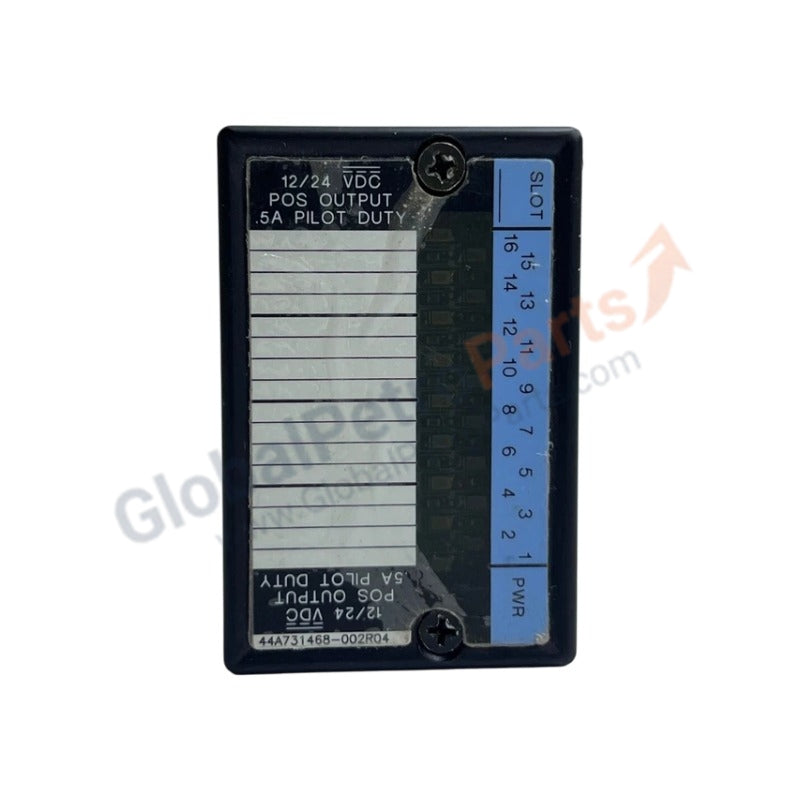

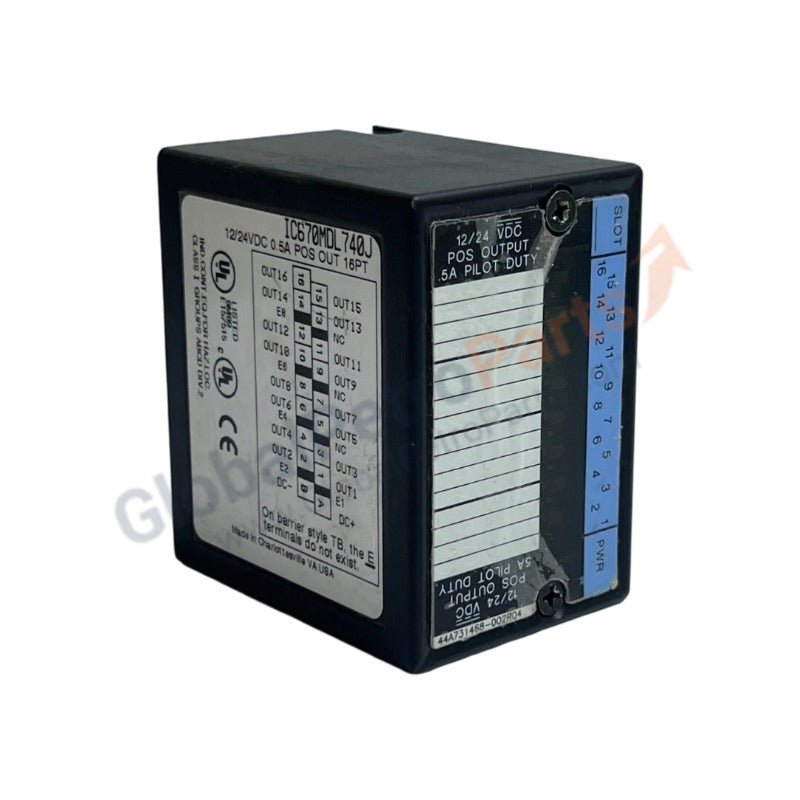

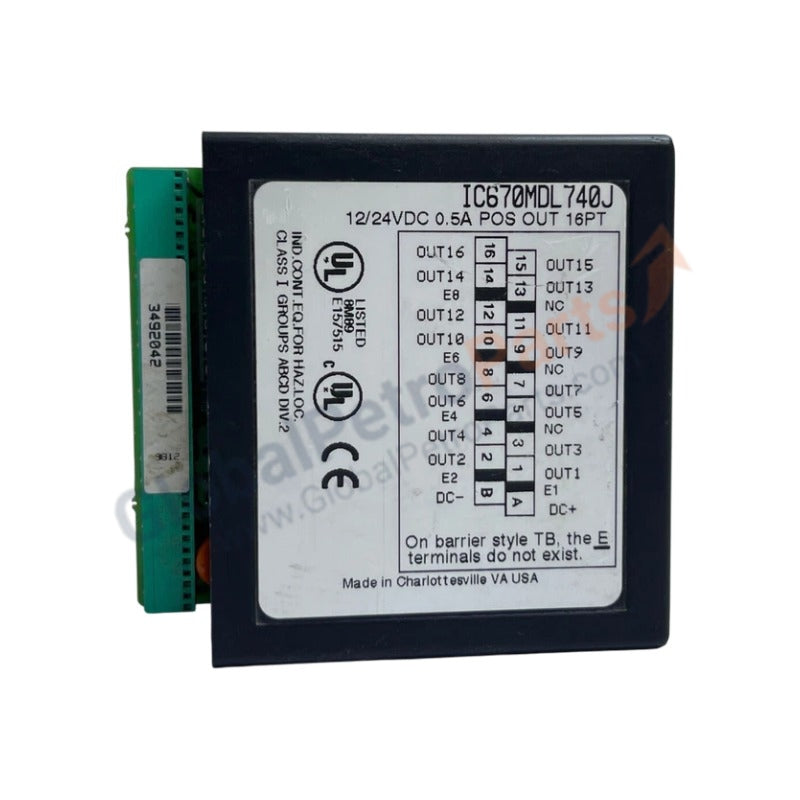

The GE Fanuc IC670MDL740J serves as a high-density discrete output interface within the GE Field Control distributed I/O architecture. This module provides 16 sourcing output points designed to drive 24 VDC field loads such as solenoids, pilot lights, and small relay coils. As a key component in decentralized automation, the IC670MDL740J converts logic commands from the Bus Interface Unit (BIU) into physical switching actions. This 100% Brand New original module features advanced electronic protection and high-speed switching capability, ensuring the responsive performance required for precision packaging, material handling, and assembly applications.

Technical Specifications

The IC670MDL740J utilizes solid-state switching technology and integrated diagnostic monitoring to manage DC field devices:

• Model: IC670MDL740J

• Brand: GE Fanuc (General Electric)

• Series: Field Control

• Condition: 100% Brand New Original

• Output Type: Discrete DC Output (Sourcing)

• Number of Points: 16 Points (2 groups of 8)

• Operating Voltage Range: 18 to 30 VDC

• Output Current: 0.5 Amps maximum per point

• Total Module Current: 8.0 Amps maximum (Subject to temperature derating)

• Inrush Current: 2.0 Amps for 10ms

• Off-state Leakage: 1.0 mA maximum

• Isolation: 1500V AC between field-side and logic-side

• Operating Temperature: 0 to 60 °C (32 to 140 °F)

Engineering Advantages

The GE IC670MDL740J delivers targeted technical solutions for distributed I/O infrastructure and maintenance:

• Integrated Electronic Short-Circuit Protection: The module incorporates smart circuitry that detects overcurrent conditions on a per-group basis. If a field-side short circuit occurs, the module protects the internal power transistors and communicates the fault to the central PLC, preventing hardware damage and identifying the failure point.

• Reduced Wiring Footprint: By housing 16 points in a compact Field Control module, the IC670MDL740J maximizes cabinet density. This allows engineers to place I/O closer to the machine, significantly reducing the volume of copper cabling and lowering overall installation costs.

• Maintenance-Friendly Design: The module utilizes a "plug-in" architecture on a separate terminal block (IC670CHSxxx). Maintenance personnel can "Cold-Swap" the electronics in seconds without touching the field wiring, which eliminates re-wiring errors and minimizes production downtime.

• High-Speed Signal Response: Optimized for high-throughput machinery, the IC670MDL740J provides rapid on/off response times. This determinism ensures that actuators and valves trigger precisely according to the PLC scan, maintaining synchronization in high-speed motion loops.

FAQs

• Does the IC670MDL740J support sinking output logic?No. The IC670MDL740J is a sourcing (positive logic) module. It switches the positive side of the 24VDC supply to the load. If your application requires sinking logic, you must select a different module specifically designed for that electrical configuration.

• What is the significance of the "J" revision suffix?The "J" suffix represents a specific hardware revision in the GE manufacturing cycle. Revision J modules typically offer improved component longevity and are fully backward compatible with older Field Control stations, provided the Bus Interface Unit (BIU) firmware supports the module's diagnostic features.

• Do I need to fuse each individual output point?While the module includes group-level electronic protection, GE recommends branch circuit fusing for individual outputs in critical applications. This ensures that a failure in one field device does not potentially trip the electronic protection for the entire group of eight points.

• Why is buying "Brand New" original stock vital for output modules?Output modules utilize power transistors that degrade due to thermal stress and electrical surges. Refurbished units often contain stressed components that may fail under full load. Only 100% Brand New units guarantee the factory-rated current capacity and internal diagnostic integrity required for industrial safety.
