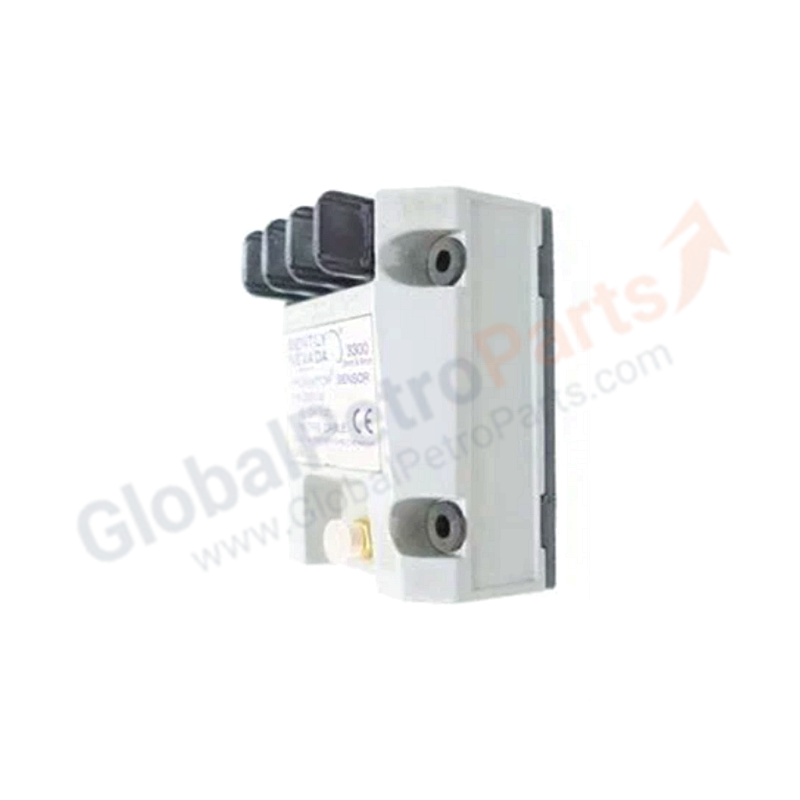

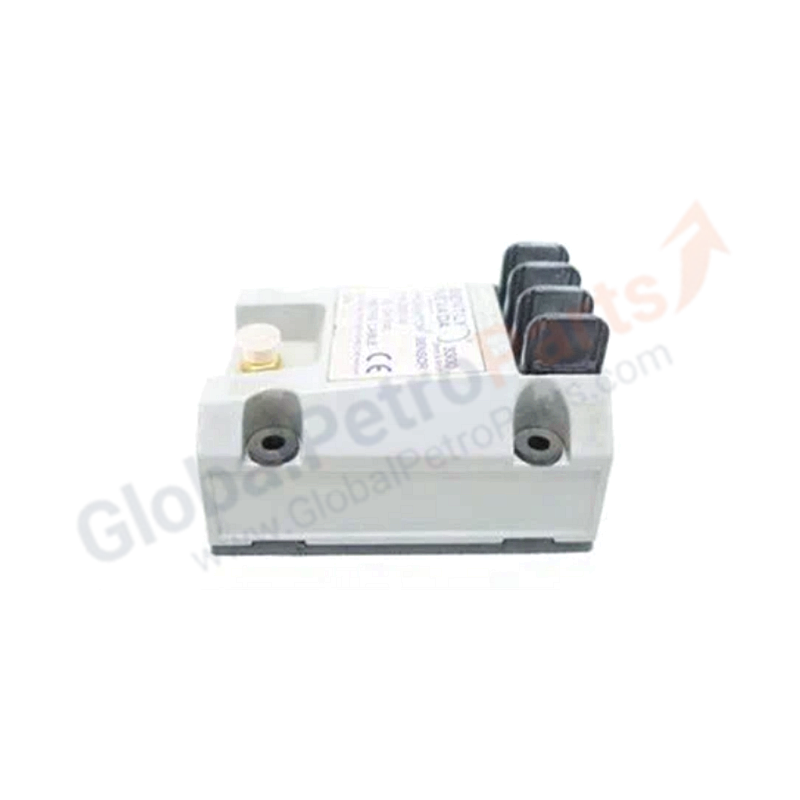

GE Bently Nevada 330100-50-05 Proximitor Sensor

Product Summary

The Bently Nevada 330100-50-05 is a 3300 XL 8 mm Proximitor Sensor developed for non-contact machinery condition monitoring. Operating via eddy current technology, it provides high-precision measurements of static position and dynamic vibration for critical industrial machinery, including fluid-film bearing units, high-speed turbine shafts, and Keyphasor phase reference installations.

Core Specifications

• Model Number: 330100-50-05
• Sensor Type: 3300 XL 8 mm Proximitor Sensor
• Power Input Range: -17.5 VDC to -26 VDC (-24 VDC nominal)
• Current Consumption: 12 mA maximum
• Linear Range: 2.0 mm (80 mils)
• Output Resistance: 50 Ω
• System Length Configuration: 5.0 meters (16.4 feet)
• Agency Approvals: Option 05 (Multiple Approvals including customized regional or specialized safety certifications for hazardous environments)

Performance & Signal Characteristics

• Scale Factor: 7.87 V/mm (200 mV/mil) nominal Incremental Scale Factor (ISF)
• Supply Voltage Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Frequency Response: 0 to 10 kHz (+0, -3 dB)
• Target Calibration: Calibrated for standard AISI 4140 steel targets
• Signal Integrity: Integrated RFI/EMI immunity and CE compliance to prevent data corruption in industrial electrical noise

Hardware Integration & Deployment

• Physical Design: Housed within a corrosion-resistant A308 aluminum case
• Mounting Support: Compatible with DIN-rail installation or high-density panel-mount plates using SpringLoc terminal strips
• Connection Interfaces: Features built-in ClickLoc miniature coaxial connectors
• System Interchangeability: Interchanges directly with standard 3300-series 5 mm probes, 3300 XL 8 mm probes, and 75 Ω triaxial FEP extension cables without manual calibration

Environmental Limits

• Operating Temperature: -52°C to +100°C (-62°F to +212°F)
• Storage Temperature Range: -52°C to +105°C (-62°F to +221°F)
• Humidity Resistance: Sealed construction limits Average Scale Factor (ASF) shifts to under 3% at 93% relative humidity
