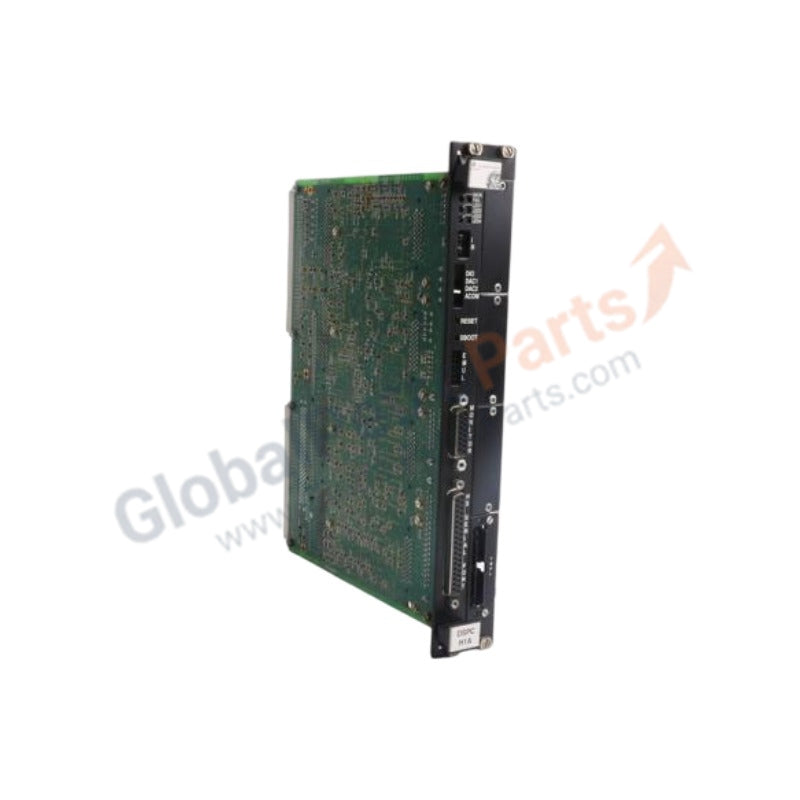

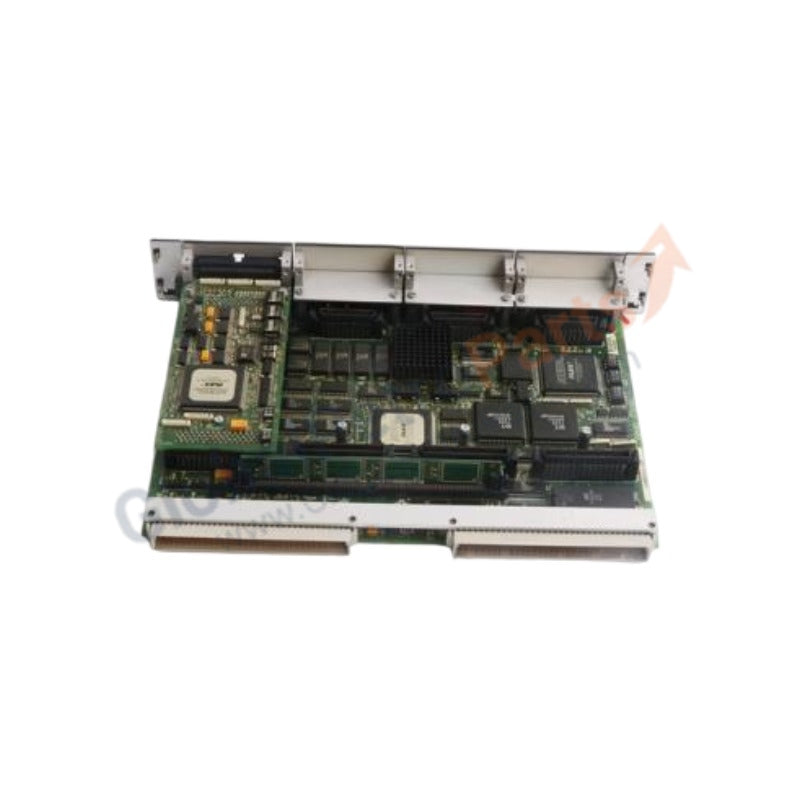

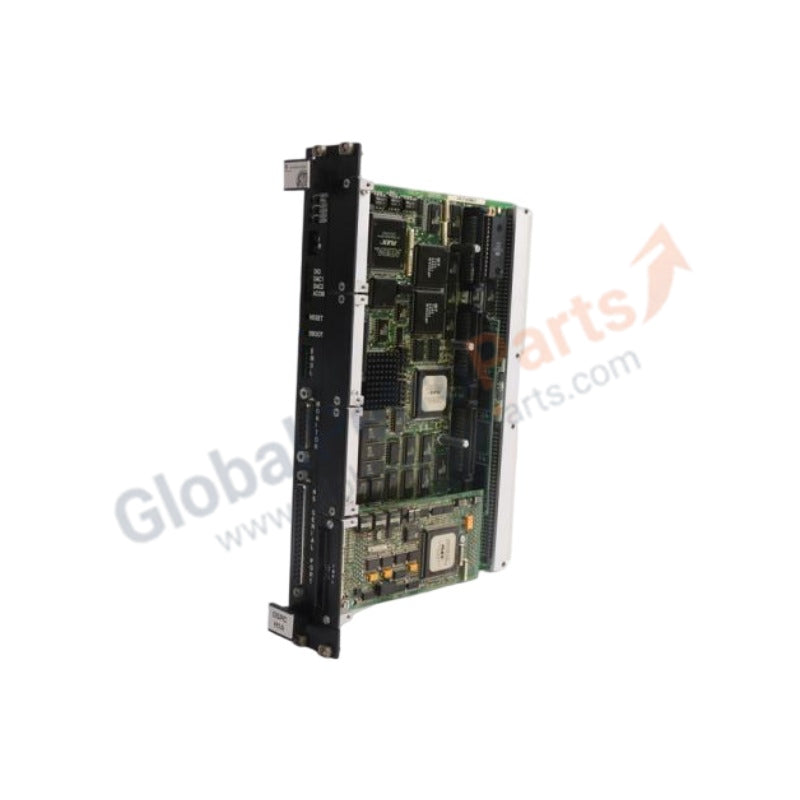

GE DS200DSPCH1ADA Mark V Digital Signal Processor Control Board

Product Overview

The GE DS200DSPCH1ADA (DS200DSPCH1A) serves as the primary Digital Signal Processor (DSP) control hub for GE Mark V turbine and drive systems. This board executes high-speed computational algorithms necessary for real-time motor control and power conversion. It functions as the "brain" of the drive, processing feedback signals from the power bridge and generating precise gate-drive commands. We supply this unit as 100% Brand New and Original, ensuring optimal computational integrity and system longevity in demanding industrial environments.

Technical Specifications

Engineering Advantages

The DS200DSPCH1ADA offers distinct technical benefits for complex power systems:

• Advanced Real-Time Processing: Dual DSPs calculate vector control loops and torque regulators at microsecond intervals, providing superior motor response compared to standard PLC-based systems.

• EMI/RFI Hardening: GE engineers designed this board with multi-layer PCB shielding to resist electromagnetic interference common in high-voltage drive cabinets.

• Seamless Integration: The "ADA" revision indicates the latest hardware compatibility, allowing for direct drop-in replacement of older "A" or "AD" versions without modifying existing cabinet wiring.

• Precision Diagnostics: The integrated RS-232 port facilitates local troubleshooting via a PC, allowing engineers to monitor internal registers and fault codes during commissioning.

Installation & Maintenance Guidelines

To ensure safe operation and prevent hardware damage, follow these engineering protocols:

1. ESD Protection: Always wear a grounded wrist strap. The DSP chips on this board remain highly sensitive to static discharge.

2. Firmware Verification: Ensure you transfer the EPROM chips from the old board to the new DS200DSPCH1ADA if the new unit does not come pre-configured with your specific site application software.

3. Connector Seating: Verify that all ribbon cables click firmly into place. Loose connections on the DSP board often trigger "Control Hardware Fault" alarms in the Mark V system.

FAQs

• Is the DS200DSPCH1ADA compatible with older Mark V drives?

  Yes. This model serves as the current functional replacement for the DS200DSPCH1A series. The "ADA" suffix represents the most recent hardware revision, incorporating improved component reliability while maintaining backward compatibility.

• Does this board require software programming before use?

  The board typically requires the installation of site-specific EPROMs (firmware). If you are replacing an existing unit, you must move the socketed chips from your original board to the new DS200DSPCH1ADA to maintain your drive parameters.

• What is the primary cause of DSP board failure?

  Most failures result from cooling fan blockage leading to thermal stress or power surges through the I/O lines. Regularly cleaning drive filters significantly extends the life of this control board.
