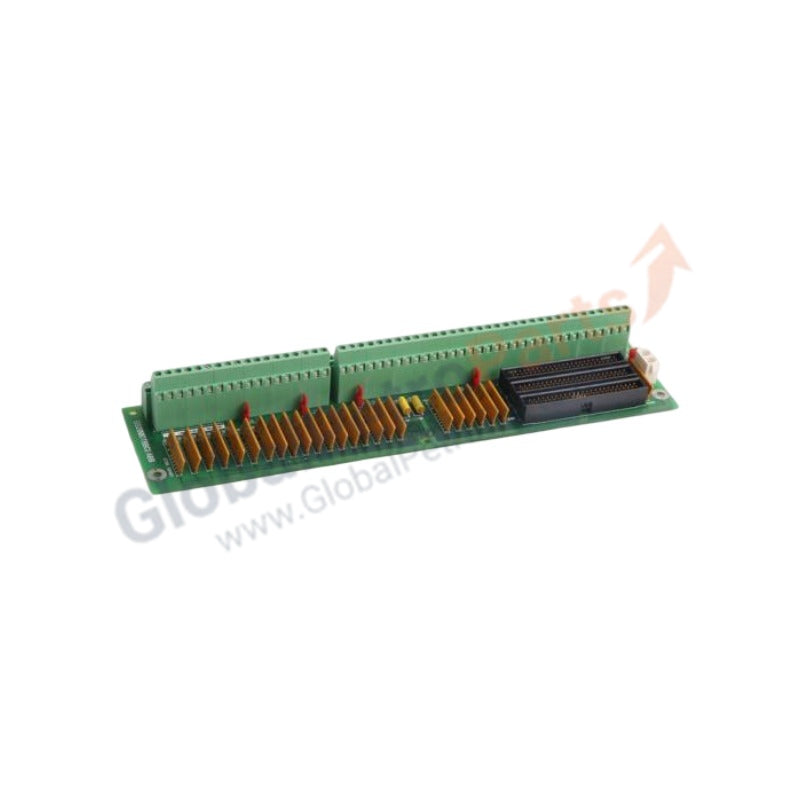

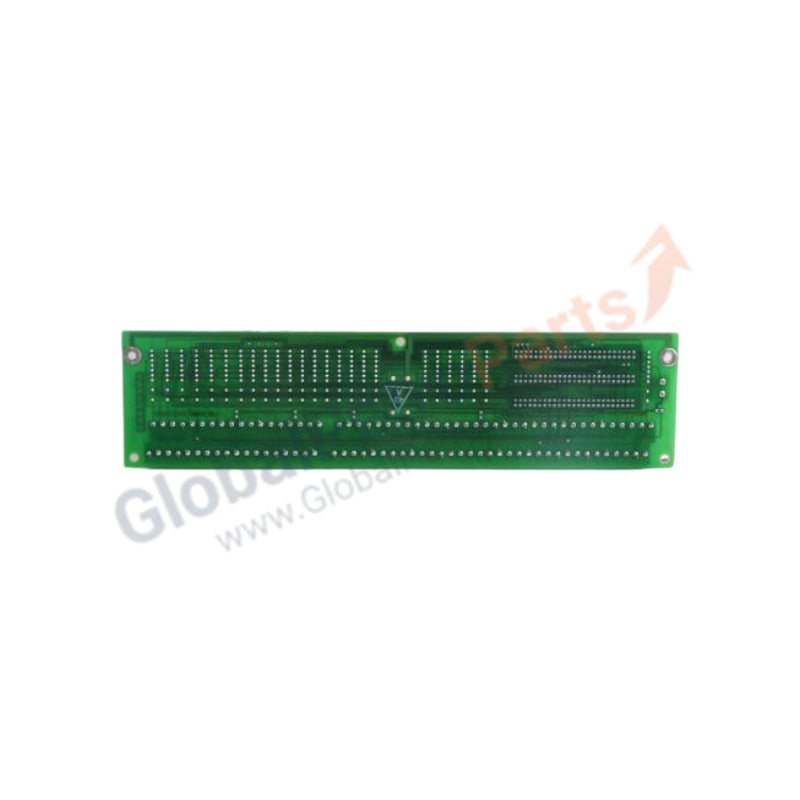

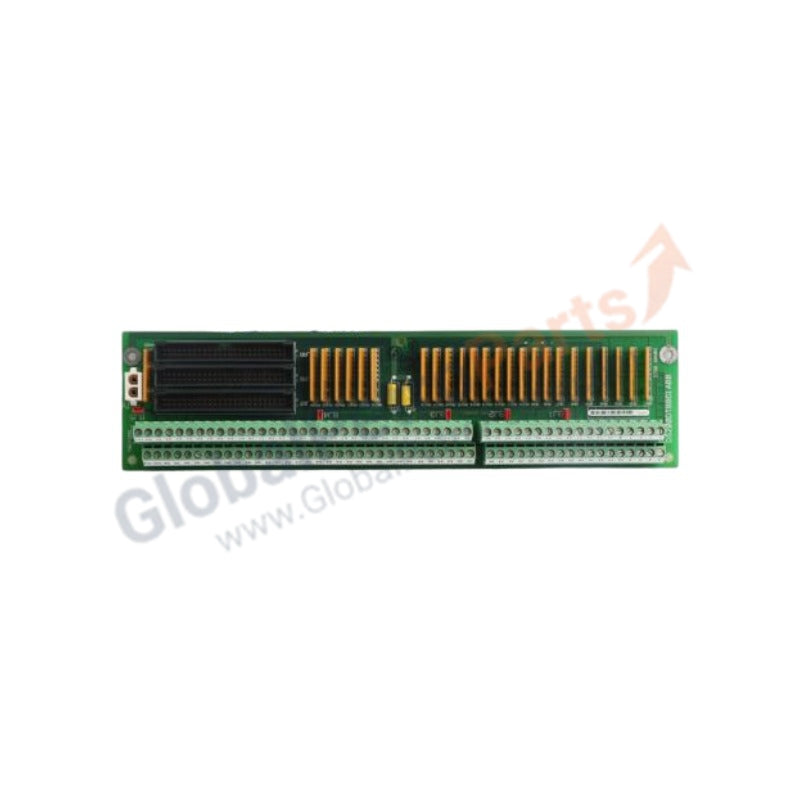

GE |DS200DTBBG1A|Mark V Digital Terminal Board

Product Overview

The DS200DTBBG1A (DTBB) functions as a high-density Digital Terminal Board within the GE Mark V Speedtronic control system. It serves as the primary interface for digital contact inputs and outputs, bridging field-side switches, pushbuttons, and relay contacts with the control processors. The board facilitates signal conditioning and galvanic isolation, protecting the sensitive logic of the , , and  cores from field disturbances. This unit arrives as 100% Brand New and original, ensuring the circuit integrity and response speeds required for critical turbine sequencing and protection.

Technical Specifications

The DS200DTBBG1A architecture supports high-capacity termination and deterministic signal routing.

Engineering Advantages

• Superior Signal Filtering: The DTBB board incorporates passive RC filtering on every input channel. These circuits suppress mechanical contact bounce and electrical transients, preventing false triggers and "ghost" alarms in the turbine control sequence.

• High-Density Cabinet Optimization: This board maximizes available rack space by providing centralized termination for a large volume of field wiring. The clearly labeled terminal blocks accelerate wiring tasks and reduce the probability of cross-wiring errors.

• Industrial-Grade Isolation: Hardware-based isolation barriers shield the core processing boards from high-voltage surges originating in the field. This ensures that a localized fault in a field limit switch or solenoid does not propagate to the main VME backplane.

• High-Vibration Resilience: GE engineers designed the DTBB with reinforced trace layouts and robust terminal mounting. This allows the board to maintain electrical continuity in turbine enclosures subject to constant mechanical resonance and high-frequency vibration.

Installation and Field Guidelines

1. Wiring and Shielding: Use shielded twisted-pair cables for all field digital inputs. Terminate the shields at the designated ground bar to prevent electromagnetic interference (EMI) from inducing noise onto the signal paths.

2. Terminal Block Maintenance: Periodically check the torque on terminal screws. Thermal cycling in industrial environments often causes screw-down connections to loosen over time, which leads to intermittent "Contact Open" or "I/O Fault" alarms.

3. Ribbon Cable Security: The board connects to the I/O processors via 50-pin ribbon cables. Always engage the plastic locking tabs on the headers; loose ribbon cables are a frequent cause of communication timeouts and system-level hardware alarms.

FAQs

Q: What is the functional difference between the DS200DTBBG1A and the DTBC model?

A: While both are digital terminal boards, the DTBB (G1A) typically features a different physical layout or specific group of input/output assignments optimized for particular Mark V rack configurations. Always consult your unit's Wiring Diagram (W/D) to ensure the board matches the intended slot.

Q: Can I replace a DS200DTBBG1A with a "G1ABB" revision?

A: Yes. The "G1ABB" is a later hardware revision of the same functional group. It provides backward compatibility while offering improved component tolerances and circuit artwork, making it a suitable drop-in replacement.

Q: Does this board require field calibration?

A: No. The DS200DTBBG1A is a digital interface board and does not contain analog scaling components that require calibration. It functions as a "pass-through" and conditioning device for binary signals.
