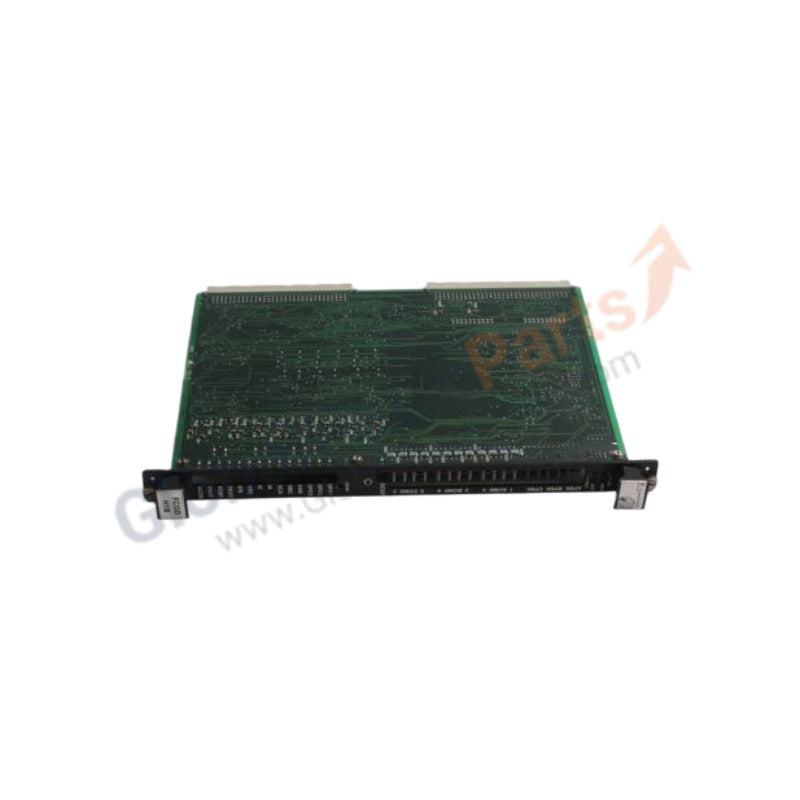

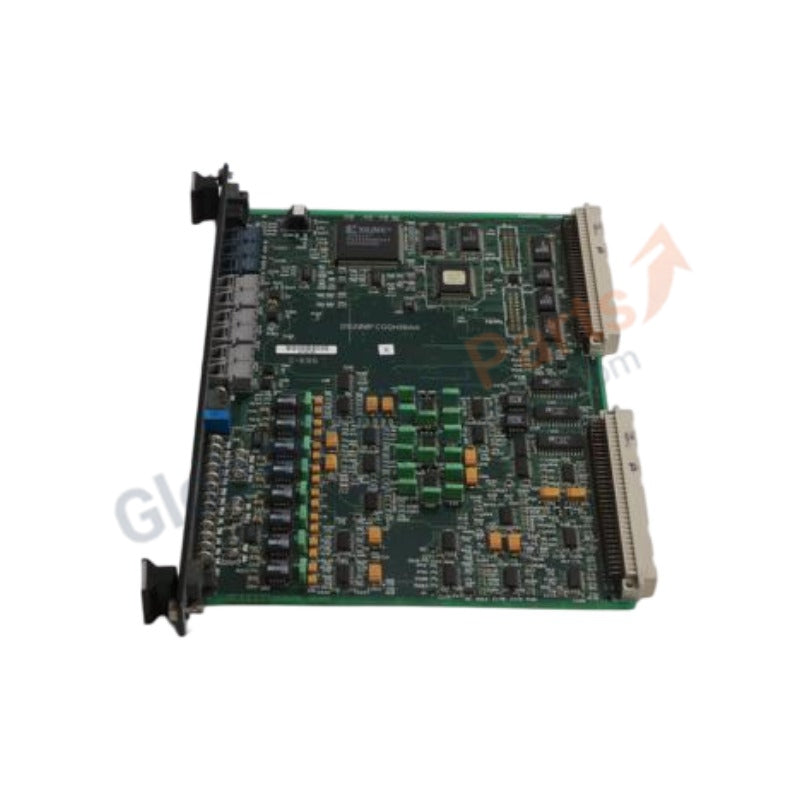

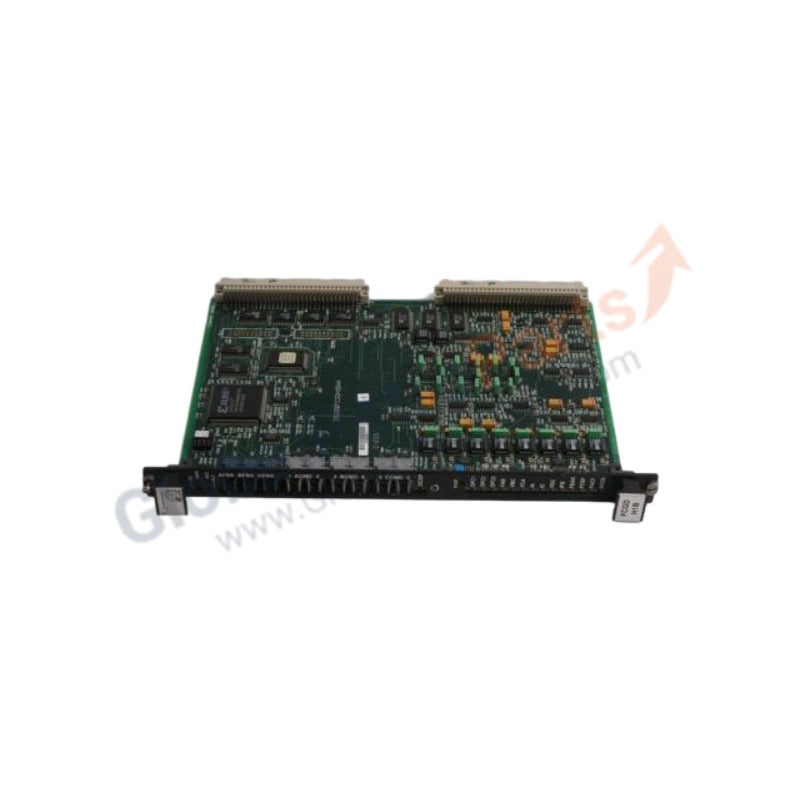

GE DS200FCGDH1BAA Mark V Fan Control and Driver Board

Product Overview

The GE DS200FCGDH1BAA (DS200FCGDH1B) functions as the primary driver and control interface for the cooling systems within GE Mark V and Innovation Series drive cabinets. This Fan Control and Driver (FCGD) board regulates the operation of internal cooling fans, ensuring the drive maintains optimal operating temperatures during high-load power conversion. We supply this component as 100% Brand New and Original, providing the thermal security necessary to prevent localized overheating of high-power SCRs and processors. By monitoring cabinet temperatures and executing precise driver logic, the DS200FCGDH1BAA extends the lifespan of the entire control rack.

Technical Specifications

Engineering Advantages

The DS200FCGDH1BAA addresses specific technical challenges regarding thermal regulation and hardware protection:

• Intelligent Thermal Response: The board utilizes feedback from cabinet RTDs or thermocouples to adjust fan speeds. This active regulation prevents the buildup of thermal pockets that typically lead to "Nuisance Over-Temperature Trips" in high-horsepower drive applications.

• Revision "H1BAA" Ruggedization: This revision features high-current traces and reinforced driver transistors. These components withstand the repetitive in-rush currents associated with starting large cabinet fans, offering superior durability compared to earlier "H1A" versions.

• EMC Hardened Design: GE engineers designed the FCGD with integrated suppression circuits to neutralize electrical noise generated by the fan motors. This ensures that the high-frequency switching of the cooling system does not interfere with the sensitive analog signals on the neighboring processor boards.

• Integrated Fault Diagnostics: The board monitors the current draw of each connected fan. It identifies stalled motors or open-circuit conditions immediately, reporting these faults to the Main Control Processor to initiate protective action before a thermal failure occurs.

Installation & Thermal Safety Protocols

To maintain the 100% Brand New warranty and ensure maximum cooling efficiency, follow these engineering standards:

1. Cable Integrity: Inspect the power headers for signs of oxidation or loose pins. High-current fan loads require a low-impedance connection; loose terminals on the FCGD board can lead to localized heating and board failure.

2. Orientation and Airflow: Verify that the board sits securely on its standoffs. Proper physical alignment ensures that the board's own heat sinks receive adequate airflow from the cabinet's internal circulation.

3. Fuse Inspection: Before commissioning, check the on-board fuses. These protect the drive's control power supply from shorts within the fan motor windings. Always replace fuses with identical fast-acting industrial ratings.

FAQs

• Can the DS200FCGDH1BAA replace a DS200FCGDH1B?

  Yes. The "BAA" suffix indicates the latest stable hardware revision. It provides full backward compatibility for all FCGDH1 series boards, utilizing modernized components that offer better resistance to the vibration found in turbine enclosures.

• Does this board require firmware programming?

  No. The DS200FCGDH1BAA is a driver-level hardware board. It executes logic based on hardware inputs and does not contain user-programmable EPROMs. However, you must ensure the jumper settings match your specific fan voltage and control configuration.

• What are the symptoms of a failing Fan Control board?

  The most common indicators include "Cabinet Over-Temperature" alarms, cooling fans failing to start during high-load operation, or blown control power fuses. If the fans run continuously at full speed regardless of temperature, the driver transistors on the FCGD board may have failed in a shorted state.
