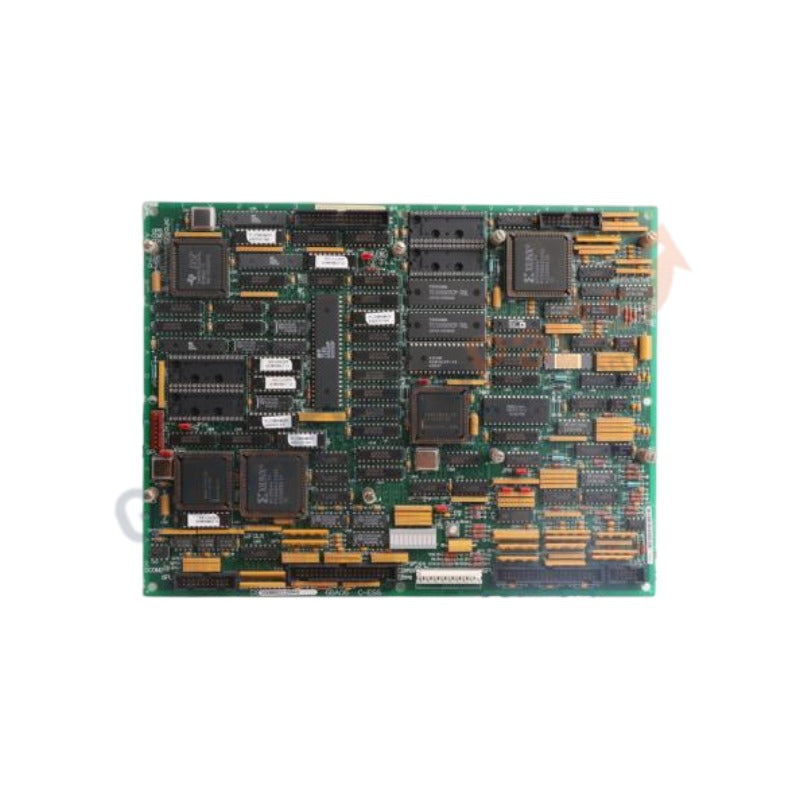

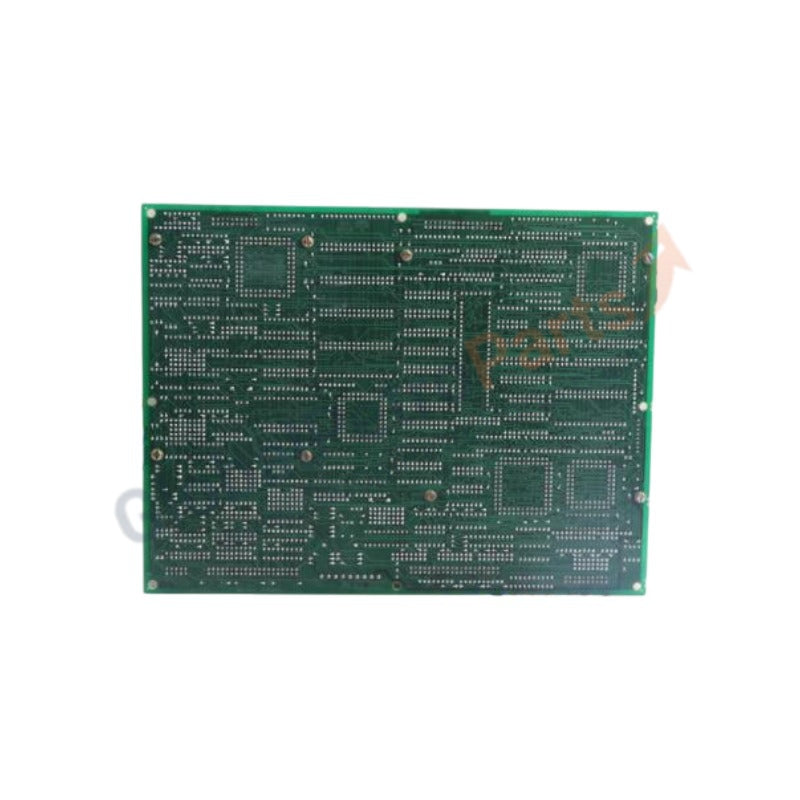

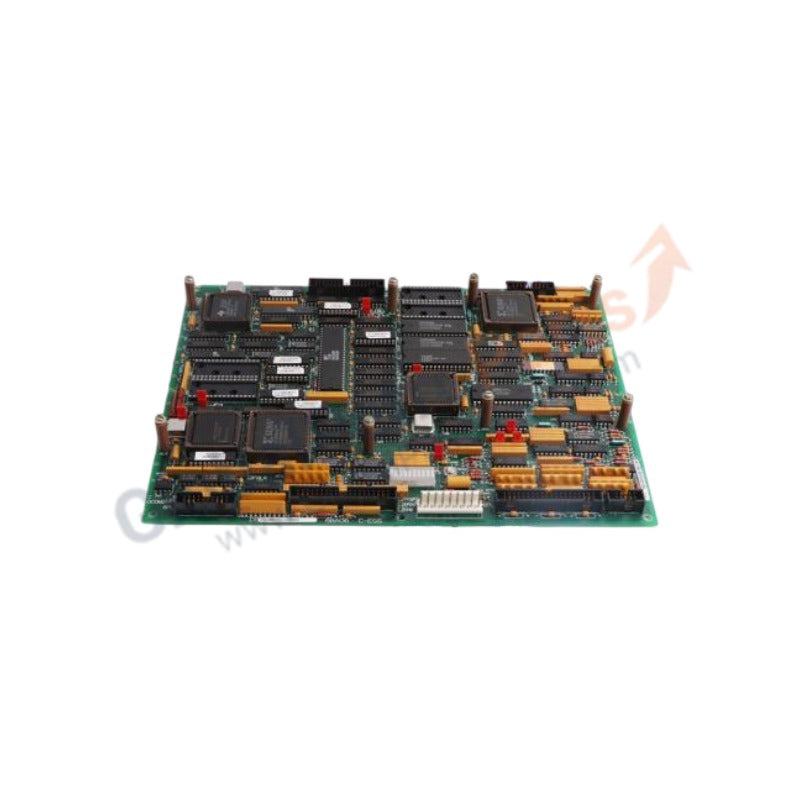

GE DS200SDCCG5A Mark V Drive Control Board

Product Overview

The GE DS200SDCCG5A (DS200SDCCG5A) serves as the primary processing intelligence for GE Mark V and DC2000 drive systems. This Drive Control Card executes the essential motor control algorithms, including speed regulation, torque control, and current limit processing. We supply this module as 100% Brand New original equipment. The DS200SDCCG5A integrates three distinct microprocessors to manage localized drive logic while simultaneously handling high-speed LAN communications (ARCNET) and peripheral I/O. By centralizing these complex computational tasks, the board ensures precise synchronization of power conversion bridges in demanding industrial environments such as steel mills, paper plants, and turbine auxiliary systems.

Technical Specifications

The DS200SDCCG5A utilizes a multi-processor architecture and a dense array of programmable logic to maintain deterministic control cycles.

Engineering Advantages

The DS200SDCCG5A overcomes specific industrial drive challenges through advanced circuit engineering:

• Parallel Processing Efficiency: The card distributes tasks across three dedicated microprocessors. The Master Control Processor (MCP) manages the overall drive state, while the Motor Control Processor (PCP) handles the microsecond-level calculations required for pulse width modulation (PWM) and gate firing. This separation prevents communication traffic from interfering with motor stability.

• Ruggedized Signal Processing: GE engineers designed the SDCCG5A with extensive multi-layer ground planes and noise-filtering capacitors. These features neutralize electromagnetic interference (EMI) generated by high-power SCR (Silicon Controlled Rectifier) switching, ensuring the digital logic remains stable in high-noise electrical cabinets.

• Versatile Feedback Compatibility: The board supports multiple feedback architectures, including digital tachometers and analog resolvers. This allows engineers to integrate the DS200SDCCG5A into various legacy or modern motor configurations without requiring external signal converters.

• Advanced Diagnostic Visibility: The card features an onboard alphanumeric display and diagnostic LEDs. These tools provide real-time fault codes and LAN status updates, allowing maintenance teams to identify drive-level or network-level failures instantly without specialized external software.

FAQs

• How does the "G5A" revision differ from older versions like "G1A" or "G2A"?

  The G5A represents a high-performance revision that includes updated processing components and enhanced memory capacity. While it maintains physical compatibility, you must ensure that your existing drive software and EPROM firmware versions support the G5A hardware architecture to avoid initialization errors.

• Does this board require manual jumper configuration before installation?

  Yes. The DS200SDCCG5A uses hardware jumpers (J-jumpers) to define critical settings such as oscillator frequency, feedback types, and voltage levels. You must match these jumpers exactly to the configuration of the original board or the system elementary drawings to ensure correct motor regulation.

• What is the correct procedure for replacing the EPROMs?

  You must transfer the socketed EPROMs (containing site-specific logic) from your old board to the new DS200SDCCG5A. Use a specialized chip puller tool and follow strict ESD (Electrostatic Discharge) protocols to prevent damaging the sensitive firmware chips or the board’s CMOS logic.

• What is the function of the J1 through J10 headers?

  These high-density ribbon cable headers facilitate communication with the power supply board, the gate drive boards, and the external I/O terminal blocks. Always verify that all cables are fully seated and locked with the retaining tabs to prevent intermittent signal loss due to vibration.
