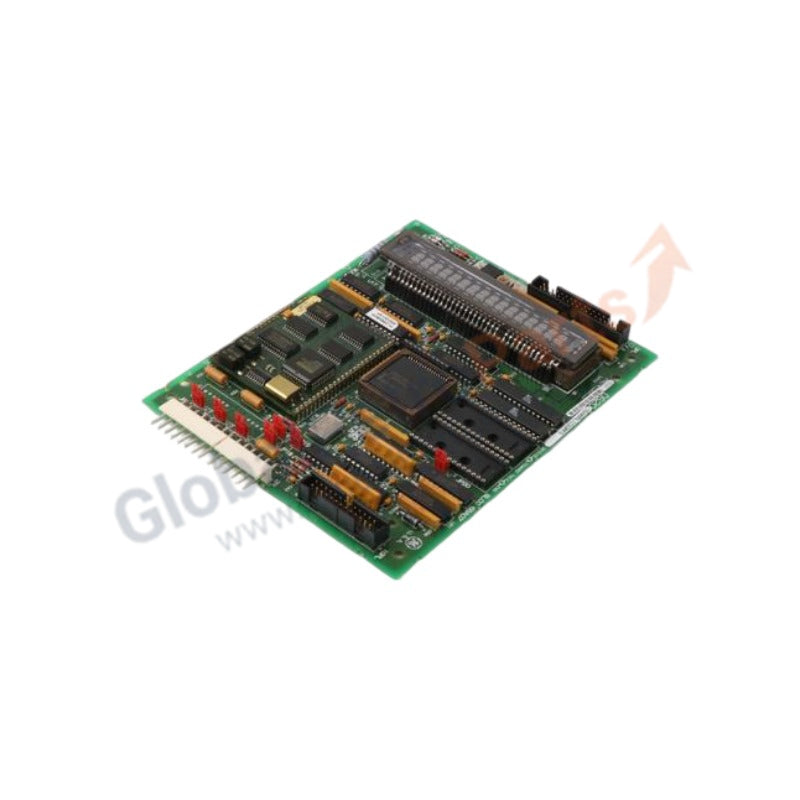

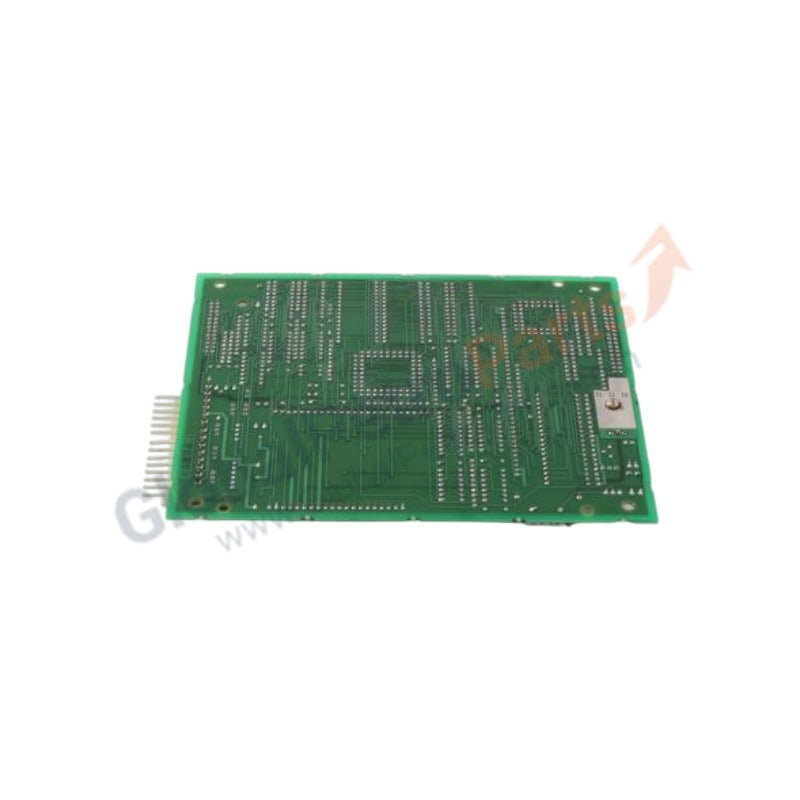

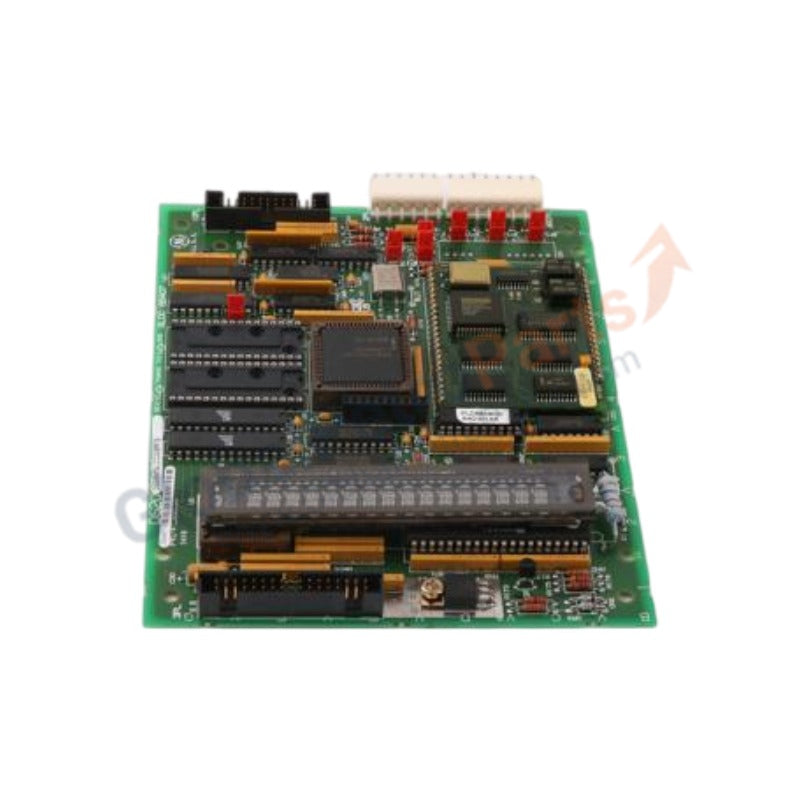

GE DS200SLCCG3AFG Mark V LAN Communications Board

Product Overview

The GE DS200SLCCG3AFG (DS200SLCCG3A) functions as the primary LAN Communications and Drive Control processor for the GE Mark V and Innovation Series systems. This SLCC board manages high-speed data exchange via ARCNET and DLAN protocols, coordinating information flow between the drive control processors and the operator interface (HMI). We provide this component as 100% Brand New and Original, ensuring your control architecture utilizes factory-certified hardware for high-bandwidth, deterministic communication. By offloading complex network management from the core drive logic, the DS200SLCCG3AFG maintains optimal system responsiveness during high-traffic operational states.

Technical Specifications

Engineering Advantages

The DS200SLCCG3AFG delivers specialized technical solutions for complex industrial network environments:

• Asynchronous Network Management: The board utilizes a dedicated 80C186 microprocessor to manage ARCNET and DLAN traffic. This architecture ensures that communication overhead never interrupts the millisecond-precision timing required for motor speed and torque control loops, preventing "jitter" in the control response.

• Revision "G3AFG" Robustness: The "G3" designation indicates a later generation hardware design with improved signal integrity. This revision features hardened decoupling capacitors and optimized PCB trace routing to neutralize the electromagnetic interference (EMI) found in high-power drive cabinets.

• Integrated Real-Time Diagnostics: The on-board 14-segment LED display provides immediate visual feedback of the board's health. Engineers can identify initialization errors, LAN ID conflicts, or hardware parity faults directly from the board face, significantly reducing the Mean Time to Repair (MTTR).

• Dual-Protocol Support: The board supports both ARCNET for high-speed peer-to-peer data sharing and DLAN for drive-specific control networking, allowing for a consolidated communication footprint within the Mark V rack.

Installation & System Configuration Protocols

To maintain the 100% Brand New warranty and ensure proper network synchronization, adhere to these engineering standards:

1. EPROM/EEPROM Migration: The SLCC board requires site-specific configuration software stored in socketed chips. You must carefully transfer these chips from your original board to the new DS200SLCCG3AFG. Observe the notch orientation on each chip to prevent logical failure or hardware damage.

2. Jumper Synchronization: Numerous hardware jumpers define the board's LAN ID, signal levels, and terminal resistor settings. Match the jumper positions on the new board exactly to the configuration of the unit being replaced to avoid network collisions or signal reflections.

3. ESD Handling: The communication processors on the SLCC are highly susceptible to static discharge. Utilize a grounded wrist strap and anti-static mat throughout the installation process to prevent "latent" damage that could cause intermittent network drops.

FAQs

• Can the DS200SLCCG3AFG replace an older DS200SLCCG1A or G2A?

  Yes. The "G3" series serves as the advanced successor to the G1 and G2 variants. It maintains the identical mechanical footprint and electrical headers while offering modernized components for better thermal stability and noise immunity.

• Does this board ship with my turbine's specific software?

  The hardware is brand new and "blank." The functional logic resides in the socketed EPROMs. You must transfer your existing site-specific chips to this new board for it to communicate with your specific turbine or drive system.

• What are the primary indicators of a failing SLCC board?

  Typical signs include "Communication Timeout" alarms at the HMI, the LED display failing to complete its "Ready" sequence, or persistent "Node Offline" status in the ARCNET diagnostic utility.
