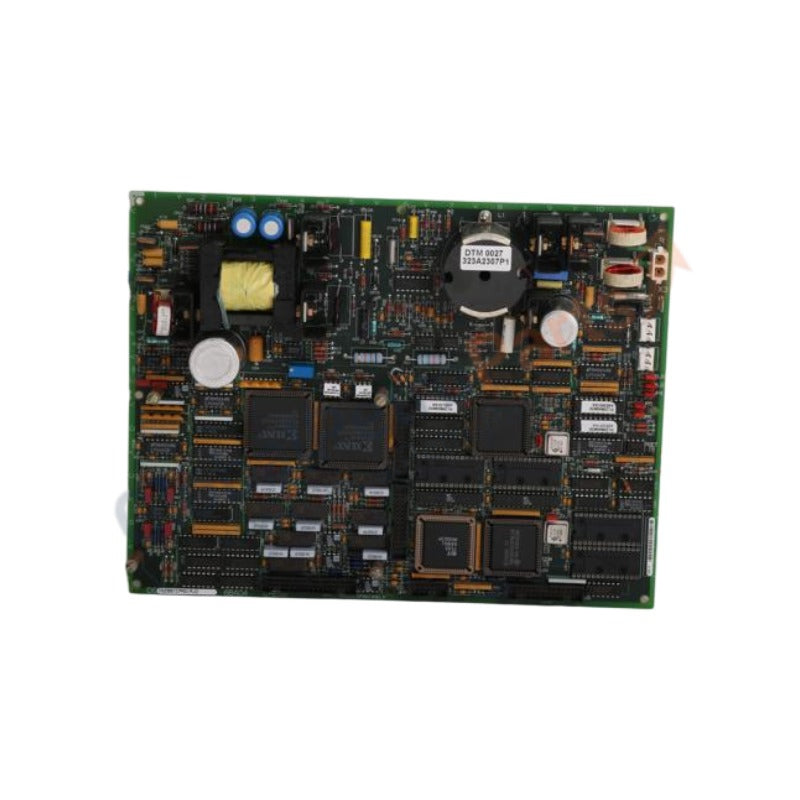

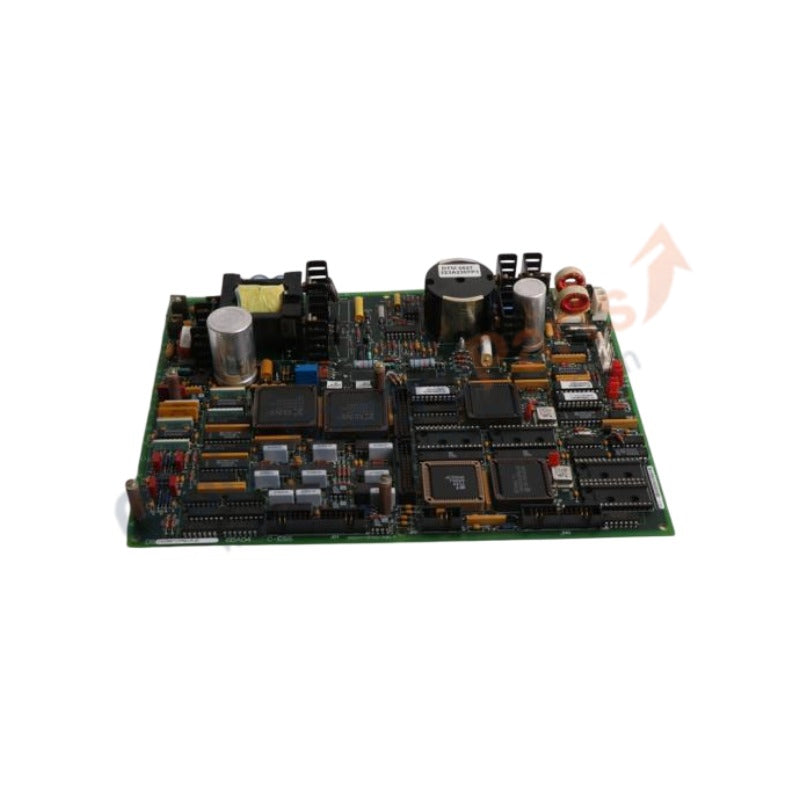

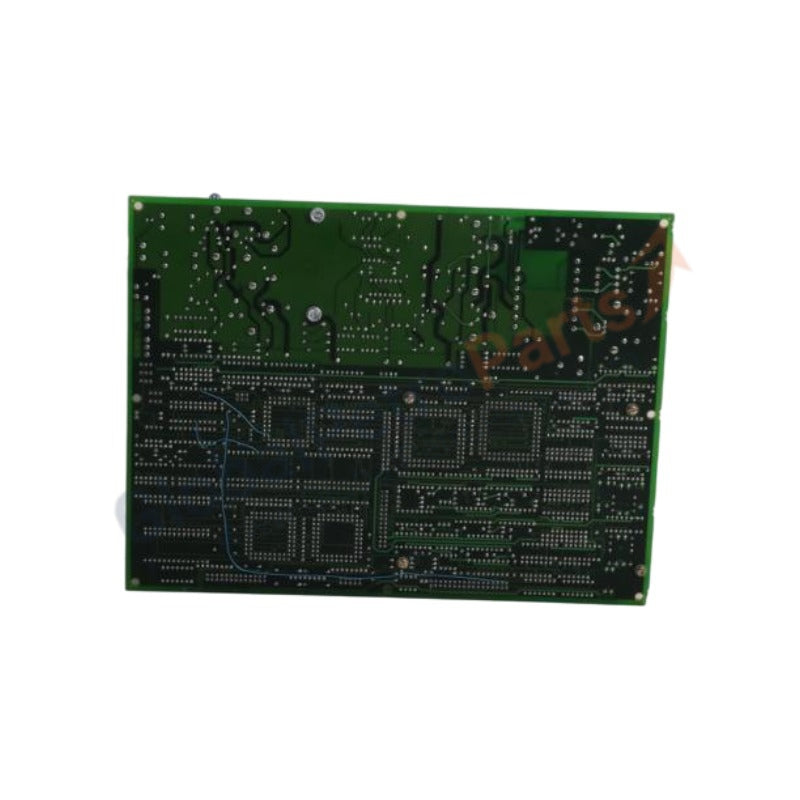

GE | DS200TCPAG1AJD Mark V Turbine Control Processor Board

Product Overview

The DS200TCPAG1AJD (DS200TCPAG1AJD) functions as the primary computational engine within the GE Speedtronic Mark V turbine control system. This processor board executes the core control algorithms, managing critical parameters such as fuel flow, temperature regulation, and synchronization for gas and steam turbines. It coordinates communication between the I/O modules and the operator interface, ensuring real-time response to transient process conditions. This unit arrives as 100% Brand New and original, providing the high-speed logic processing required to maintain turbine stability and safety in demanding utility and industrial power plants.

Technical Specifications

The DS200TCPAG1AJD features a complex architecture optimized for deterministic execution of control sequences.

Engineering Advantages

• High-Speed Logic Execution: The board processes complex PID loops and protection logic in milliseconds, preventing overspeed or overtemperature conditions before they reach critical thresholds.

• Ruggedized Industrial Design: GE engineers optimized the PCB layout to withstand the high-frequency vibrations and thermal cycling common in turbine enclosures.

• Seamless System Integration: The DS200TCPAG1AJD mounts directly into the Mark V control rack, utilizing high-density ribbon connectors to interface with the STIC and TCEA boards for redundant voting logic.

• Advanced Diagnostics: Integrated LED status indicators provide real-time hardware health monitoring, allowing technicians to identify processor faults or communication drops without external diagnostic tools.

Installation and Field Guidelines

1. Firmware Verification: Ensure the EPROM chips installed on the DS200TCPAG1AJD match the specific software version of your turbine's control sequence. Swapping chips from the old board may be necessary to maintain localized parameters.

2. Electrostatic Discharge (ESD) Protocol: Handle the board only by the edges. Wear a calibrated ESD wrist strap during the entire installation process to protect the logic circuits from static damage.

3. Connector Seating: Verify that the 3PL and STPL cables are fully seated and locked. Loose connections on these high-speed data buses will cause "Processor Reset" or "Communication Lost" alarms.

FAQs

Q: Can the DS200TCPAG1AJD replace an older DS200TCPAG1A board?

A: Yes. The "JD" suffix indicates a specific revision level that typically includes hardware improvements or component updates. It remains backward compatible with the Mark V "A" series architecture, provided the firmware is consistent.

Q: Does the board come pre-loaded with site-specific software?

A: No. This is a brand-new hardware component. You must load your site-specific configuration and turbine control logic (the "Unit" data) via the Mark V  processor or a compatible maintenance PC.

Q: What is the primary cause of processor failure on these modules?

A: Thermal stress and aging capacitors are the leading causes. Replacing an aging board with this brand-new unit eliminates the risk of intermittent logic errors and unexpected turbine trips.
