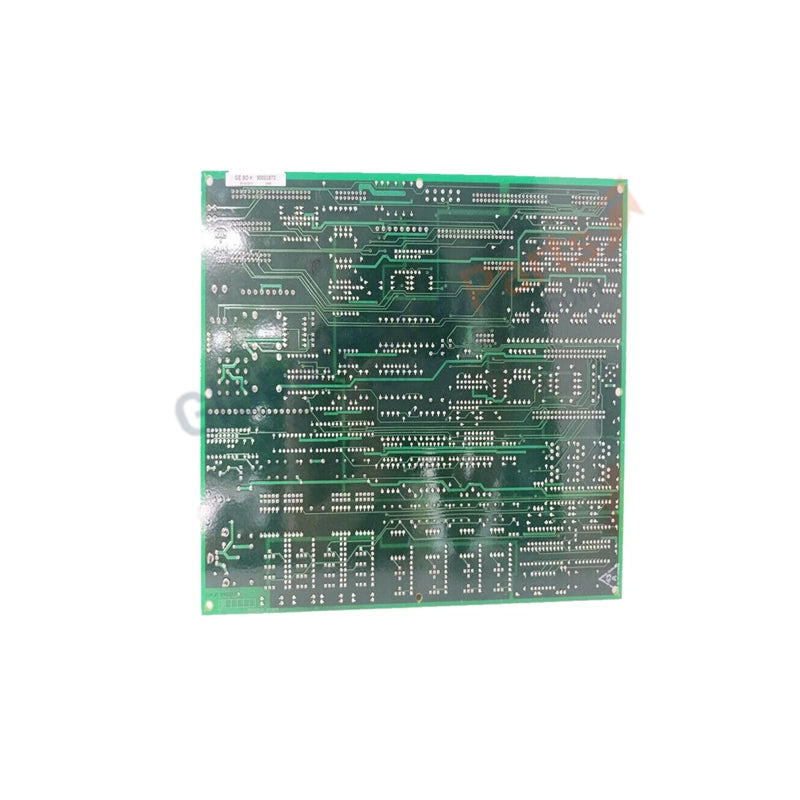

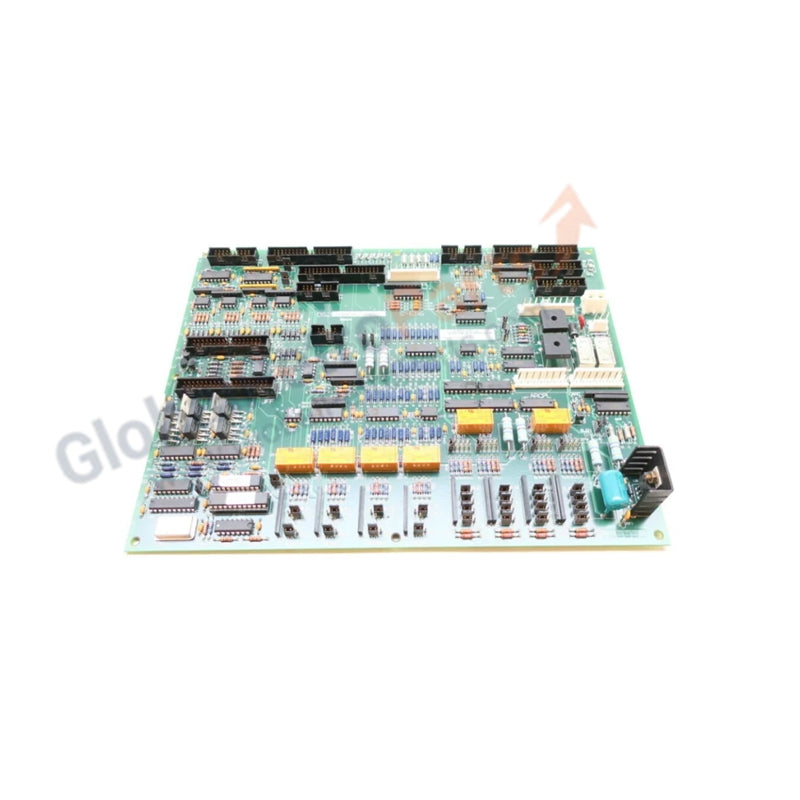

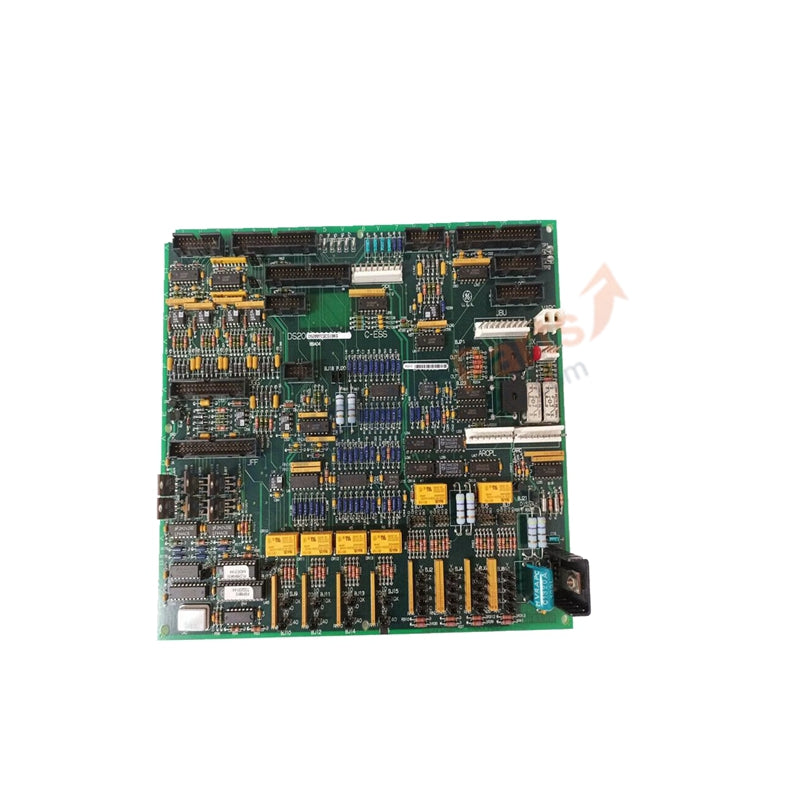

GE DS200TCQCG1BKG Part # DS200TCQCG1BKG Mark V System

GE DS200TCQCG1BKG Mark V Speedtronic RST Overflow Control Board

The DS200TCQCG1BKG (Model: DS200TCQCG1BKG) is a specialized Control Board (TCQC) designed for the General Electric Mark V Speedtronic turbine control system. Often referred to as the RST Overflow Board, the DS200TCQCG1BKG (Part Number: DS200TCQCG1BKG) serves as a critical coordination and signal processing hub within the distributed control architecture. It is responsible for managing high-density communication between the turbine's sensors, actuators, and the core processing electronics. This board is essential for both gas and steam turbine applications where synchronized signal processing across the <R>, <S>, and <T> cores is required to maintain system stability.

Engineering for high-availability power generation, the DS200TCQCG1BKG (Model: DS200TCQCG1BKG) features a multi-layered PCB design equipped with advanced microprocessors and programmable logic. It handles the complex tasks of monitoring combustion, speed, and auxiliary system variables, ensuring that all data is filtered and synchronized before being executed by the turbine's main control logic. This hardware ensures the Expertise and Trustworthiness (E-E-A-T) necessary for critical infrastructure by providing redundant signal paths and robust fault detection mechanisms.

Detailed Technical Specifications

The DS200TCQCG1BKG (Model: DS200TCQCG1BKG) is a rack-mounted module built to withstand the high-vibration and thermal-cycling environments typical of turbine control cabinets.
