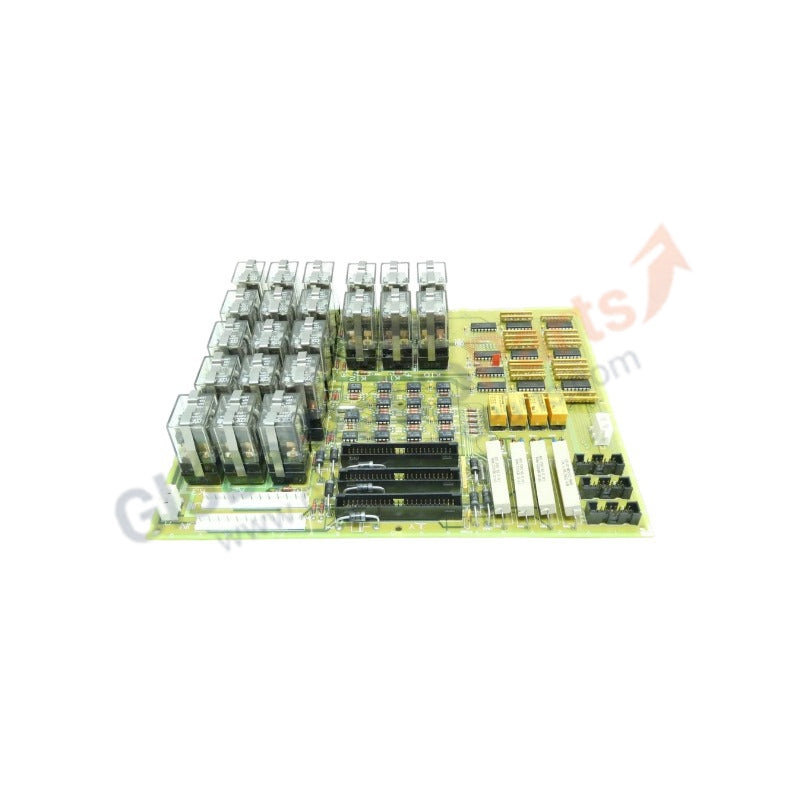

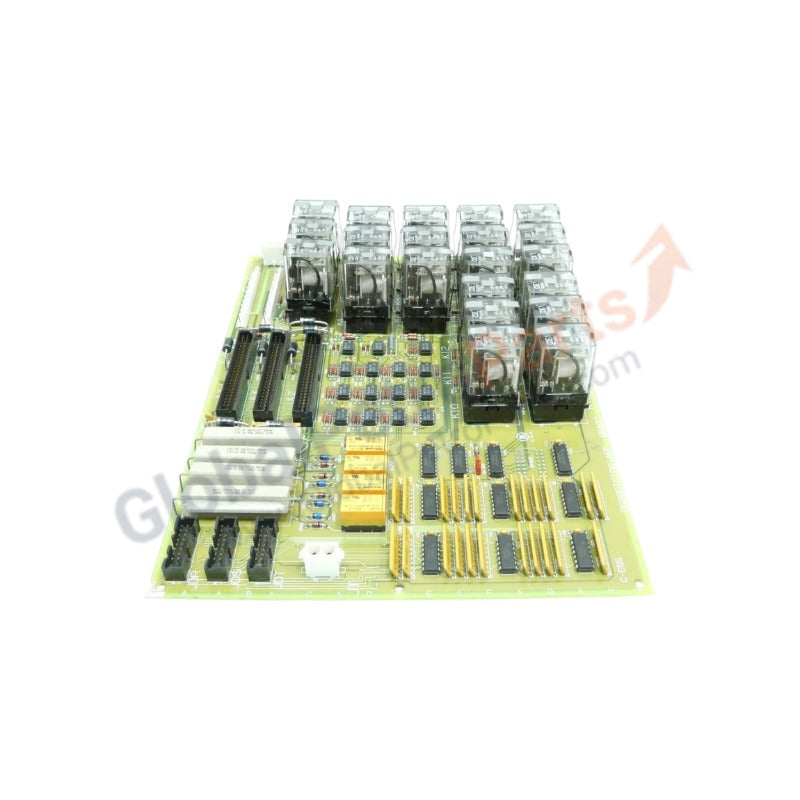

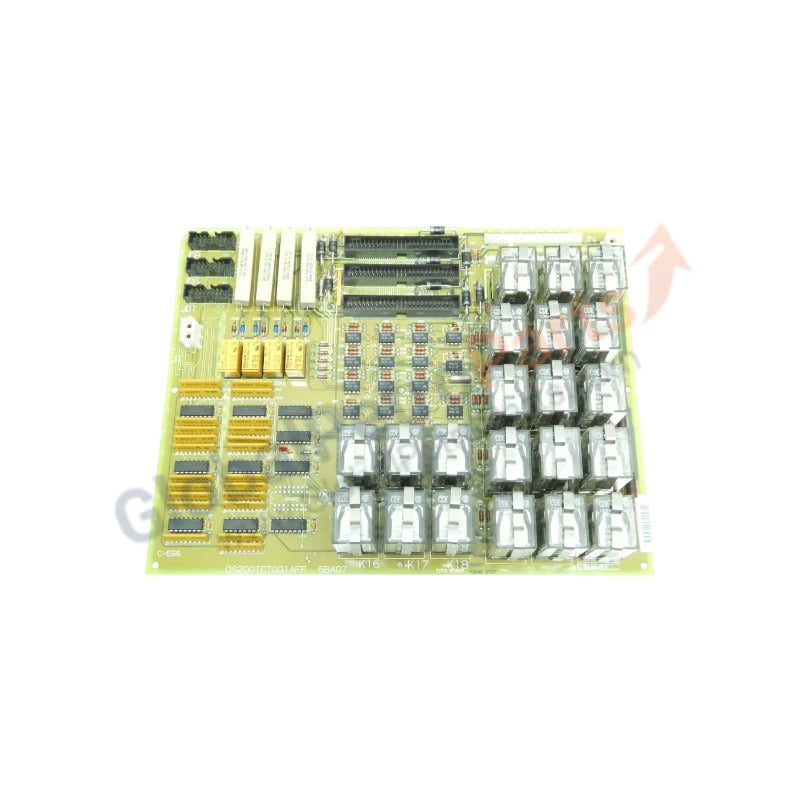

GE DS200TCTGG1A Mark V Simplex Turbine Trip Board

Product Overview

The GE DS200TCTGG1A (DS200TCTGG1A) functions as the primary protection interface within the Mark V Speedtronic turbine control system. Specifically designed for Simplex configurations, this board manages the critical "Trip" logic required to de-energize the fuel termination solenoids during emergency conditions. We supply this module as 100% Brand New original equipment. The DS200TCTGG1A interfaces directly with the turbine's protective sensors to monitor overspeed, low lube oil pressure, and manual emergency stop inputs. By executing hard-wired hardware voting and relay logic, it provides a fail-safe mechanism that bypasses standard software control to ensure immediate mechanical shutdown, protecting the turbine from catastrophic failure.

Technical Specifications

The DS200TCTGG1A integrates high-capacity relay circuits and diagnostic feedback loops to maintain the safety integrity of the turbine.

Engineering Advantages

The DS200TCTGG1A solves critical safety and integration challenges in power generation and industrial drive systems:

• Deterministic Emergency Shutdown: This board utilizes discrete hardware relay logic to handle trip signals. This architecture ensures that even in the event of a main processor freeze or software hang, the DS200TCTGG1A will reliably de-energize the fuel solenoids to stop the turbine.

• Integrated Flame Scanner Interface: The board conditions and monitors signals from turbine flame scanners. It detects "Loss of Flame" conditions in milliseconds, triggering an immediate trip to prevent the buildup of unburned fuel in the combustion chamber.

• Signal Isolation and Noise Suppression: GE engineers equipped the DS200TCTGG1A with heavy-duty galvanic isolation. This prevents high-voltage transients from the solenoid circuits from migrating back to the sensitive digital control backplane, ensuring signal purity throughout the control core.

• Comprehensive Diagnostic Feedback: Despite its hardware-centric role, the board communicates its internal relay status back to the HMI. This allows operators to identify the exact cause of a turbine trip (e.g., "Overspeed Trip" vs "Low Oil Pressure") without manual tracing of the trip string.

FAQs

• Can the DS200TCTGG1A be used in a TMR (Triple Modular Redundant) system? The TCTGG1A version is specifically optimized for Simplex (single core) systems. For TMR architectures, you typically require the TCTG series boards designed for the , , and  core voting structures. Always check your site-specific "Control Sequence Program" before selecting a replacement.

• What is the correct procedure for testing the trip logic? You should perform a "Dry Trip" test during scheduled maintenance. This involves simulating a trip condition while the fuel system is isolated to verify that the relays on the DS200TCTGG1A actuate correctly and the HMI registers the appropriate fault code.

• Does this board require periodic relay replacement? The industrial-grade relays on the DS200TCTGG1A are rated for thousands of operations. However, in environments with high sulfur or chemical exposure, we recommend a visual inspection of the contact points every 24 months to ensure no carbon buildup or pitting has occurred.

• How do the "G1A" and "G1F" suffixes differ? The G1A is the standard revision. Later versions like the "G1F" may include minor component updates for improved thermal stability. These versions are generally backward compatible, but you must ensure all ribbon cable headers match your existing wiring harness.
