GE | DS3800NVMB1A1A Mark IV Voltage Monitor Board

Product Overview

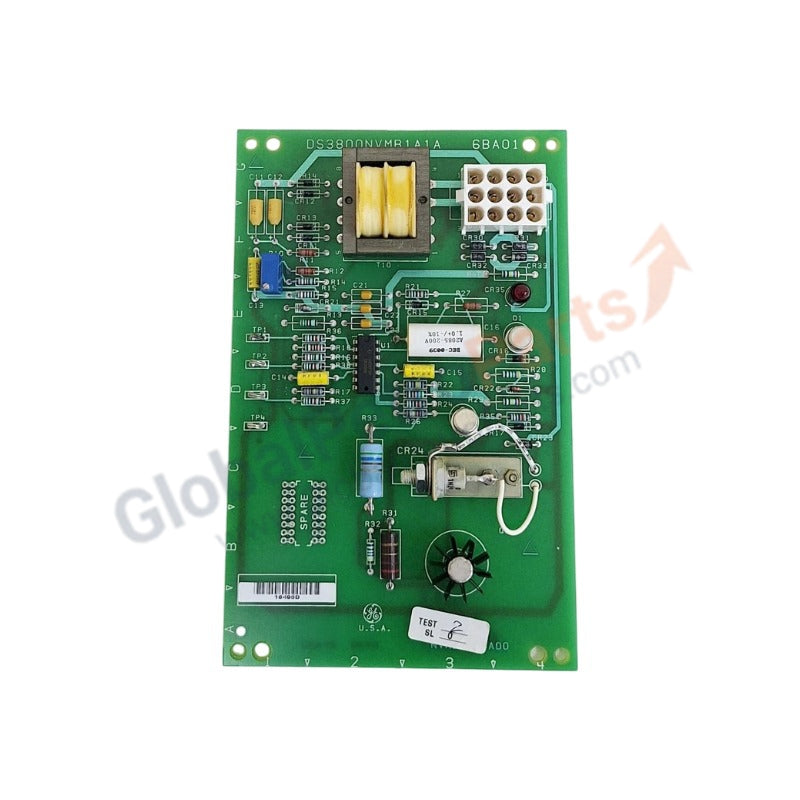

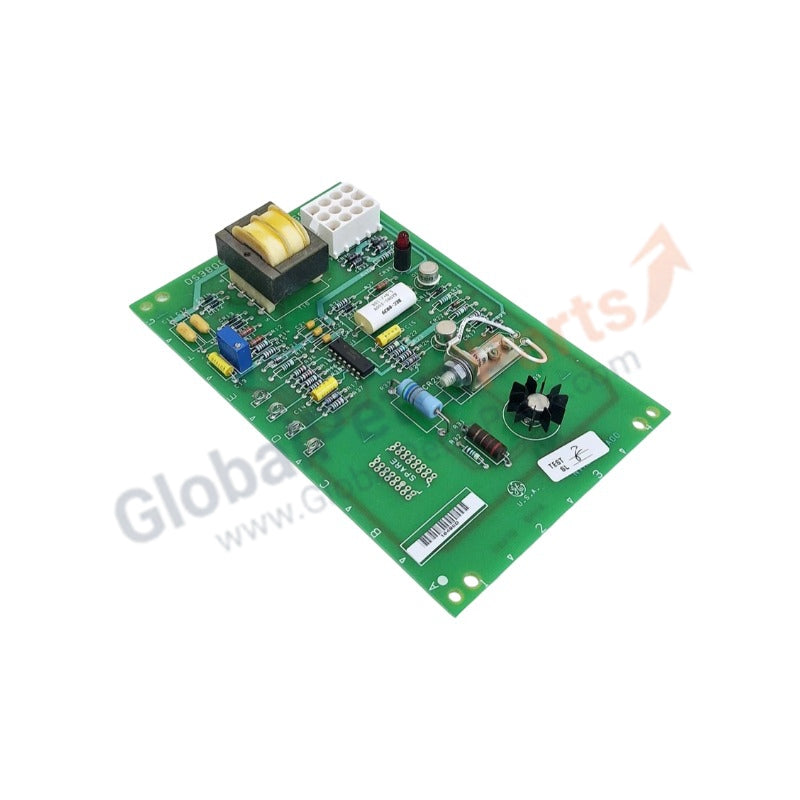

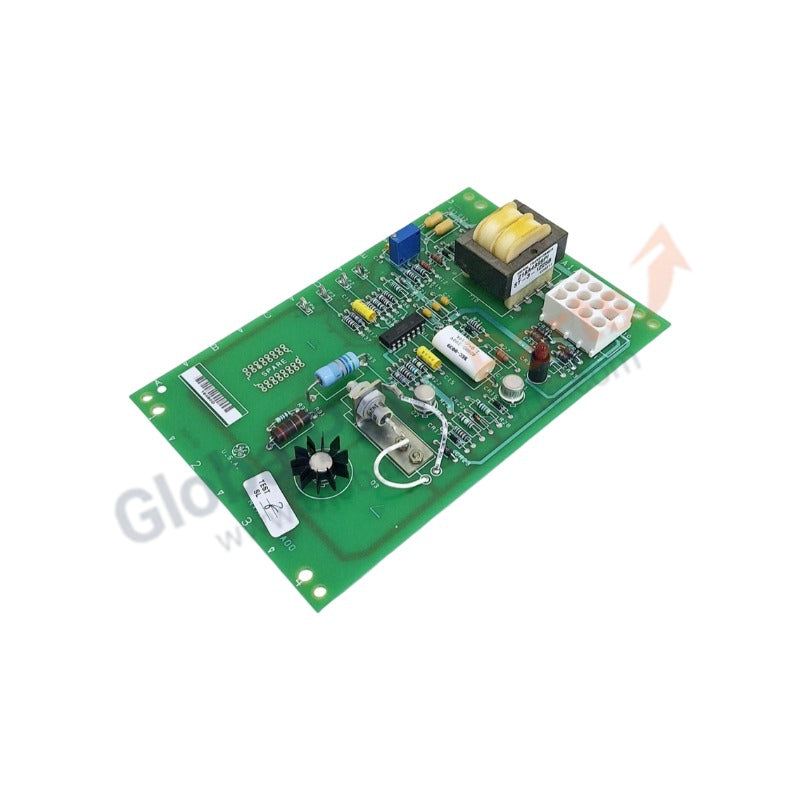

The DS3800NVMB1A1A (DS3800NVMB1A1A) functions as a specialized Voltage Monitor Board within the legacy General Electric Mark IV Speedtronic control system. This essential module continuously tracks the status of the internal DC power rails to ensure all logic and control boards operate within safe electrical tolerances. It detects over-voltage and under-voltage conditions that could otherwise lead to erratic turbine behavior or hardware damage. This unit arrives as 100% Brand New and original, providing the precise calibration and rapid response times required to protect aging Mark IV infrastructure from power-related failures.

Technical Specifications

The DS3800NVMB1A1A utilizes high-stability comparators and reference circuits to maintain monitoring accuracy.

Engineering Advantages

• Real-Time Power Diagnostics: The board monitors multiple voltage levels simultaneously. It instantly triggers a system interrupt if any rail deviates from the pre-set threshold, preventing the execution of corrupted control logic.

• Enhanced Fault Isolation: Integrated LED indicators on the front edge of the board provide immediate visual confirmation of power health. This allows field engineers to isolate power supply issues from logic faults without extensive multimeter probing.

• Rugged Analog Comparator Design: Unlike software-based monitoring, the DS3800NVMB1A1A uses dedicated analog circuitry to provide instantaneous detection of voltage spikes or dips, offering a faster layer of protection than digital scanning cycles.

• Direct Backplane Integration: The board slides directly into the Mark IV card rack, utilizing high-reliability gold-plated edge connectors to ensure low-resistance contact with the system bus.

Installation and Field Guidelines

1. Backplane Alignment: Before inserting the DS3800NVMB1A1A, inspect the card cage guide rails for debris. Ensure the edge connector aligns perfectly with the backplane socket to avoid bending pins or shorting power rails.

2. System Calibration: While factory-calibrated, check the voltage thresholds against your site’s specific Mark IV technical manual. Aging power supply modules may require slight adjustments to the sensitivity pots on the monitor board to prevent nuisance alarms.

3. Power Sequencing: Always power down the control rack before removing or installing the voltage monitor board. "Hot-swapping" this module can trigger a full turbine trip or cause a transient spike that damages downstream logic boards.

FAQs

Q: Does the DS3800NVMB1A1A monitor the 125 VDC battery backup?

A: Yes. The board tracks the main control power rail, which usually sources from the 125 VDC battery system or the primary power supply, ensuring the protection string has sufficient energy to actuate trip solenoids.

Q: Can this board be used in Mark V systems?

A: No. The DS3800 series is specifically designed for the Mark IV hardware architecture. Mark V systems use the DS200 series for similar power distribution and monitoring functions.

Q: What are the symptoms of a failing Voltage Monitor Board?

A: Common indicators include intermittent "Power Supply Fault" alarms even when voltages measure correctly, or a failure of the system to boot despite healthy input power. Replacing with this brand-new unit eliminates these ghost faults.
