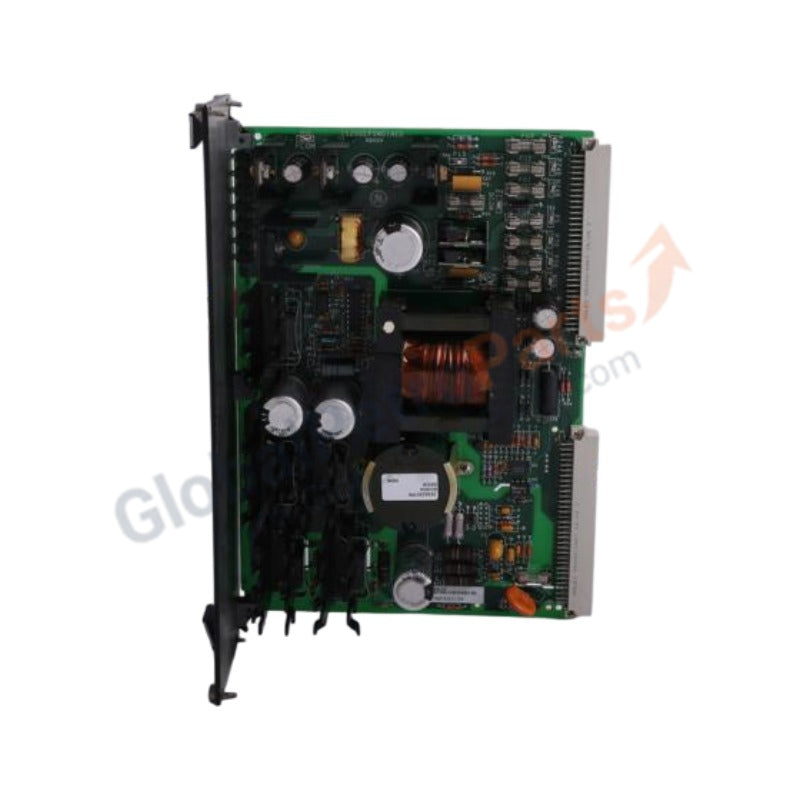

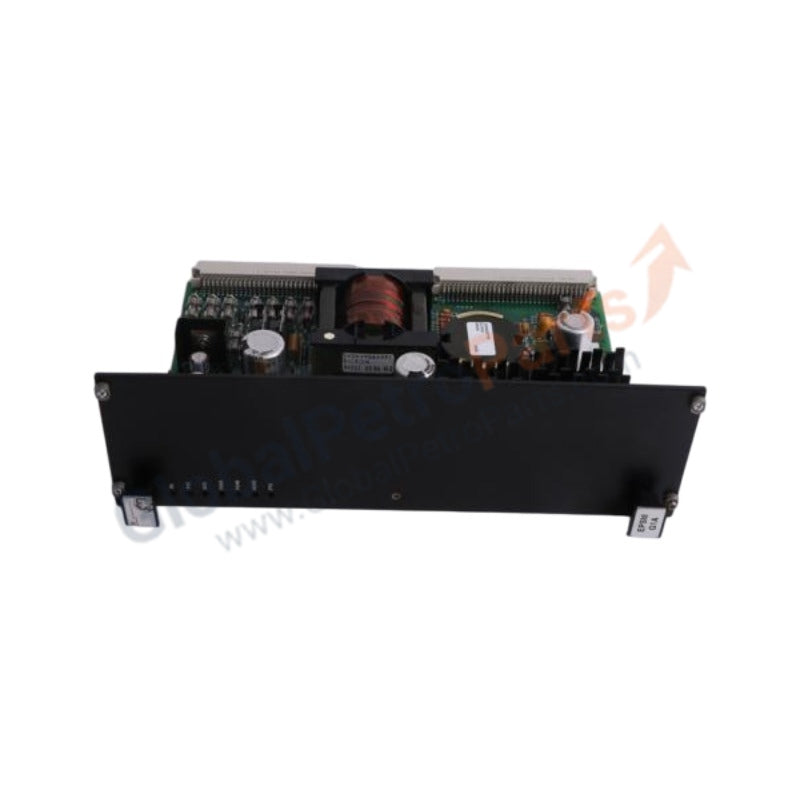

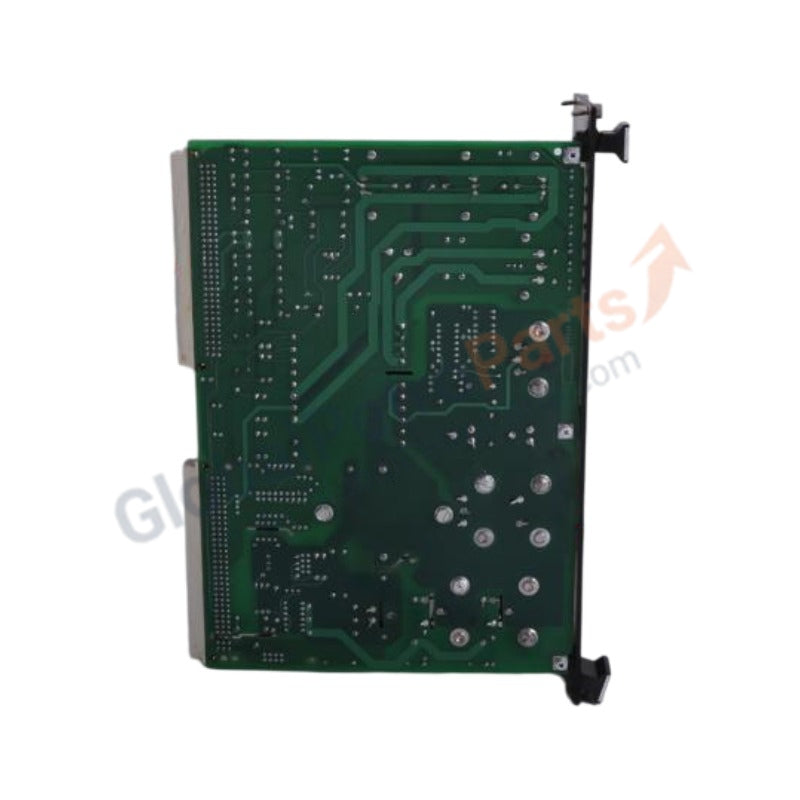

GE EX2100 Power Supply Module IS200EPSMG1A

Product Overview

The GE IS200EPSMG1A serves as the primary IS200EPSM Power Supply Module utilized to execute local DC voltage regulation and distribution across EX2100 Excitation Control System platforms. It accepts raw input power from the control rack backplane or dedicated source lines and converts it into multiple isolated DC outputs. These regulated voltages sustain the computational logic networks, gateway drivers, and diagnostic circuits on adjacent excitation boards without inducing thermal overload or harmonic distortions.

Hardware Specifications

Backplane Bus Communication Velocity and Firmware Compatibility

The module integrates directly with the system control rack backplane, matching internal bus communication velocity requirements for synchronized hardware monitoring. Status signals, including over-voltage conditions and thermal thresholds, are reported to the primary controller via the localized diagnostic channel. Configuration profiles and component tracking parameters remain stored on the internal EEPROM, establishing firmware flash compatibility across standard EX2100 system software baselines.

Frequently Asked Questions

Q: What are the live extraction and hot-swap limitations for the IS200EPSMG1A power supply module?

A: This module does not support hot-swap capabilities under live load conditions. Removing or introducing the IS200EPSMG1A module while the main EX2100 rack is energized can induce transient electrical breakdown across adjacent logic lanes and terminate control system operations.

Q: How is under-voltage or cross-channel fault protection executed on the internal output rails?

A: Each individual DC output circuit incorporates an independent short-circuit fold-back protection layout. If a specific rail encounters a fault or draws current beyond design specifications, the affected section reduces output to a safe state without causing damage to the backplane system.

Field Installation Guidelines

• Anti-Static Precautions: Installation personnel must wear an approved, grounded electrostatic discharge (ESD) wrist strap prior to unboxing or sliding the module into the carrier slot.
• Mechanical Alignment: Insert the board assembly along the designated chassis guide rails. Slide firmly until the backplane connectors seat securely, and torque the front panel retaining screws down completely.
• Thermal Boundaries: Verify that nearby ventilation ports or cooling fan pathways remain completely unobstructed to support continuous heat dissipation from the onboard power components.
• Ground Continuity: Check that the module chassis grounding pads establish direct electrical continuity with the common cabinet DIN-rail or rack enclosure matrix.
