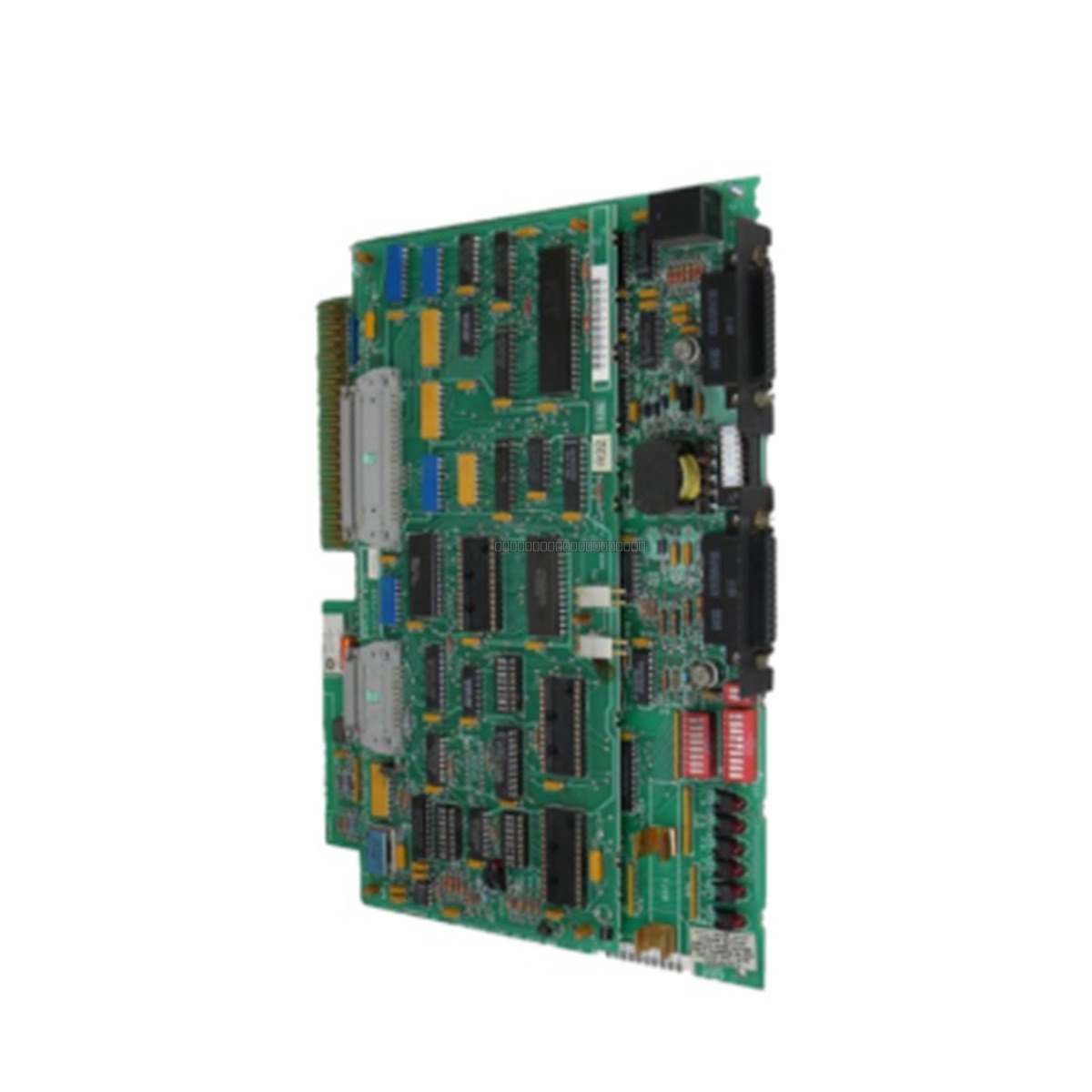

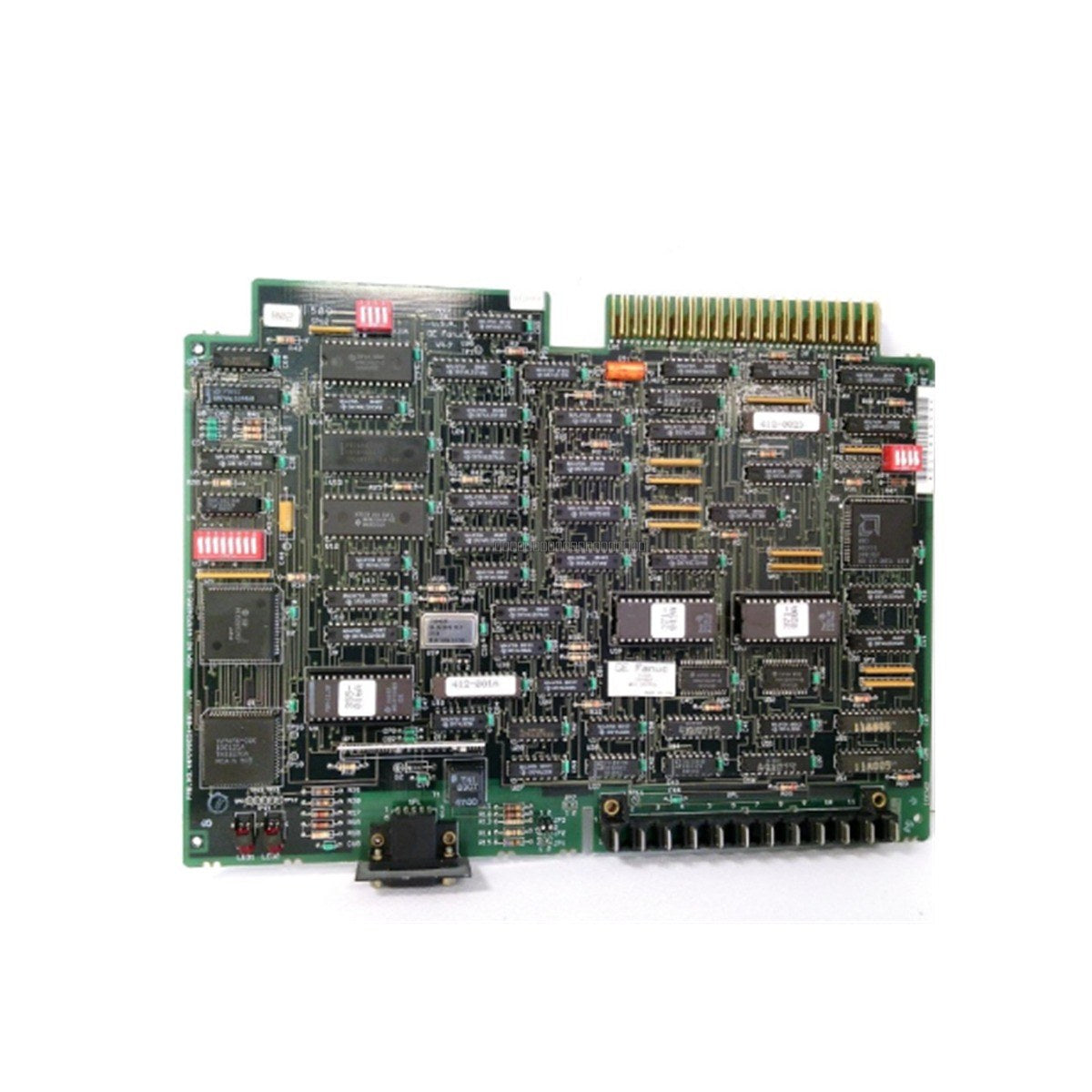

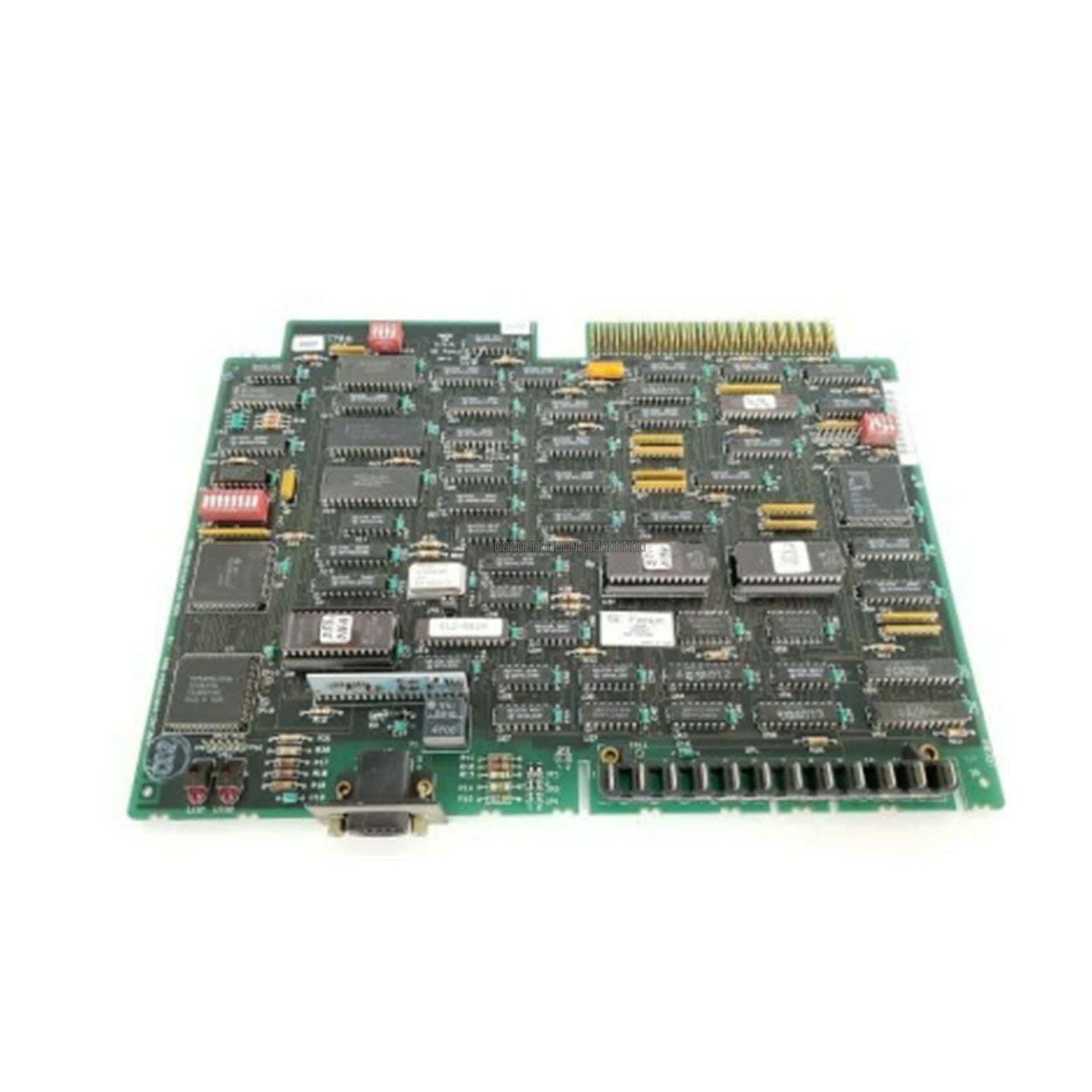

General Electric IC660CBB902G Genius I/O Bus Controller

Description

The General Electric IC660CBB902G is a Series Six Genius I/O Bus Controller designed to manage communication between the Series Six PLC and the Genius I/O network. This module acts as a critical interface, allowing the PLC to exchange data with remote I/O devices, thereby extending the control capabilities of the automation system across the plant floor.

Features

• Supports connection for up to 31 individual Genius I/O devices.
• Configurable via CPU or handheld monitor for flexible system integration.
• Supports a maximum communication distance of 2000 feet (approx. 609 meters).
• Selectable baud rates to accommodate various network speed requirements (excluding the 153.6 Kilobaud standard rate).
• Phase B hardware revision for compatibility with established Series Six architectures.

Applications

This bus controller is primarily utilized in industrial automation environments where distributed I/O is required. It is commonly found in manufacturing plants, process control systems, and heavy industrial machinery where the Series Six PLC platform is employed to manage complex I/O arrays over long distances.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before inserting or removing the bus controller module to prevent electrical damage.
• The module is designed for installation in a standard CPU slot, remote I/O rack, or high-capacity I/O rack.
• Verify that the backplane connector pins are clean and free of debris before seating the module.
• Use shielded communication cabling for the Genius I/O bus to minimize EMI interference, especially when running at maximum distances.
• Ensure proper grounding of the rack assembly to maintain signal integrity across the bus.

FAQ

What is the primary function of the IC660CBB902G?

The IC660CBB902G serves as a bus controller for the GE Series Six PLC, enabling the system to communicate with and control remote Genius I/O blocks.

Can this module be configured using a handheld device?

Yes, the module supports configuration via either the host CPU or a compatible handheld monitor.

What is the maximum distance for the Genius I/O bus?

The controller supports a maximum communication distance of 2000 feet, provided appropriate cabling and termination standards are followed.
