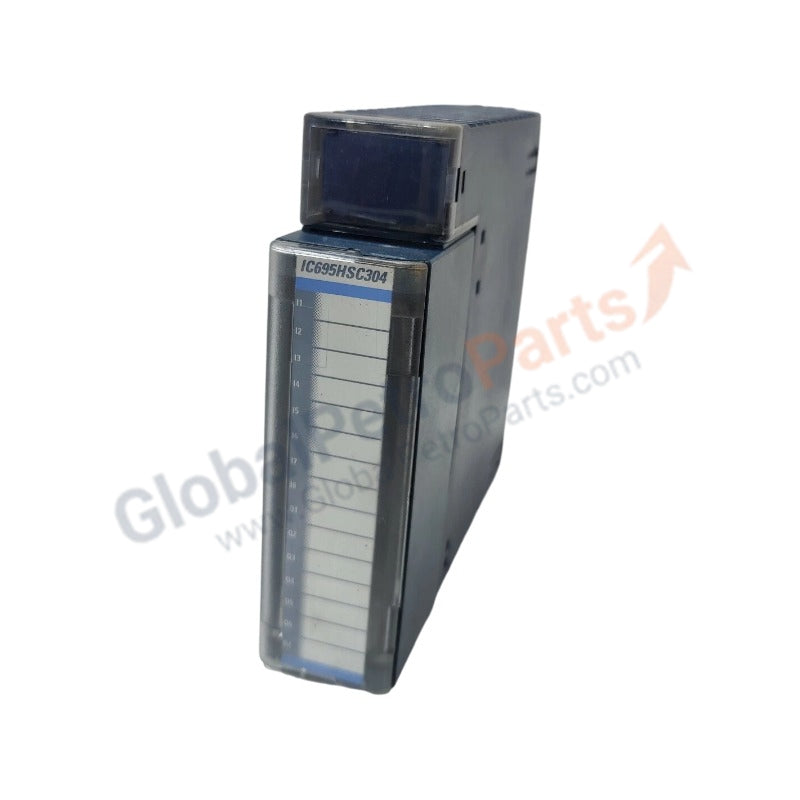

GE Fanuc High-Speed Counter Modules PACSystems RX3i IC695HSC304

Product Overview

The GE Fanuc IC695HSC304 serves as the primary IC695HSC304 High-Speed Counter Module utilized to execute high-frequency pulse signal acquisition across PACSystems RX3i platforms. The device senses real-time pulses from incremental encoders, proximity switches, and flow meters, converting rapid electrical state changes into digital velocity, position, and accumulation registers manageable by the central processing unit.

Hardware Specifications

Industrial Control & Deterministic Networks

The module operates over a high-bandwidth PCI Express backplane interface to sustain high-velocity bus communication velocity capabilities during maximum counting loads. Configuration properties, including pulse-direction, up/down count limits, and I/O density scaling options, are managed inside the engineering workstation. The hardware layer retains comprehensive firmware flash compatibility to enforce strict data coherency during real-time tracking operations linked to Profinet or EtherNet/IP deterministic networks.

Frequently Asked Questions

Q: Does the IC695HSC304 module support hot-swap extraction under chassis backplane power?

A: Yes, the physical layout supports hot-swap operations within a powered RX3i Universal Backplane, provided the configuration logic allows active module manipulation without disrupting surrounding control processes.

Q: How is the maximum input counting frequency affected when shifting from differential to single-ended input wiring?

A: The hardware architecture accommodates up to 1.5 MHz on differential line driver connections. Using single-ended open-collector wiring profiles reduces the maximum signal transition threshold due to line capacitance and noise susceptibility.

Field Installation Guidelines

• Chassis Installation: Verify all backplane paths are clean. Slide the module straight into any open slot of an RX3i Universal Backplane (IC695CHSxxx). Ensure the upper and lower latching levers click closed to lock the component grounded against the chassis.

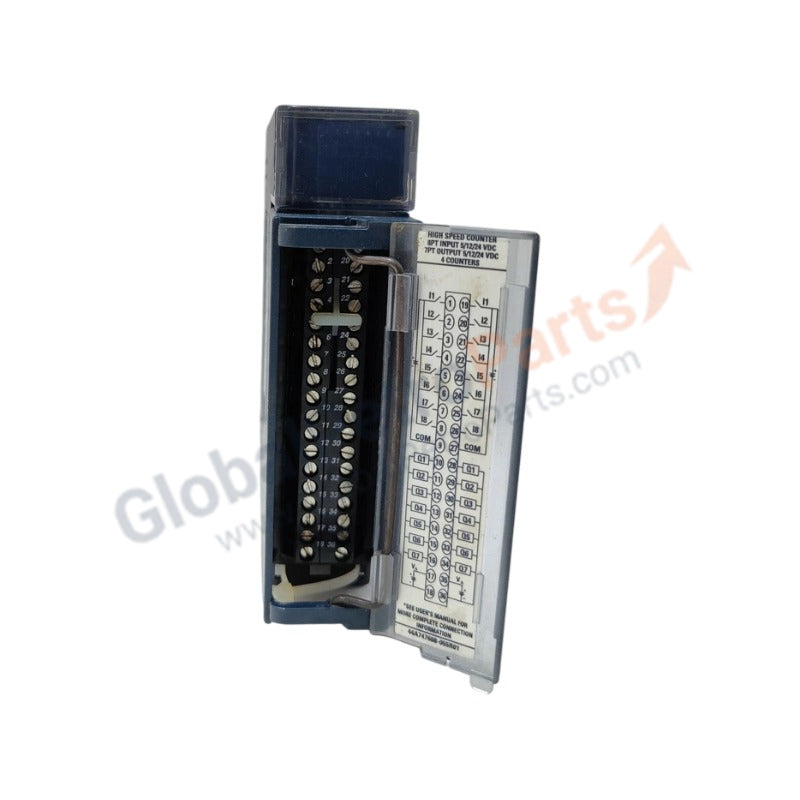

• Terminal Wiring Restrictions: Terminate counter signals using high-density terminal blocks (IC694TBB032 or IC694TBS032). Maintain strict division between high-speed counter pulse cables and AC power distribution conductors within the enclosure wireways.
• Shield Grounding Topography: Connect the braided shield of encoder signal lines directly to the main system panel ground bar at the module end. Do not ground both sides of the cable shield to ensure protection against industrial ground loops.
• Line Driver Termination: For 5 VDC differential applications with long wire runs, install external line-matching terminal resistances across the A/B input pairs to prevent high-frequency pulse edge degradation.
