GE Fanuc IC200MDD840 VersaMax Mixed I/O Module | 32 Channels

Product Description

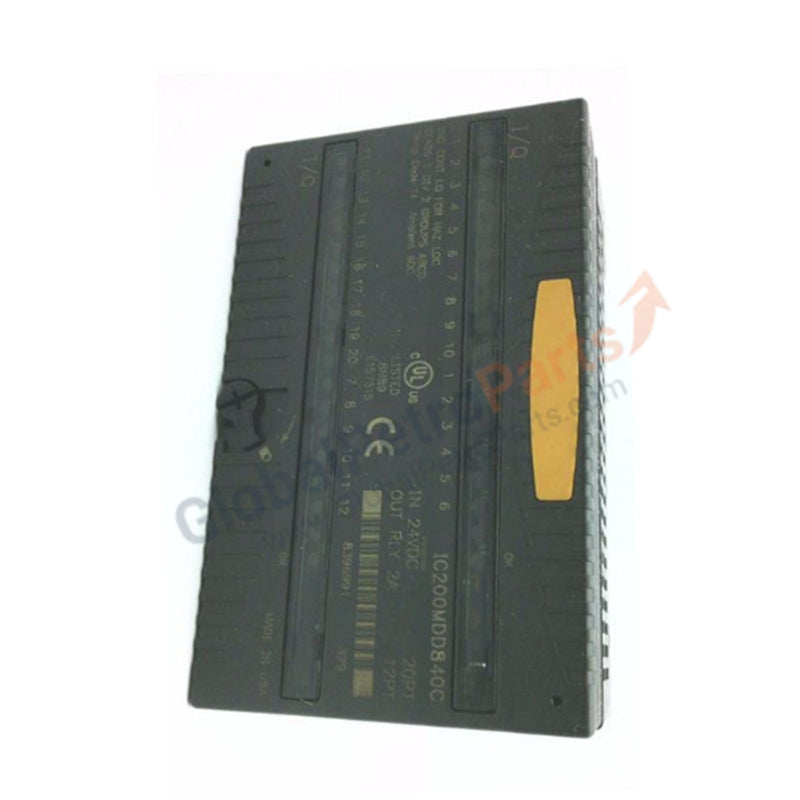

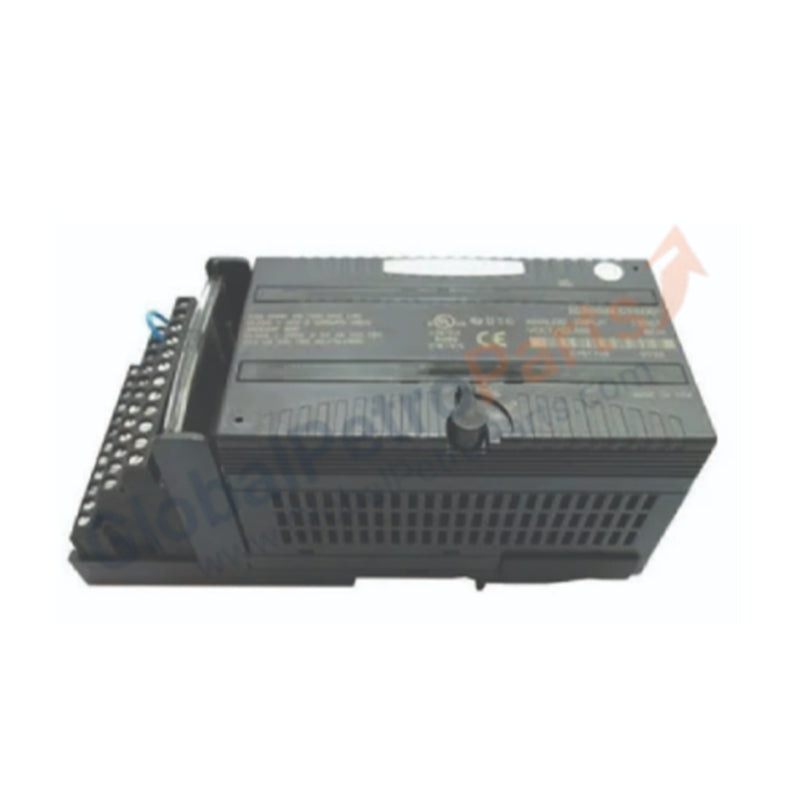

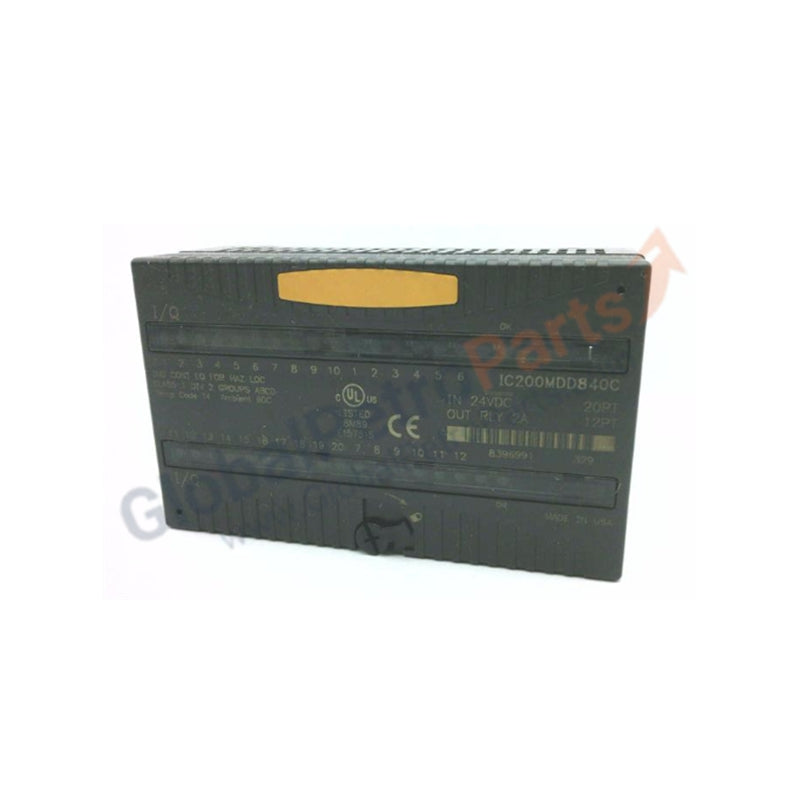

The GE Fanuc VersaMax IC200MDD840 is a mixed discrete I/O module designed to combine input and output functionality in a single compact unit. It provides 32 total channels, including 20 sourcing inputs and 12 relay outputs, making it a versatile choice for distributed control systems. With positive-logic inputs, isolated output groups, and wide voltage support, this module ensures reliable operation in industrial automation environments.

Technical Specifications

• Manufacturer: GE Fanuc Emerson

• Model / Part Number: IC200MDD840

• Product Line: VersaMax I/O

• Product Type: Discrete Mixed I/O Module

• Weight: 0.38 lbs (0.17 kg)

• Total I/O Channels: 32

• Inputs: 20 sourcing inputs, 24 VDC nominal (0–30 VDC range)

• Outputs: 12 relay outputs, Form A contacts

• On-State Input Current: 2.0–5.5 mA

• Output Ratings:

• Minimum: 10 mA per point

• Maximum: 2.0 A resistive load at 5–265 VAC or 5–30 VDC

• 0.2 A resistive load at 31–125 VDC

• Output Voltage Range: 0–125 VDC, 0–265 VAC (47–63 Hz)

• Nominal External Power Supply: 5/24/125 VDC or 120/240 VAC

• Channel Isolation: Two groups of six outputs each

• Off-State Current: ≤ 0.5 mA

• Current Draw: 375 mA maximum

Application Scenarios

The IC200MDD840 is ideal for compact automation systems requiring both input monitoring and relay-based output control. It is commonly used in packaging machinery, conveyor systems, and mixed-signal environments where sourcing inputs and relay outputs are needed in one module.

FAQ

Q: How many I/O channels does the IC200MDD840 provide?  A: 32 channels total, with 20 inputs and 12 relay outputs.

Q: What type of inputs are supported?  A: Positive-logic sourcing inputs at 24 VDC nominal.

Q: What is the maximum output load capacity?  A: 2.0 A resistive load per point at 5–265 VAC or 5–30 VDC.
