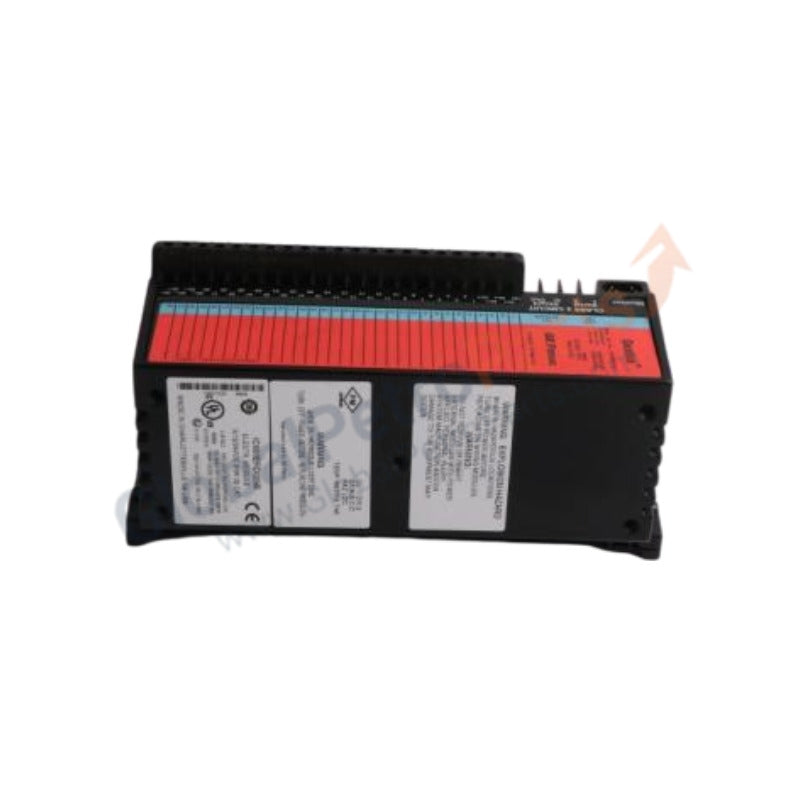

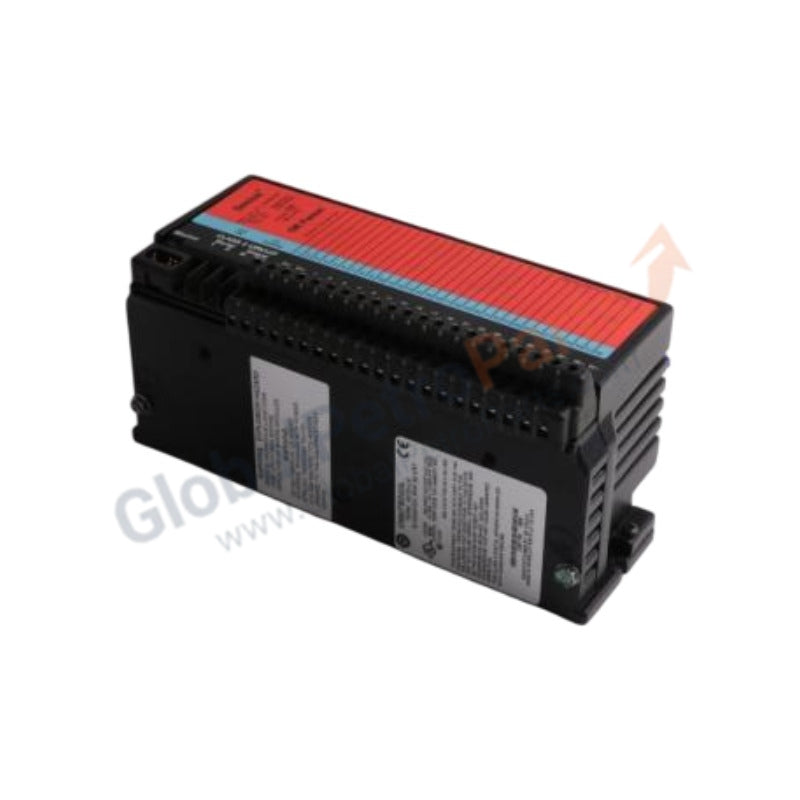

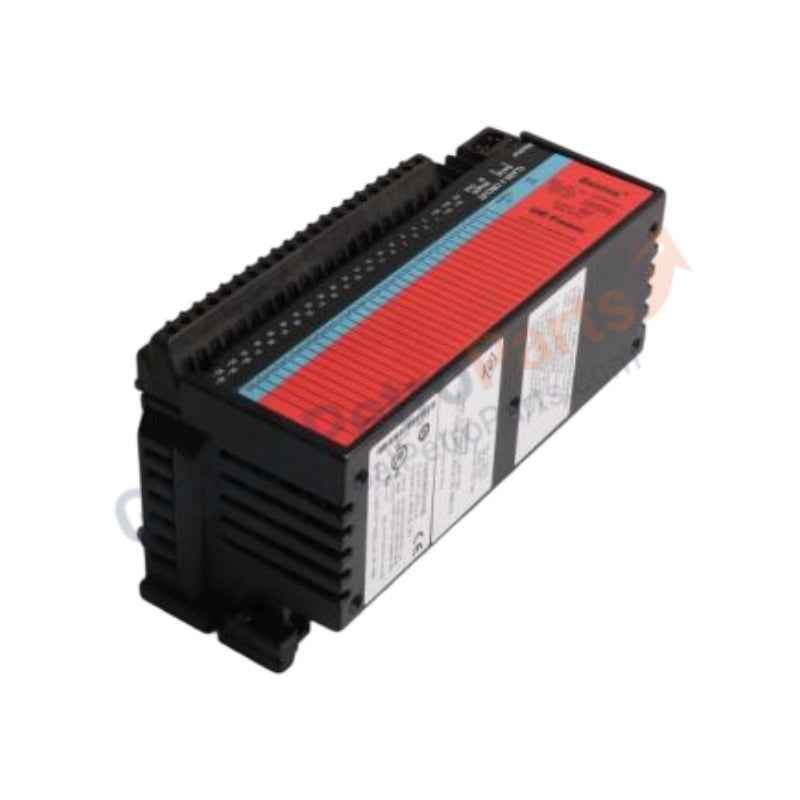

GE Fanuc IC660BRD025 Genius I/O Block

Product Overview

The GE Fanuc IC660BRD025 is a high-performance Genius I/O block designed for distributed control within GE Fanuc PLC architectures. This 16-point Relay Output block provides the physical interface between the Genius network bus and field devices such as motor starters, solenoids, and indicators. By utilizing a decentralized design, the IC660BRD025 eliminates long runs of expensive field wiring and simplifies cabinet layouts. This 100% Brand New original unit ensures maximum contact life and circuit integrity, providing the robust switching capabilities required for heavy-duty industrial automation environments.

Technical Specifications

The IC660BRD025 utilizes advanced diagnostics and rugged relay components to manage discrete output signals:

• Model: IC660BRD025

• Brand: GE Fanuc (General Electric)

• Series: Genius I/O

• Condition: 100% Brand New Original

• Output Type: Isolated Relay Outputs (Normally Open)

• Number of Points: 16 Points (2 groups of 8)

• Operating Voltage: 115 VAC / 125 VDC or 230 VAC / 24 VDC (Application dependent)

• Maximum Current: 2 Amps per point / 8 Amps per group

• Network Protocol: Genius Bus (Serial)

• Diagnostics: Individual point monitoring and internal hardware checks

• Isolation: 1500V input-to-output galvanic isolation

• Operating Temperature: 0 to 60 °C (32 to 140 °F)

Engineering Advantages

The GE IC660BRD025 delivers technical solutions for demanding electrical switching and networking challenges:

• Comprehensive Fault Diagnostics: The IC660BRD025 monitors internal circuit health and communication status in real-time. It detects "failed-to-open" or "failed-to-close" relay conditions, allowing maintenance teams to identify hardware issues before they cause process downtime.

• Flexible Distributed Architecture: This Genius I/O block mounts directly near the field equipment. By transmitting data over a single twisted-pair serial cable instead of individual wires for every relay, it significantly reduces installation costs and commissioning time.

• Rugged Mechanical Switching: GE engineers the relays within the IC660BRD025 to handle high-inrush currents associated with inductive loads. This prevents contact welding and ensures thousands of reliable cycles even in harsh environments with high electrical noise.

• Seamless Hot-Swapping: The block's two-piece design allows for the replacement of the electronic assembly without disturbing the field wiring. This "Hot-Swap" capability minimizes Mean Time To Repair (MTTR) during critical maintenance windows.

FAQs

• Does the IC660BRD025 require a separate Hand-Held Monitor (HHM) for configuration?While you can configure the block via the Genius network software, using a GE Hand-Held Monitor (IC660HHM501) allows for local troubleshooting and forced-point testing directly at the cabinet without a laptop.

• What is the significance of the isolated relay design?The isolation ensures that electrical surges or ground loops in the field wiring do not propagate back to the Genius network or the central PLC, protecting your entire control system from damage.

• Can the IC660BRD025 handle both AC and DC loads simultaneously?Yes, provided the loads remain within the specified voltage and current ratings for the individual isolated groups. Always consult the wiring schematic to ensure proper grouping.

• Why should I avoid refurbished or "New Other" IC660BRD025 units?Relay contacts suffer from mechanical wear and electrical pitting over time. Refurbished units often contain relays near the end of their service life. Only 100% Brand New original units guarantee the full rated switching capacity and diagnostic accuracy for mission-critical operations.
