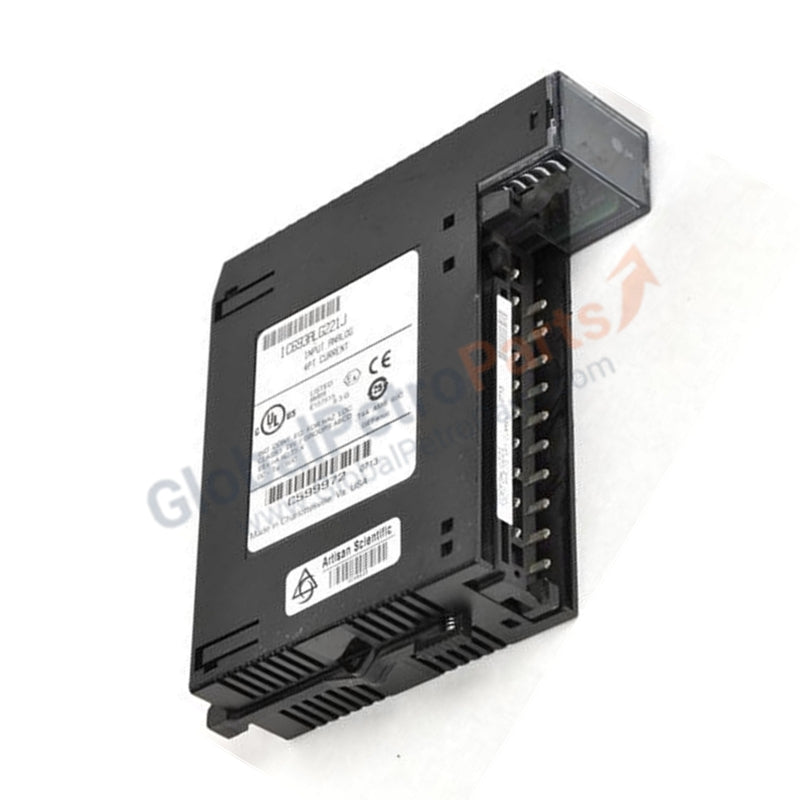

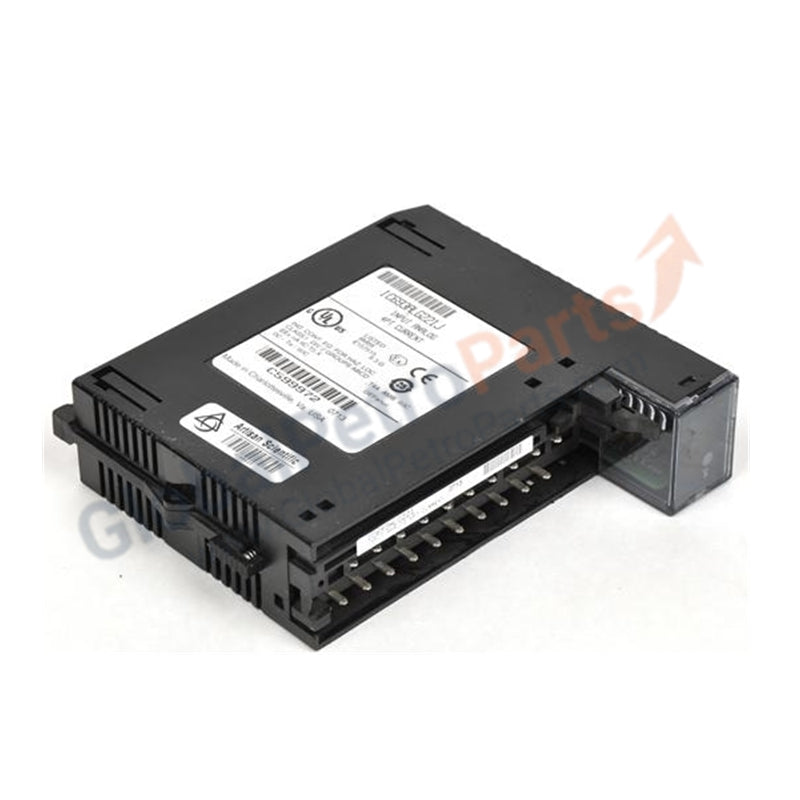

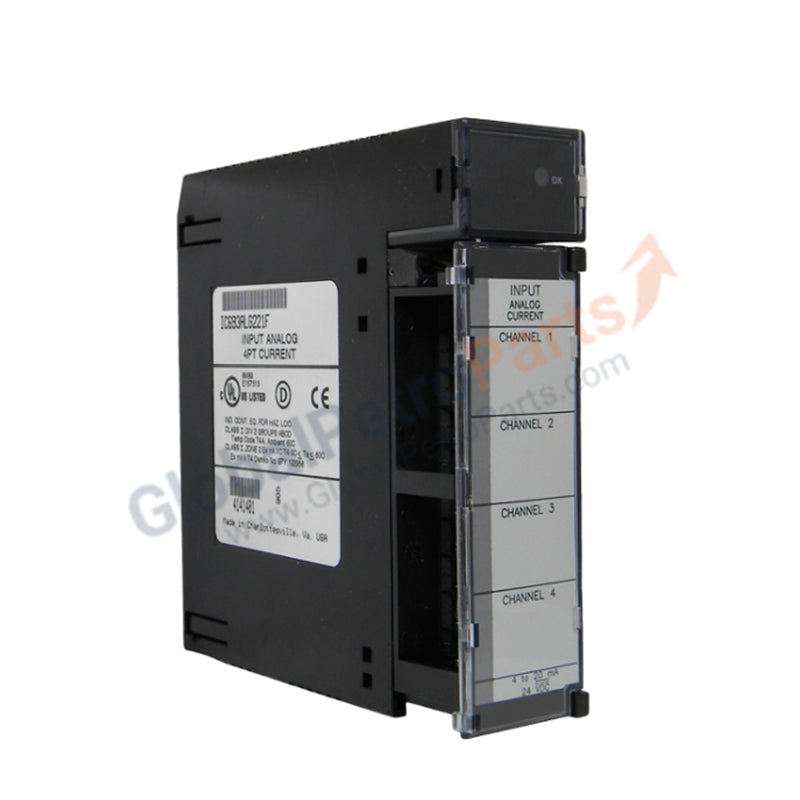

GE Fanuc IC693ALG221 4-Channel 4-20mA / 0-20mA Analog Current Input Module

Module Description

The IC693ALG221 is a high-precision analog input module engineered for the GE Fanuc (Emerson) Series 90-30 PLC platform. This module provides four independent channels designed to interface with industrial current-loop sensors. It is a critical component for monitoring continuous process variables such as pressure, temperature, and flow rate. By converting 0 to 20 mA or 4 to 20 mA analog signals into digital data for the PLC CPU, the IC693ALG221 ensures high-accuracy data acquisition with a fast 2 ms update rate across all active channels.

Detailed Engineering Specifications

The IC693ALG221 utilizes a sophisticated input filter and high-voltage isolation to protect the PLC backplane from field-side electrical noise and surges.

Installation and Calibration Notes

The IC693ALG221 is a software-configurable module, meaning the choice between 0-20 mA and 4-20 mA ranges is determined in the PLC configuration software (Proficy Machine Edition) rather than through physical jumpers. For 4-20 mA signals, the module reports a value of 0 to 32,000 counts to the CPU. If the signal drops below 4 mA, the module can trigger "Under Range" alarms in the PLC logic, which is essential for detecting broken wire conditions in safety-critical loops.

Application Scenarios

• Process Instrumentation: Interfacing with 2-wire or 4-wire transmitters for level, flow, and pressure monitoring.

• Environmental Control: Monitoring air quality or humidity sensors in HVAC and cleanroom environments.

• Legacy System Maintenance: Replacing aging analog cards in Series 90-30 racks to maintain system uptime without a full controller upgrade.

Technical FAQ

Does the IC693ALG221 provide loop power for 2-wire sensors?

No. The module acts as a passive receiver with a 250 Ohm input impedance. External loop power (typically 24VDC) must be provided in series with the transmitter and the module's input terminals.

How does the module handle 0-20 mA signals differently than 4-20 mA?

In 0-20 mA mode, the resolution is 5 µA per bit. In 4-20 mA mode, the resolution improves to 4 µA per bit. The scaling in the CPU remains consistent (0 to 32,000) for the selected range.

Is it possible to mix different current ranges on the same module?

Yes. Since each of the four channels is configured independently in the software, you can have a mix of 0-20 mA and 4-20 mA sensors connected to the same IC693ALG221 module.
