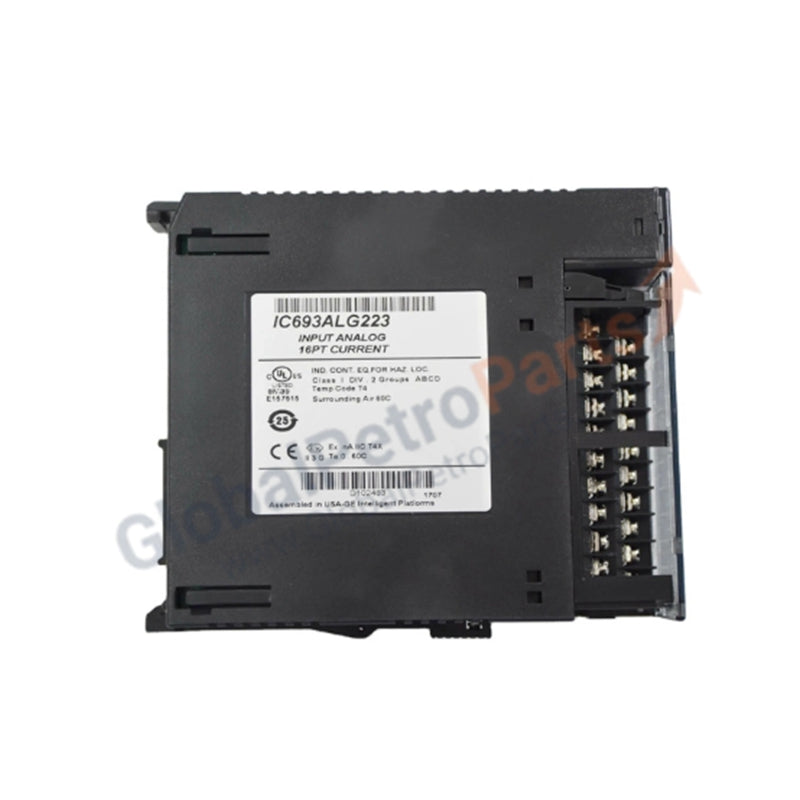

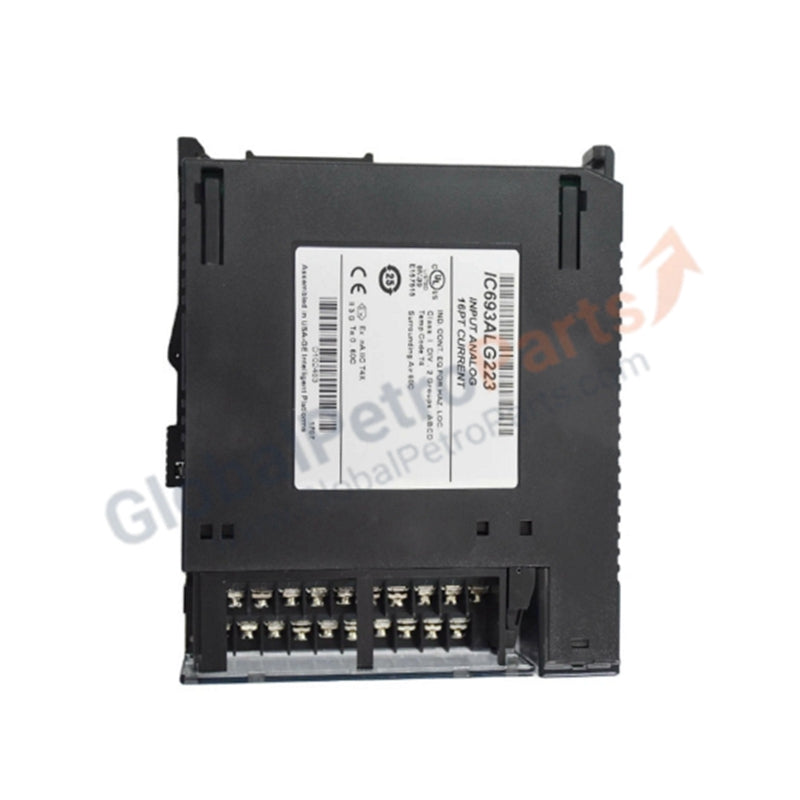

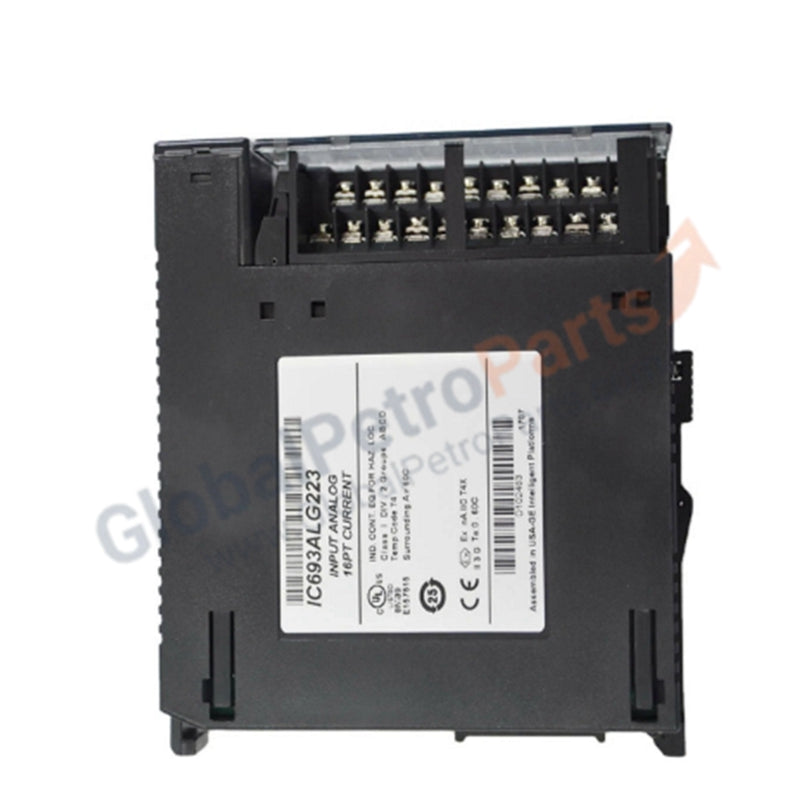

GE Fanuc IC693ALG223 Series 90-30 16-Channel Analog Current Input Module

Product Overview

The GE Fanuc IC693ALG223 provides high-density analog signal processing for the Series 90-30 PLC platform. This module converts standard industrial current signals (4-20 mA and 0-20 mA) into digital data for the CPU, supporting up to 16 individual channels. It acts as the critical bridge between field sensors—such as pressure transducers, flow meters, and temperature transmitters—and your control logic. We offer this component in 100% Brand New condition, ensuring peak factory-grade performance for your mission-critical automation loops.

Technical Specifications

Engineering Advantages

• High-Density Monitoring: The 16-channel architecture maximizes I/O density within a single slot. This design reduces the physical footprint of the PLC rack, allowing for smaller control cabinets and lower hardware costs in complex installations.

• Rapid Data Refresh: A 13ms update rate across all channels ensures the CPU receives near real-time data. This speed facilitates precise PID control and immediate response to fluctuating process variables.

• Superior Noise Rejection: The module incorporates a 200 Hz filter response and 1500V RMS isolation. These features shield the internal PLC logic from field-side electrical interference and ground loops commonly found in heavy industrial environments.

• Precision Signal Conversion: With a resolution of 4 microamps in the 4-20 mA range, the IC693ALG223 captures minute changes in sensor output. This high sensitivity enables tighter process tolerances and improved analytical accuracy for secondary monitoring systems.

FAQs

• Does the IC693ALG223 require an external power supply? Yes. The module requires a user-supplied 24 VDC external power source to power the analog circuitry and provide current for the field-side loops. It consumes approximately 65 mA from this external supply.

• Can I mix 4-20 mA and 0-20 mA signals on the same module? The module hardware supports both ranges; however, the software configuration via your PLC programming tool (such as Proficy Machine Edition) determines the range for the channels. Check your configuration settings to ensure proper scaling for each input.

• How does this module handle open-circuit detection? In the 4-20 mA range, the module reports a low-scale value or specific status bit if the current drops below the minimum threshold, allowing your logic to trigger an alarm for a broken wire or sensor failure.

• Is this a "New-in-Box" (NIB) product? Yes. We guarantee this IC693ALG223 is 100% Brand New original equipment. Unlike refurbished units, this module arrives with its full factory-rated lifespan and original component integrity intact.
