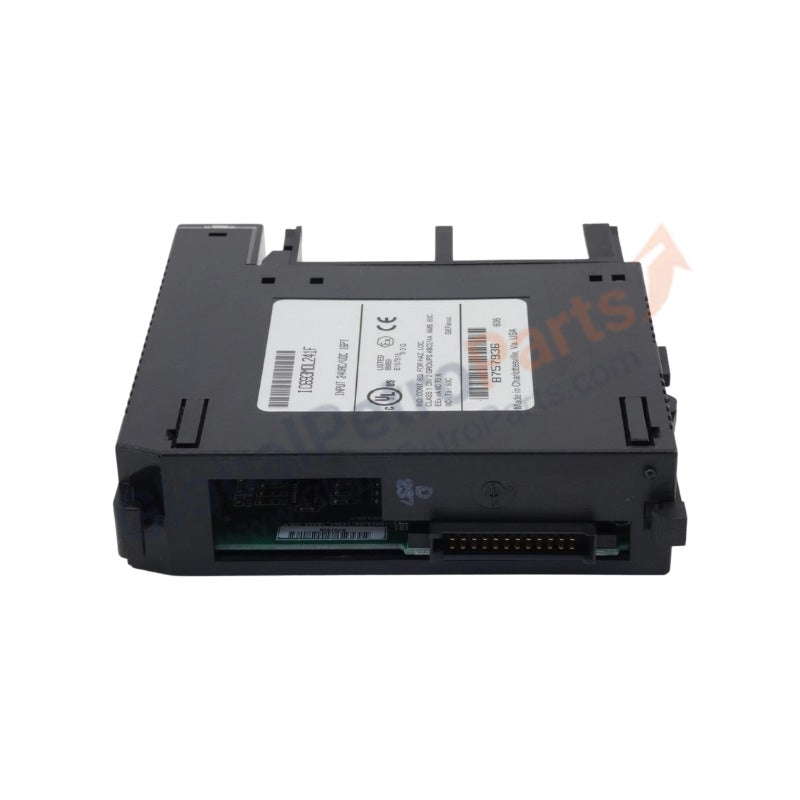

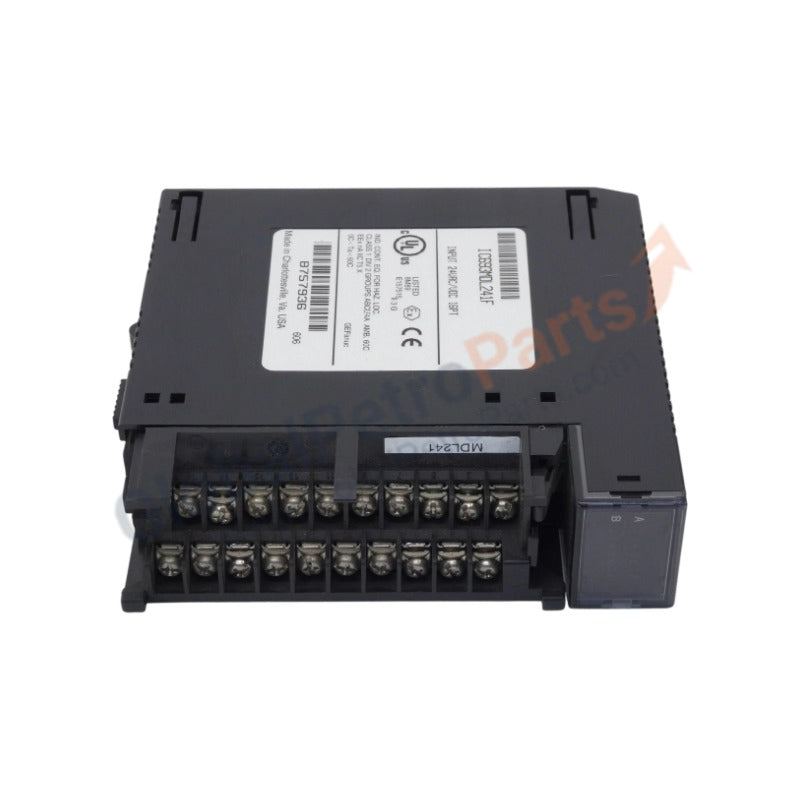

GE Fanuc IC693MDL241 Discrete Input Modules Series 90-30

Product Overview

The GE Fanuc IC693MDL241, also cataloged as the IC693MDL241 Discrete Input Module, operates as a dedicated hardware component for binary state acquisition within Series 90-30 platforms. The device senses external alternating current potentials and converts them into digital bits across the system bus, allowing the central processor to evaluate real-time circuit transitions from field control equipment.

Hardware Specifications

Industrial Control & Proximity Network Backplane Communication

The processing architecture utilizes a direct interface to execute synchronous data correlation with the central processing unit over the internal backplane bus. Dynamic hardware properties provide integrated I/O density scaling options across standard multi-rack expansions. All firmware flash compatibility routines execute under standard system parameters, matching exact data mapping definitions during high-speed diagnostic operations when linking baseplate nodes to Profinet or EtherNet/IP deterministic networks.

Frequently Asked Questions

Q: Can the IC693MDL241 discrete input module handle direct current (DC) input voltage loops?

A: No. The internal input circuitry integrates filtering components specific to alternating current signals, including attenuation curves built for 50/60 Hz waveforms. Deploying DC potentials will result in inaccurate logic state transitions.

Q: How is the physical status of individual input circuits displayed on the hardware housing?

A: The module faceplate incorporates a linear array of 16 green Light Emitting Diodes (LEDs) numbered 1 through 16. These indicators map directly to each electrical path, turning ON when the corresponding field circuit reaches the minimum required on-state voltage threshold.

Field Installation Guidelines

• Chassis Allocation: Ensure rack power is completely disconnected before mounting. Slide the module chassis guides into any open slot on a Series 90-30 baseplate. Press down on the top and bottom edge retainers to lock the unit flat against the backplane connector pins.

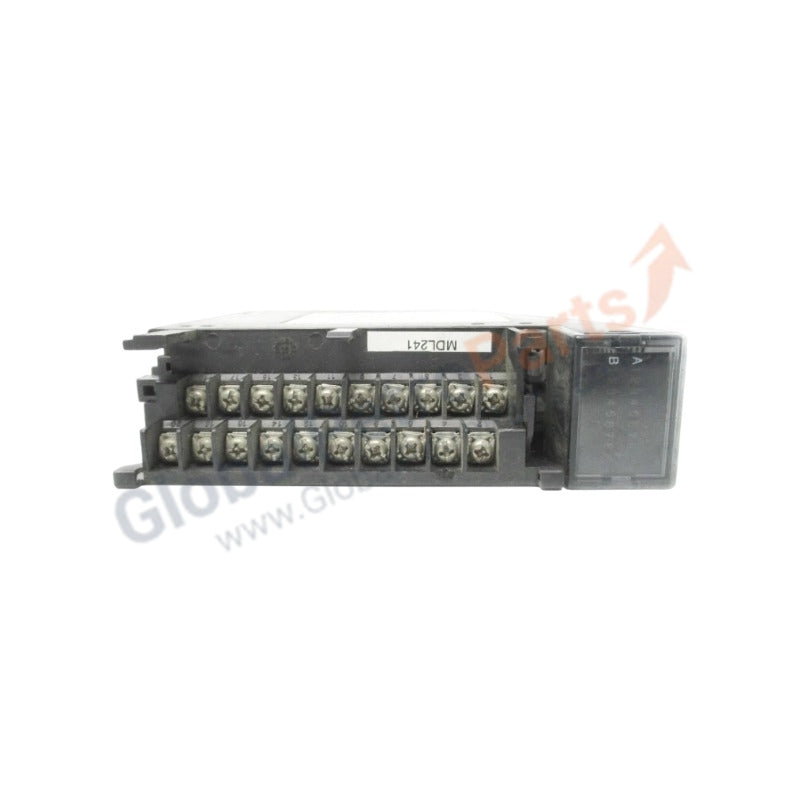

• Terminal Block Terminal Connections: Strip external wire endpoints exactly 8 mm. Insert the clean copper paths beneath the terminal block screw pressure plates. Secure the terminal block locking latch completely to prevent field connection errors.
• Common Neutral Alignment: Since all 16 input channels on this specific module route to a single shared terminal point, run the neutral side of the user-supplied 24 VAC supply directly to the assigned common pin on the connector block.
• Signal Cable Isolation: Maintain physical isolation between low-voltage AC input lines and high-current three-phase power lines within the electrical cabinet. Run communication and sensor signal wires through separate grounded metal trays to eliminate electrical cross-talk.
