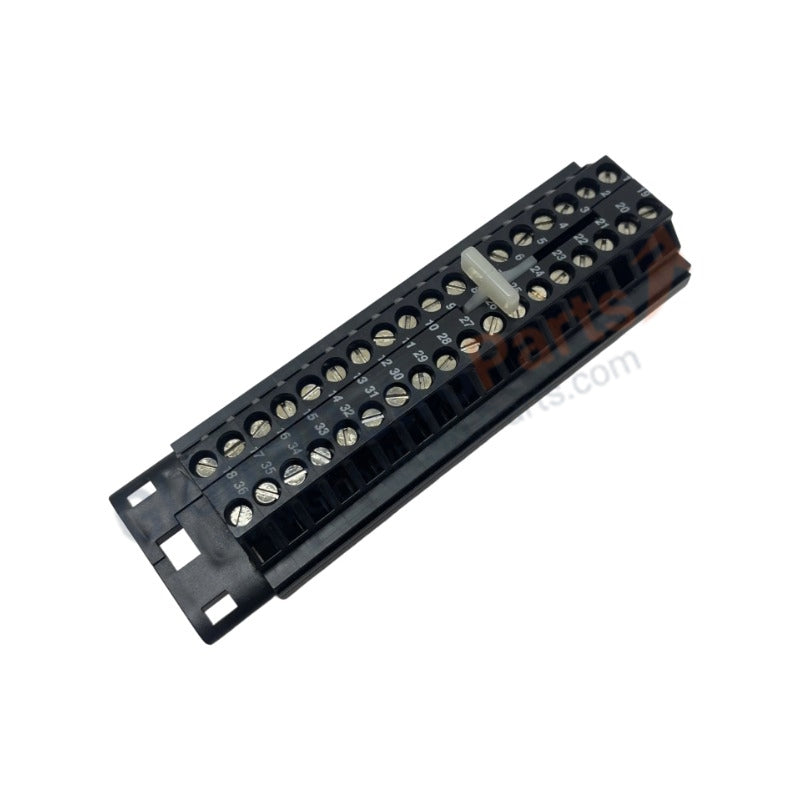

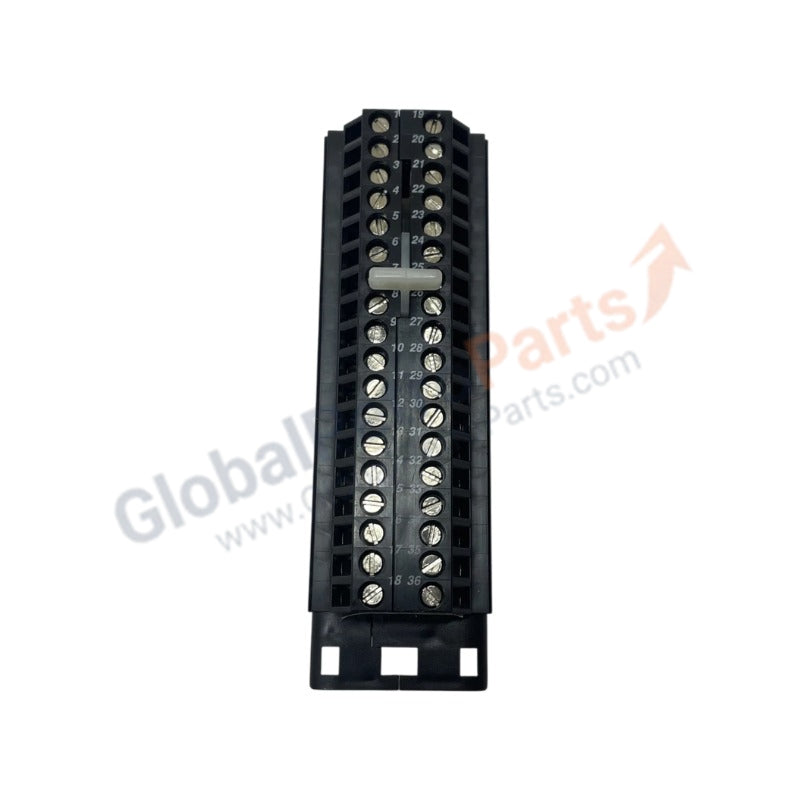

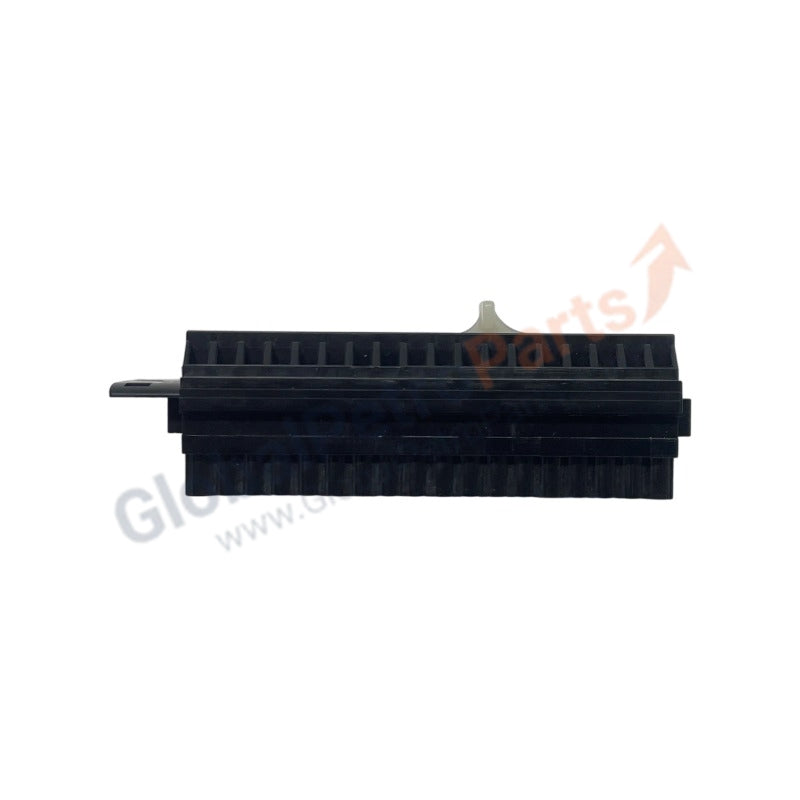

GE Fanuc IC694TBB032 Terminal Blocks PACSystems RX3i

Product Overview

The GE Fanuc IC694TBB032, also cataloged as the IC694TBB032 Terminal Block, operates as a dedicated hardware component for field wiring termination within PACSystems RX3i platforms. The component establishes secure physical cross-connections between field sensor/actuator cabling and the internal processing circuitry of specific high-density I/O modules via a box-style clamping mechanism.

Hardware Specifications

Deterministic Network and Backplane Bus Performance

The mechanical bus configuration preserves the physical path integrity required to maintain local backplane bus communication velocity parameters across dense execution loops. It sustains full firmware flash compatibility paths across legacy and contemporary RX3i module form factors. The electrical insulation barrier handles extensive voltage thresholds, allowing unhindered I/O density scaling profiles without signal degradation when working alongside Profinet or EtherNet/IP deterministic networks.

Frequently Asked Questions

Q: Can the IC694TBB032 assembly be plugged or unplugged while the host I/O module is energized?

A: No. Active field-side voltage paths must be fully isolated before removing or installing the terminal block. Disconnecting the terminal assembly under live electrical load risks generating high-voltage inductive transients that disrupt backplane bus communication velocity states or cause localized physical contact pitting.

Q: What is the mechanical torque limit for the internal wire clamping screws?

A: The box-style connection screws must be tightened to a nominal torque rating of 0.56 Nm (5 in-lbs). Exceeding this torque threshold risks stripping the threaded terminal cage or shearing fine copper wire strands inside the terminal cavity.

Field Installation Guidelines

• Secure the mechanical terminal block onto the front latching pins of the compatible RX3i I/O module, pivoting the assembly inward until the physical locking tabs click completely into place.
• Strip field wires to a standard length of 8 mm before insertion into the clamping terminal block cages to prevent exposed copper runs from shorting adjacent circuits.
• Route all low-level field signal conductors through separate panel wire trays isolated from high-current 415 VAC motor starters and switching relays.
• Ground all external twisted-pair instrumentation shield wires directly to a central cabinet earth busbar using low-impedance grounding clamps.
