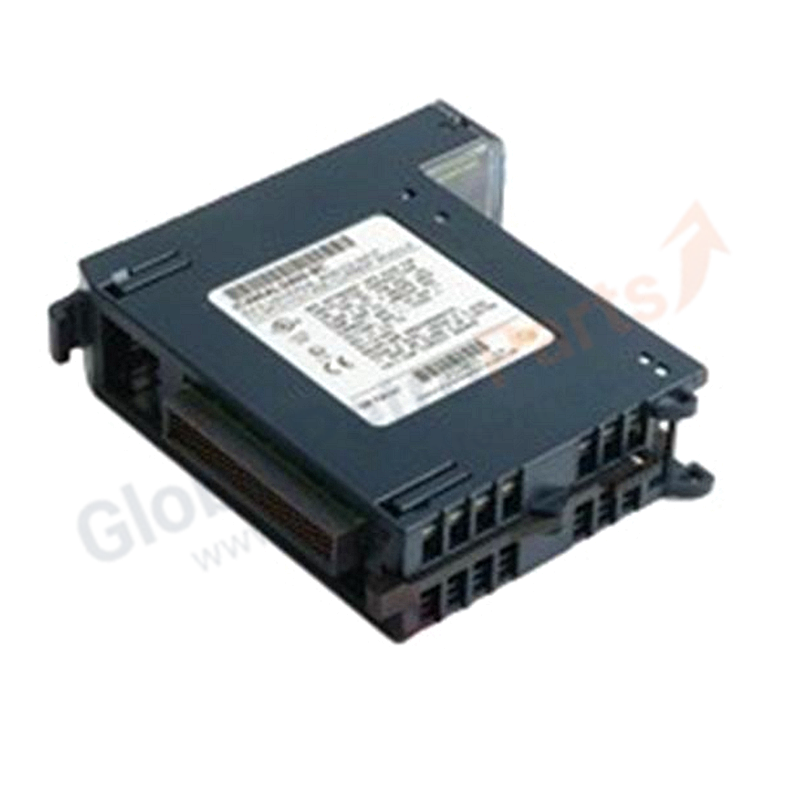

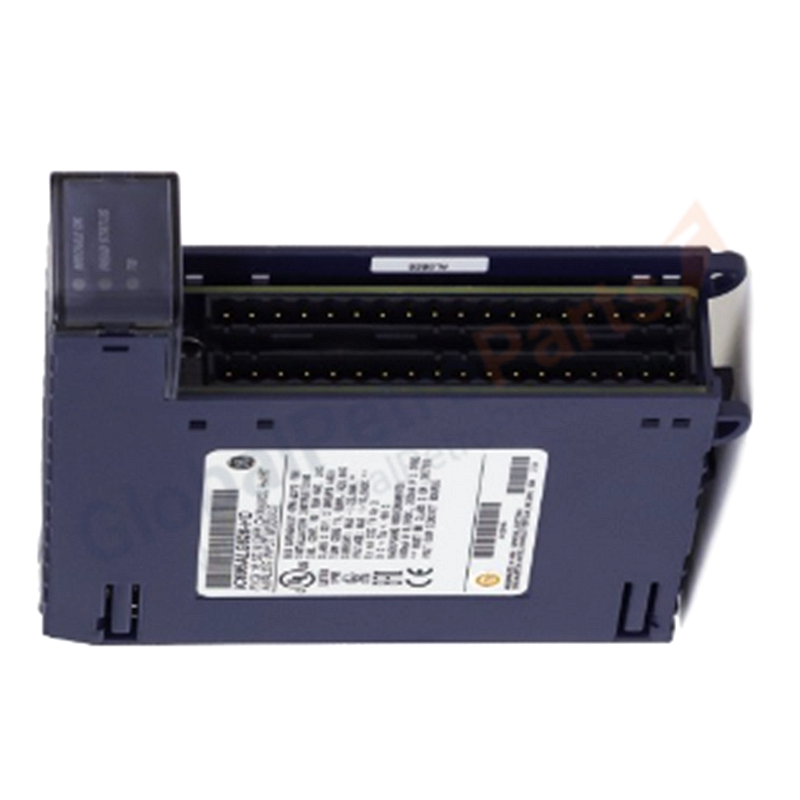

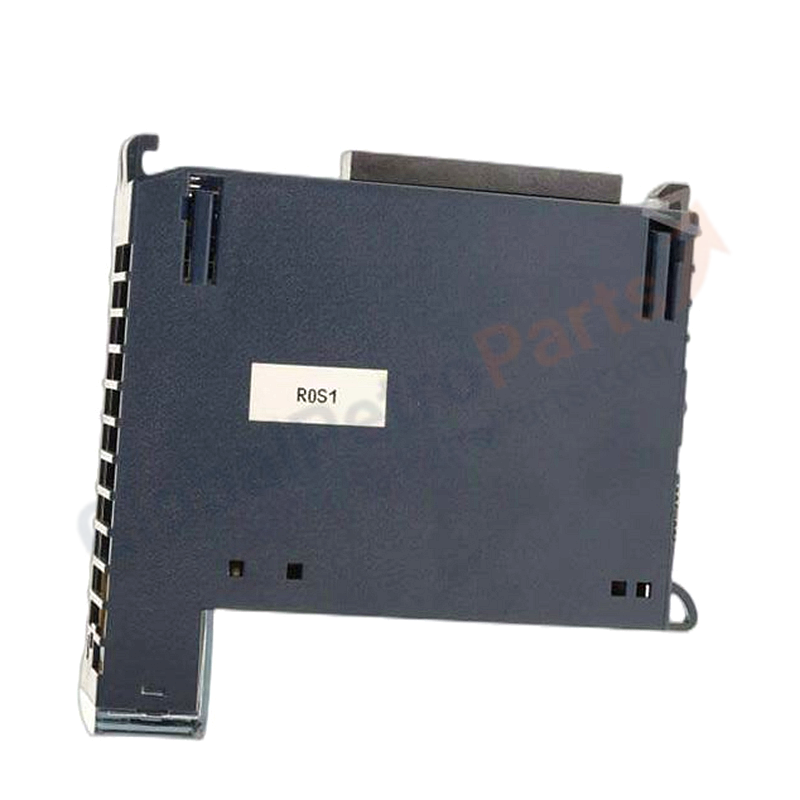

GE Fanuc IC695ALG106 Isolated Analog Input Module - 6 Channel

Product Summary

The GE IC695ALG106 is a 6-channel isolated analog input module for PACSystems RX3i Universal Backplanes. Each channel supports multiple voltage and current ranges and is individually isolated to improve noise immunity. The module uses a 16-bit ADC and provides configurable filtering, scaling, alarms, diagnostics, and open-circuit detection. It is fully software-configurable and supports hot-swapping.

Core Specifications

• Model: IC695ALG106
• Product Type: Isolated Analog Input Module
• Backplane Compatibility: RX3i Universal Backplane
• Number of Channels: 6 isolated input channels
• Input Ranges (Voltage): ±10 V, 0–10 V, ±5 V, 0–5 V, 1–5 V
• Input Ranges (Current): 0–20 mA, 4–20 mA, ±20 mA
• Resolution: 16-bit ADC
• Input Impedance (Voltage): 500 kΩ
• Input Resistance (Current): 250 Ω ±1%
• Open Circuit Detection: 1 second maximum
• Data Format: IEEE 32-bit floating point or 16-bit integer
• Filter Options: 8 Hz, 12 Hz, 16 Hz, 40 Hz, 250 Hz, 1000 Hz
• Backplane Current: 230 mA @ 5 V; 320 mA @ 3.3 V
• Power Dissipation: 2.97 W maximum (all channels at 20 mA)
• Thermal Derating: None
• Overvoltage Protection: ±35 VDC continuous
• Overcurrent Protection: ±35 mA continuous
• Slot Requirement: Single slot
• Terminal Block Requirement: IC694TBB032 / IC694TBB132 / IC694TBS032 / IC694TBS132

Functional Features

• Individually isolated analog input channels.
• Software-configurable ranges, scaling, and offsets.
• High, low, high-high, and low-low alarm thresholds per channel.
• Rate-of-change alarms for both positive and negative transitions.
• Diagnostic fault reporting and point-level fault contacts.
• Terminal block insertion/removal detection.
• Open-circuit detection for voltage and 4–20 mA inputs.
• Hot-swappable module design.
• Flash memory for firmware upgrades.

Installation Notes

• Install the module in an RX3i Universal Backplane slot.
• Use only the specified terminal blocks; extended versions required for shielded wiring.
• Ensure wiring matches the configured input type (voltage or current).
• Maintain environmental conditions within RX3i system specifications.
• Verify CPU firmware version is 5.0 or later.
• Observe isolation and grounding practices to minimize noise.

FAQ

• Are all channels isolated?
  Yes. All six channels are individually isolated.
• Does IC695ALG106 support hot-swapping?
  Yes. The module can be inserted or removed from a powered backplane.
• Can the module detect open circuits?
  Yes. Open-circuit detection is supported for voltage and 4–20 mA inputs.
• Is a terminal block included?
  No. Terminal blocks must be ordered separately.
