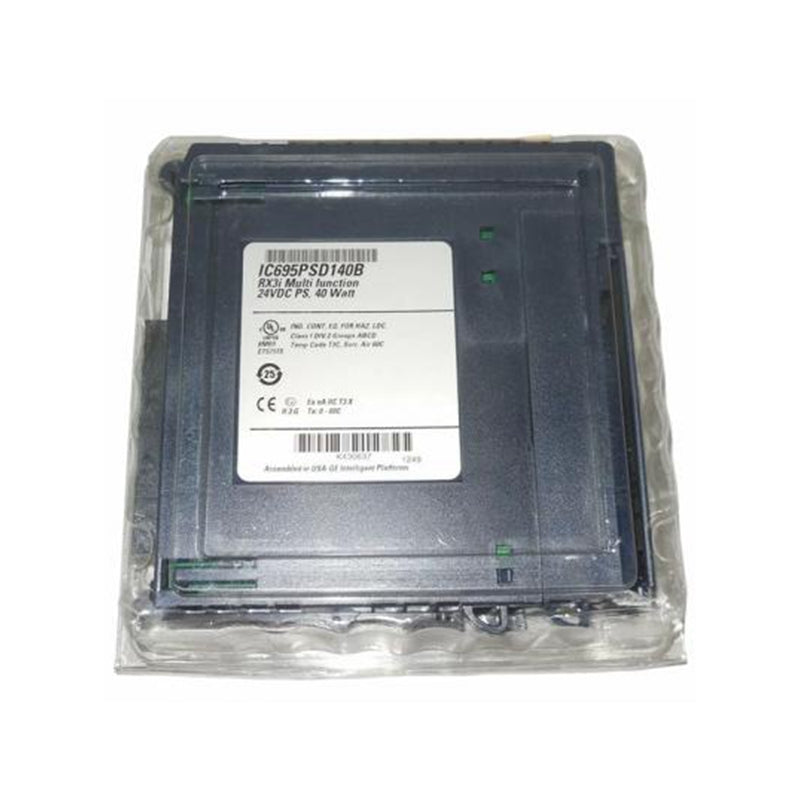

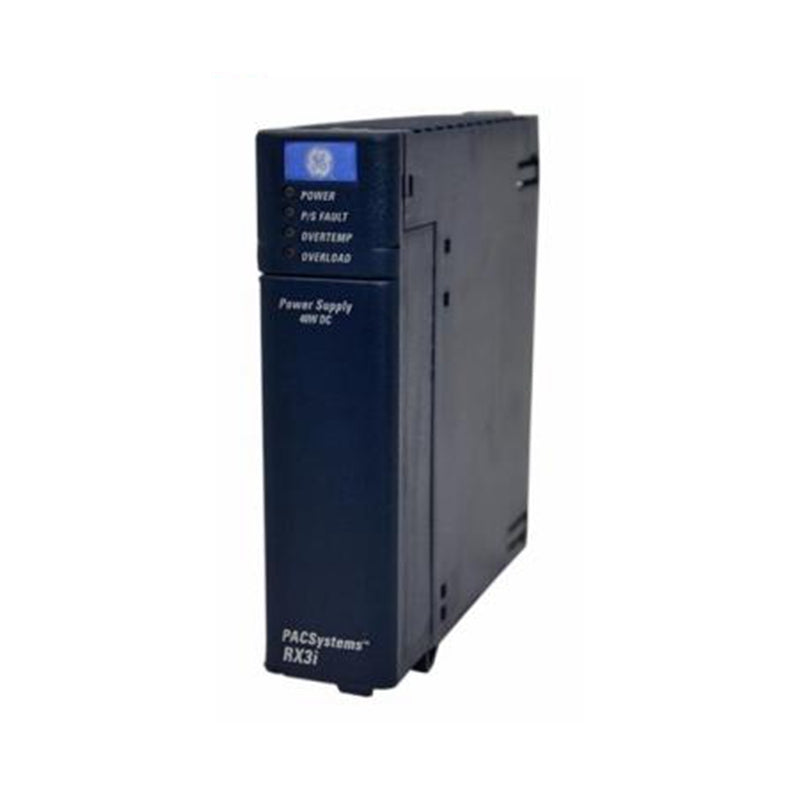

GE Fanuc IC695PSD140 40-Watt DC Power Supply Module

Product Overview

The GE IC695PSD140 is a 40-Watt multi-output DC power supply for the Emerson PACSystems RX3i programmable automation controller platform. It delivers flexible power solutions with support for load sharing and redundancy configurations, making it ideal for critical industrial automation applications requiring high availability.

Key Specifications

• Model Number: IC695PSD140
• Series: PACSystems RX3i
• Product Type: Multi-Output Power Supply Module
• Input Voltage: 18–30 VDC (nominal 24 VDC); or 85–264 VAC / 100–300 VDC
• Input Power: 60W maximum at full load
• Total Output Power: 40W maximum
• Output Voltages:
  • +3.3 VDC: 0–9A (3.1–3.5 VDC range)
  • +5.1 VDC: 0–6A (5.0–5.2 VDC range)
  • +24 VDC: 0–1.6A (19.2–28.8 VDC range)
• Ripple & Noise: 150 mV maximum
• Ride-Through Time: 20 ms
• Inrush Current: 4 Amps for 100 milliseconds
• Slots Required: 1 slot in RX3i universal backplane
• Wire Size: #14–22 AWG recommended
• Terminal Current Rating: 6 Amps maximum per terminal
• Terminal Torque: 4.4 in-lb (0.5 N·m)
• Isolation: None
• Operating Temperature: 0°C to 60°C (or -40°C to +70°C per some sources)
• Storage Temperature: -40°C to +85°C
• Efficiency: > 85%
• Protection Rating: IP20
• Dimensions: 155 × 60 × 120 mm (6.1 × 2.36 × 4.72 in)
• Weight: 0.5 kg (500g)

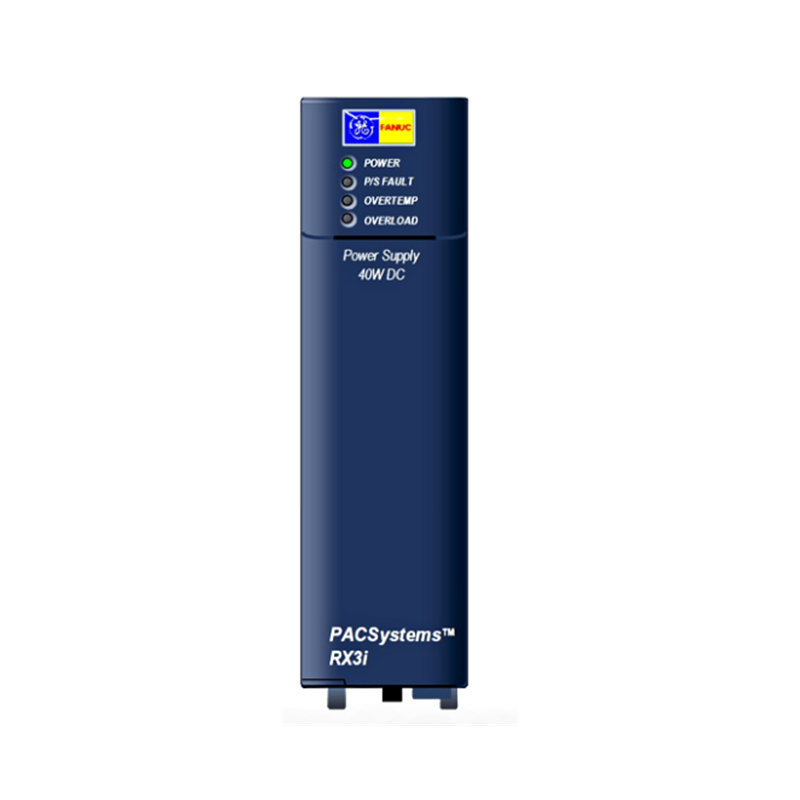

Status Indicators

• Power LED: Green/Amber — indicates power status
• P/S Fault LED: Red — power supply fault detection
• Overtemperature LED: Amber — thermal overload warning
• Overload LED: Red — output overload condition

Core Features

• Multi-output design delivers +3.3V, +5.1V, and +24V from a single module
• Supports load sharing with up to 3 additional units in one backplane
• Supports redundancy configurations for critical applications
• High efficiency (>85%) minimizes energy wastage and operational costs
• Compact single-slot design for space-constrained installations
• Compatible with all RX3i CPUs and I/O modules

Applications

• RX3i PACSystems power distribution
• Critical automation systems requiring redundant power
• Manufacturing automation with high power demands
• Energy management and power generation facilities

FAQ

Q: Can multiple IC695PSD140 modules be used together?
A: Yes, up to 4 modules can be daisy-chained in one backplane for load sharing or redundancy.

Q: What is the difference between IC695PSD140 and IC695PSA040?
A: The IC695PSD140 is a multi-output DC power supply (40W) with redundancy support. The IC695PSA040 is a single-output AC power supply with different voltage and current ratings.

Installation Guide

1. Power down the RX3i rack before installation.
2. Insert the IC695PSD140 into any slot of the RX3i universal backplane.
3. Connect input power (18–30 VDC or 85–264 VAC) to the terminal block.
4. Verify LED status indicators after power-up.
5. For redundancy, install a second IC695PSD140 and configure via RX3i software.

Selection Tips

• For 10A redundant power supply, consider IC695PSD040.
• For non-redundant AC power supply, consider IC695PSA040.
• Verify total system power consumption before selecting number of power supplies.
• Use #14–22 AWG wire for proper terminal connection.
