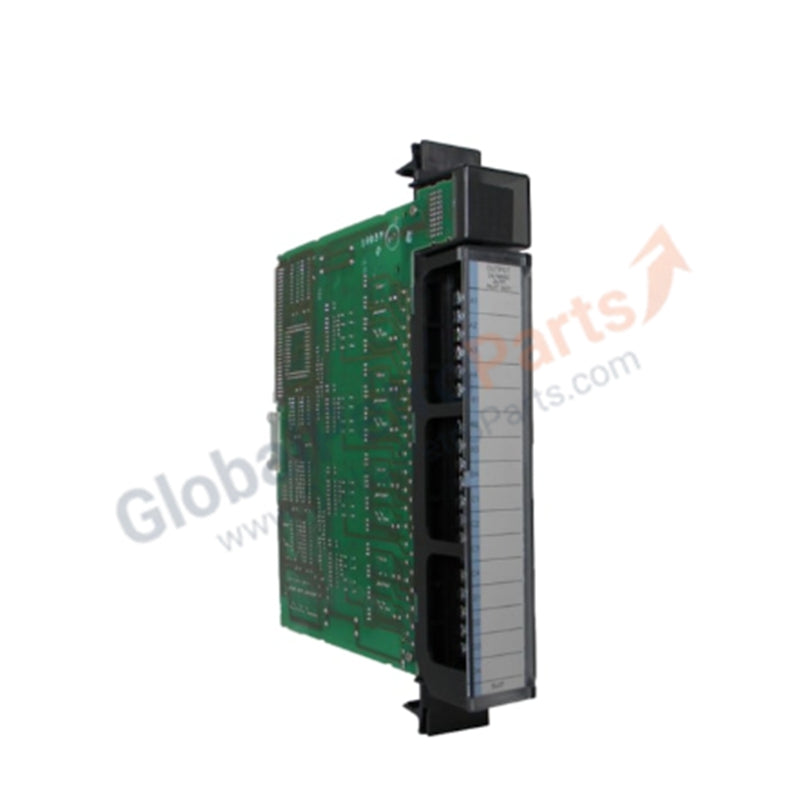

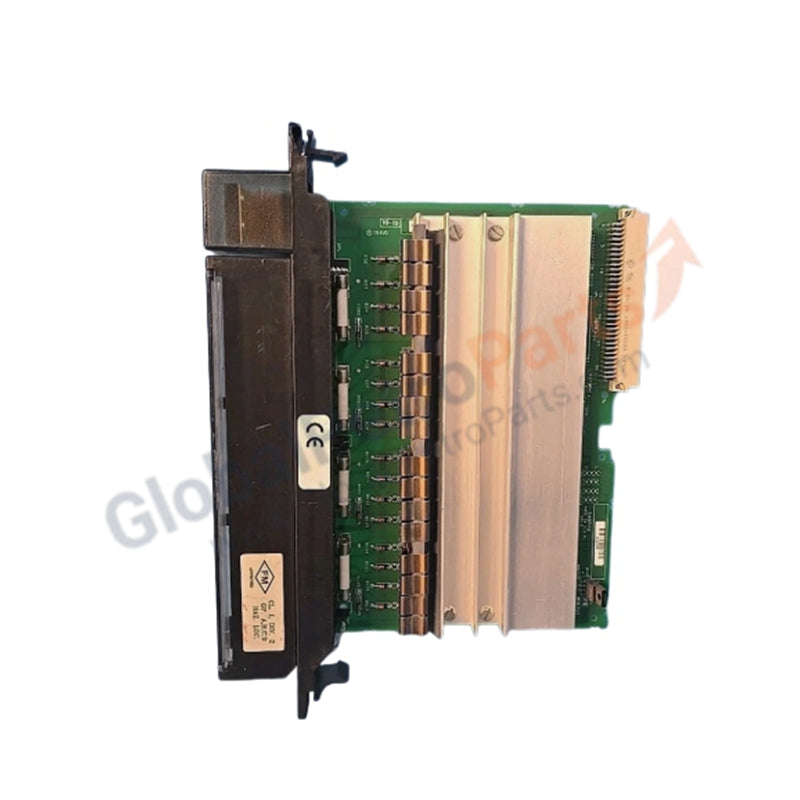

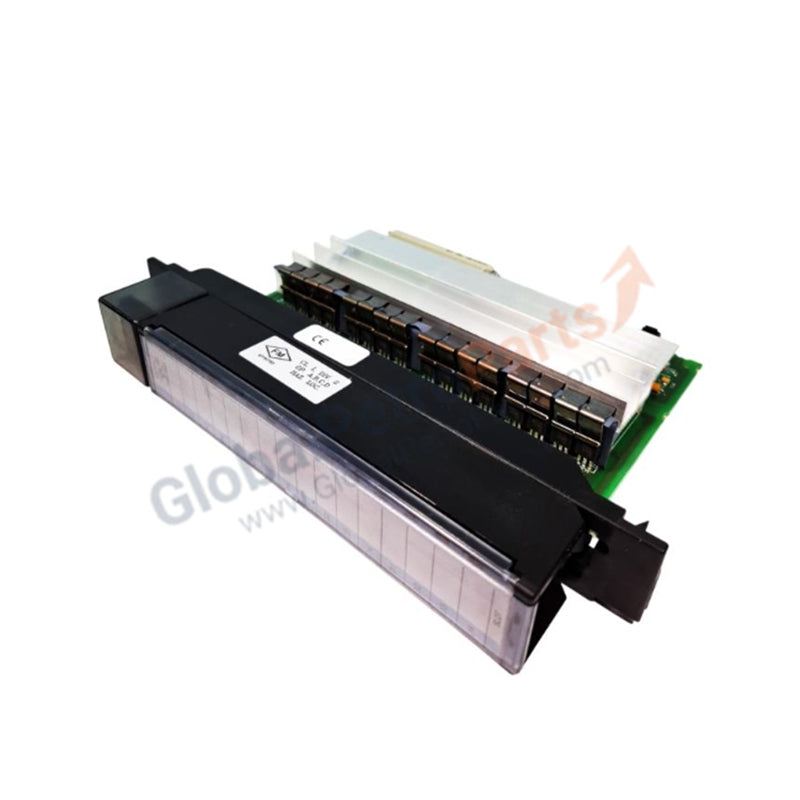

GE Fanuc IC697MDL740 Series 90-70 16-Point 24/48VDC 2A Output Module

Product Overview

The GE Fanuc IC697MDL740 serves as a high-capacity discrete output interface for the Series 90-70 PLC ecosystem. This module provides 16 output points designed to drive a variety of DC loads, including solenoids, motor starters, and indicators. It operates across a versatile voltage range of 24 to 48 VDC, making it a critical component for robust industrial power distribution. We provide this module in 100% Brand New condition, ensuring factory-original performance and maximum electrical service life for your legacy automation racks.

Technical Specifications

Engineering Advantages

• High-Current Load Handling: Unlike standard low-power cards, the IC697MDL740 manages up to 2 Amps per point. This high current rating allows the PLC to trigger large contactors and heavy-duty solenoids directly, often eliminating the need for intermediate interposing relays.

• Rapid Switching Dynamics: A symmetrical 2ms on/off response time enables high-speed machine synchronization. This low latency improves accuracy in fast-cycling applications, such as sorting systems or high-speed assembly lines where timing precision dictates throughput.

• Superior Surge Protection: The module withstands a peak inrush current of 20 Amps for 20ms. This characteristic protects internal circuitry from the high-current spikes typically generated when inductive loads or incandescent lamps first energize.

• Industrial-Grade Isolation: 1500V isolation separates the field-side wiring from the sensitive logic backplane. This barrier prevents electrical transients or field-side faults from migrating into the CPU, safeguarding the entire PLC system against catastrophic failure.

FAQs

• What is the significance of the 4 Amp per group limit?

  While each individual point can handle 2 Amps, the internal common circuitry limits the total current for a specific group to 4 Amps. Engineers must calculate total simultaneous load demands to ensure the group threshold remains within specification during peak operation.

• Does the IC697MDL740 require external fuses?

  Yes. To protect both the module and your field-side equipment, you should install external fuses on the output lines. This prevents permanent damage to the module's output transistors in the event of a field-side short circuit.

• Can this module operate at 12VDC?

  No. The IC697MDL740 requires a minimum of 20VDC to ensure reliable switching. Operating below the rated 24-48V nominal range may cause the output transistors to fail to latch or result in excessive voltage drops.

• Is this a refurbished or used product?

  We guarantee this IC697MDL740 is 100% Brand New and unused. This ensures the output transistors and internal optoisolators possess their full factory-rated thermal and electrical resistance, providing significantly higher reliability than "tested" used pulls.
