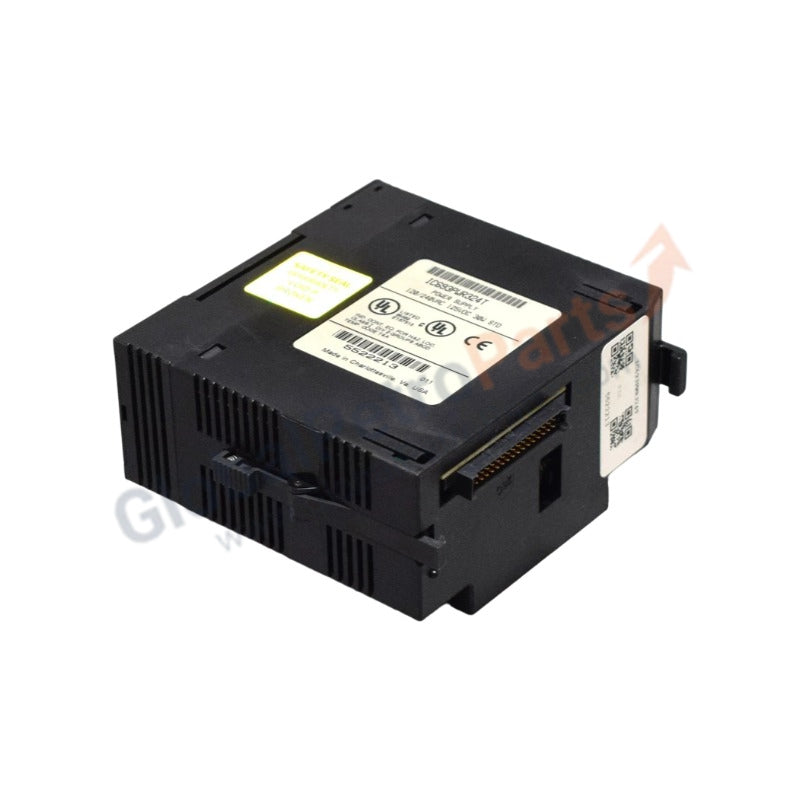

GE Fanuc Power Supply Modules Series 90-30 IC693PWR324

Product Overview

The GE Fanuc IC693PWR324 serves as the primary IC693PWR324 Power Supply Module utilized to execute electrical energy conversion across Series 90-30 platforms. Slot-mounted within the standard backplane chassis, the hardware converts an external direct current source into regulated electrical potentials required to power internal logic processing boards and local input/output loops.

Hardware Specifications

Industrial Control & Deterministic Backplane Communications

The hardware infrastructure interfaces with the controller chassis backplane to secure voltage tracking parameters across all operational nodes. The underlying circuitry provides baseline execution paths that scale relative to system I/O density scaling profiles when expansion racks are connected. The hardware maintains rigid execution layers that work beneath central system logic, verifying firmware flash compatibility profiles during runtime startup checks on networks configured for Profinet or EtherNet/IP deterministic networks.

Frequently Asked Questions

Q: Does the IC693PWR324 module provide internal isolation between the input terminals and the 24 VDC outputs?

A: Yes, the module architecture provides continuous galvanic isolation rated at 1500 VAC between the primary 24 VDC input supply terminal block and the internal backplane logic rails, as well as the 24 VDC isolated output path.

Q: How can an engineering technician identify an overcurrent fault condition on the module output rails?

A: The module front plate contains a single green PWR LED indicator. If an internal current draw exceeds the 30 W physical threshold or a direct short circuit occurs across the output lines, the internal electronic protection loops trigger a shutdown, disabling the outputs and extinguishing the PWR LED.

Field Installation Guidelines

• Chassis Alignment: Ensure all upstream electrical supply lines are disconnected. Slide the rear alignment pins of the module into the leftmost slot of the Series 90-30 baseplate. Pivot the module inward until the upper chassis tab clicks into the locked position, and fasten the bottom retaining screw.
• Terminal Screw Torque: Strip the source power insulation back 7 mm. Insert the bare copper paths beneath the terminal block pressure plate screws and tighten to a maximum torque specification of 0.82 Nm (7.3 in-lbs).
• System Ground Configuration: Connect a low-impedance copper wire from the dedicated safety ground terminal on the module strip directly to the central cabinet enclosure star ground bar to minimize high-frequency electronic noise.
• Isolated Supply Routing: When utilizing the +24 VDC Isolated Output (terminals 5 and 6) for instrument loop excitation, run the conductors through separate low-voltage panel wire trays isolated from three-phase AC power lines.
