GE Fanuc QPJ-2D101-S2P QuickPanel Jr. HMI Terminal

Description

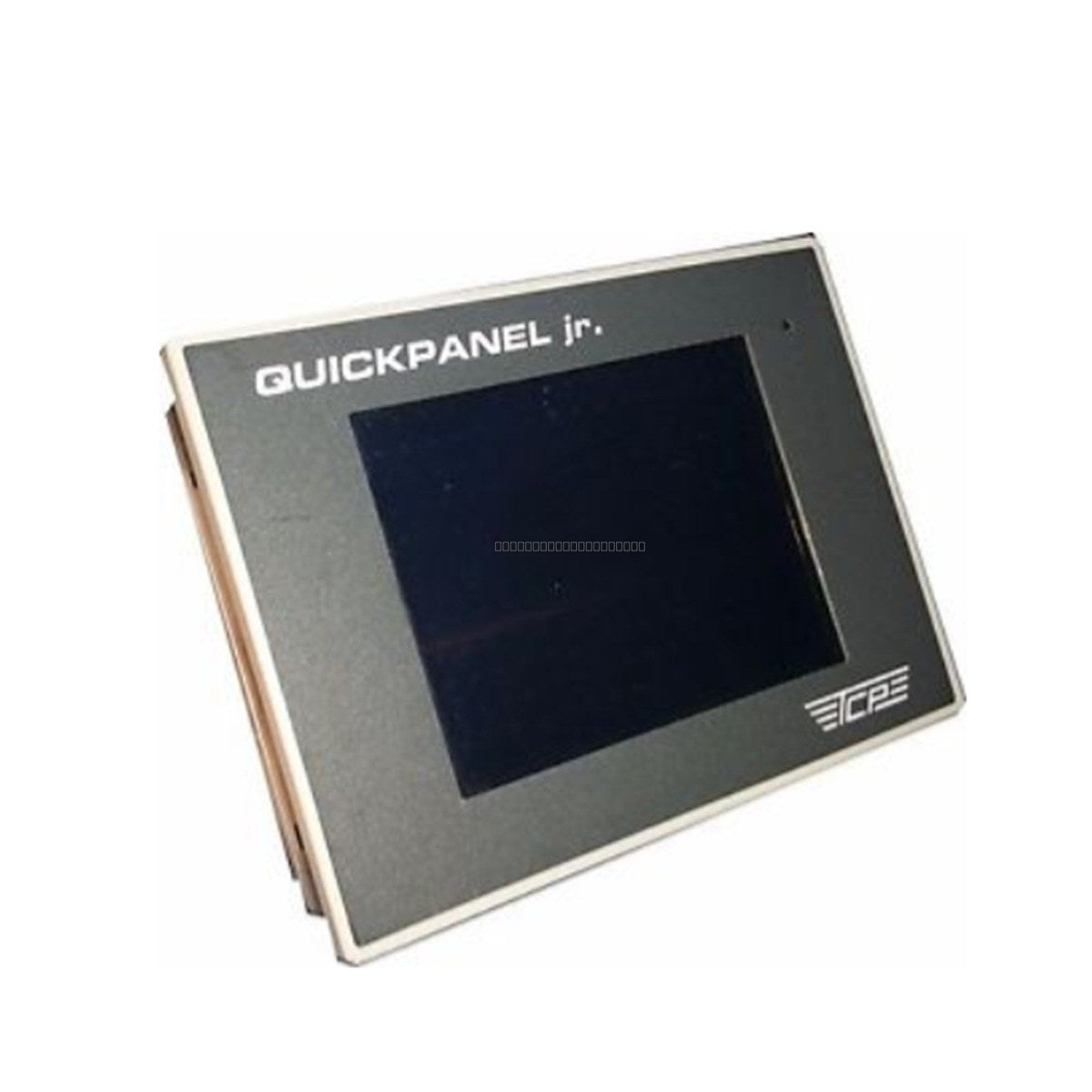

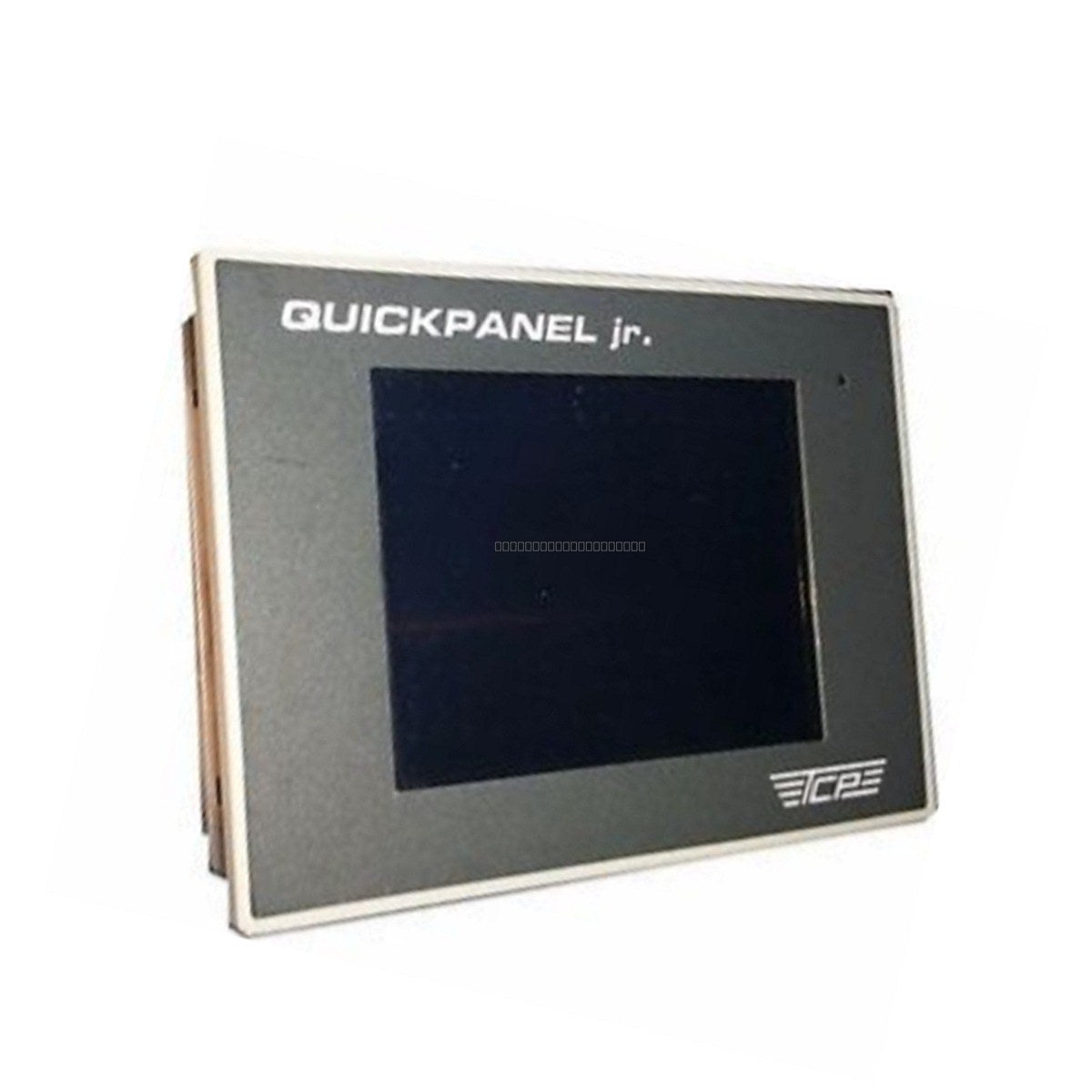

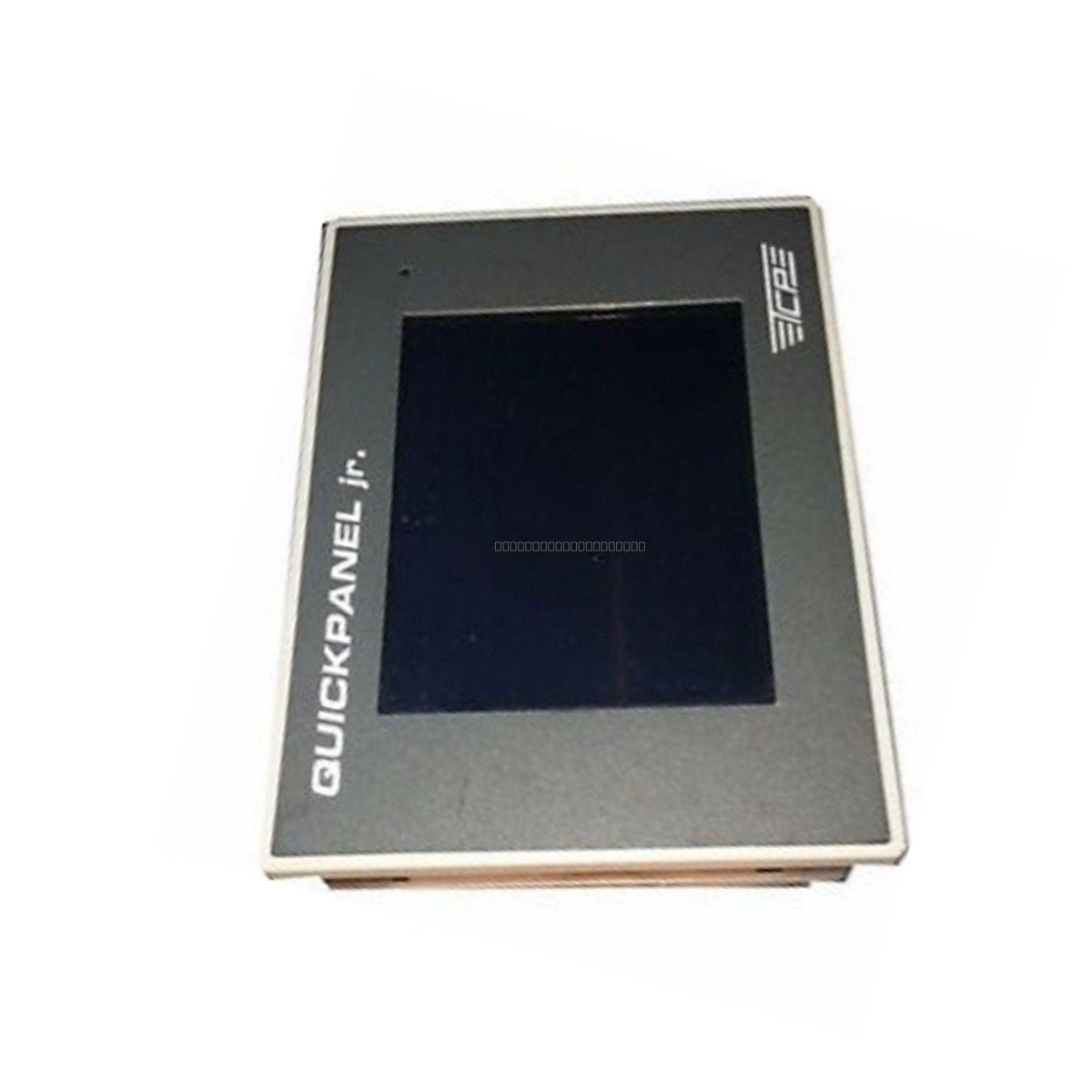

The GE Fanuc QPJ-2D101-S2P is a compact Human Machine Interface (HMI) terminal from the QuickPanel Jr. series. Engineered to replace traditional hard-wired push-button and indicator light configurations, this unit provides a centralized interface for monitoring and controlling industrial processes. Its 4.7-inch color STN display is designed for high-visibility feedback in space-constrained environments, such as discrete manufacturing and machine control stations, helping to reduce system response times and minimize downtime associated with legacy interface failures.

Features

• Compact Display: 4.7-inch color STN LCD with 320 x 240 pixel resolution for clear graphical representation of machine status.
• Memory: Integrated 256 KB memory for local storage of application screens and process data.
• Robust Enclosure: Rated NEMA Type 4X/12 and IP65, ensuring protection against dust, water, and environmental contaminants in harsh industrial settings.
• Universal Connectivity: Supports multi-protocol communication with a wide range of major PLCs and industrial network architectures.
• Software Compatibility: Fully compatible with QuickDesigner version 3.7 for efficient programming and configuration.

Applications

The QPJ-2D101-S2P is ideal for machine-level control, operator interface stations, and discrete manufacturing applications where space is limited but high-reliability visualization is required.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the panel cutout is prepared according to manufacturer specifications to maintain the NEMA/IP seal.
• Power Supply: Connect to a stable 24 VDC power source. Verify polarity before applying power to avoid internal damage.
• Grounding: Use a dedicated ground connection to minimize electrical noise and protect against EMI/RFI interference.
• Environment: Install in a location free from excessive vibration, extreme temperatures, and direct exposure to corrosive chemicals.
• Handling: Use standard ESD precautions during installation to prevent damage to internal circuitry.

FAQ

Is this unit compatible with modern PLC systems?

Yes, the QPJ-2D101-S2P supports multi-protocol communication, allowing it to interface with a wide range of major PLC brands and industrial network architectures.

What software is required to program this HMI?

This unit is designed for use with QuickDesigner version 3.7.
