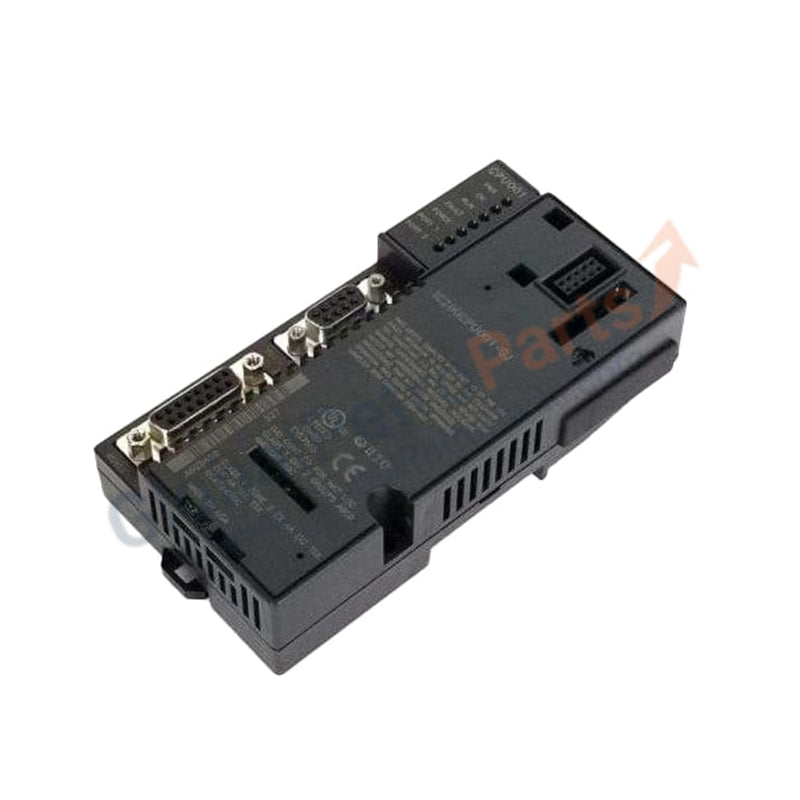

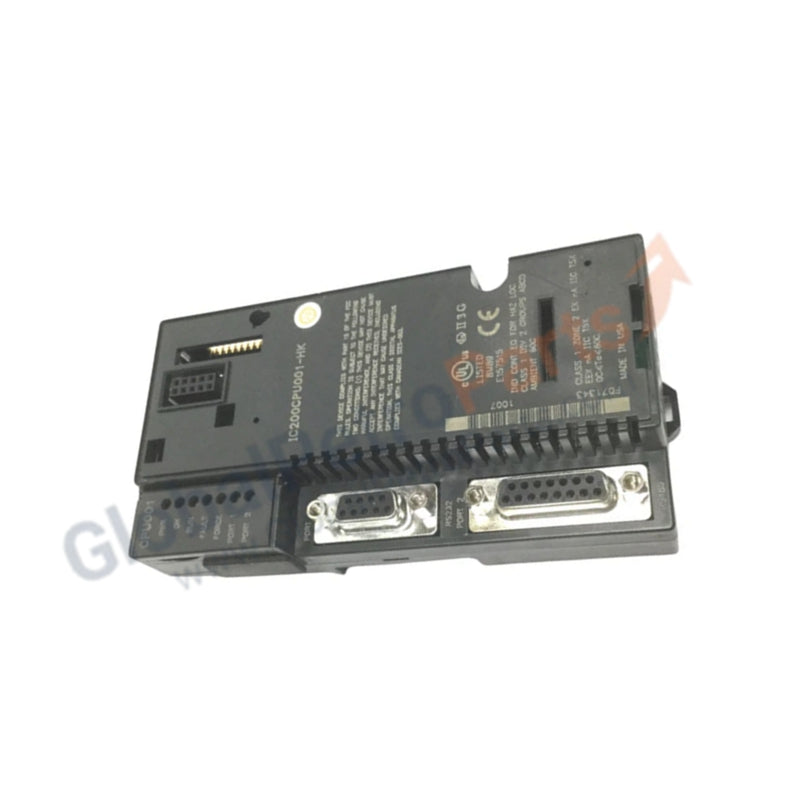

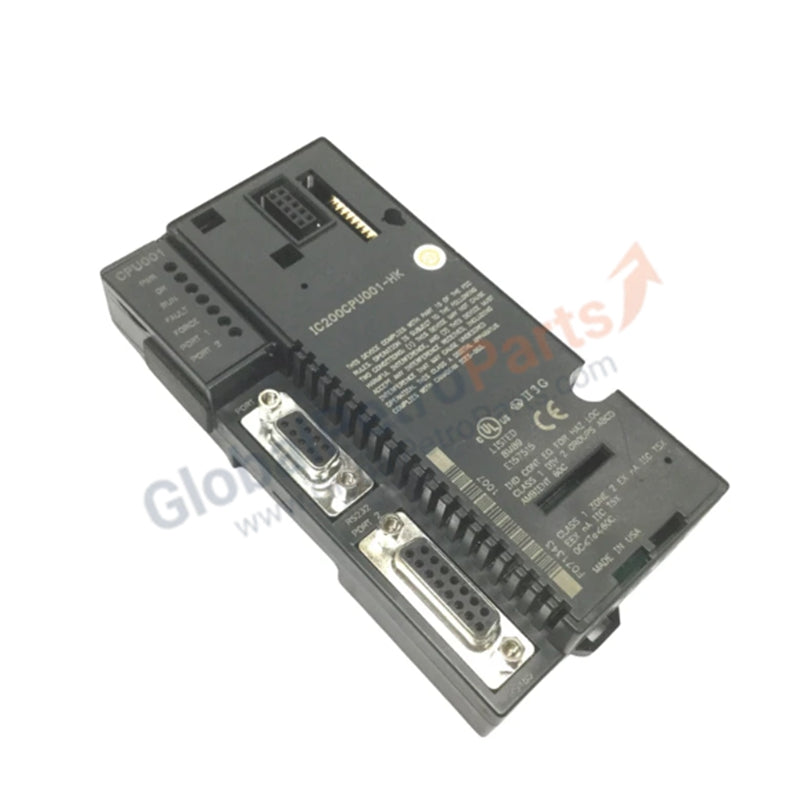

GE Fanuc VersaMax IC200CPU001 | Configurable CPU Module

Product Description

The GE Fanuc VersaMax IC200CPU001 is a configurable CPU module designed to serve as the central processing unit for VersaMax PLC systems. It supports multiple programming languages, high-speed logic execution, and robust communication protocols, making it a versatile solution for industrial automation. With built-in memory, floating-point math support, and dual serial ports, this CPU provides reliable control and efficient data handling in distributed environments.

Technical Specifications

• Manufacturer: GE Fanuc Emerson

• Model / Part Number: IC200CPU001

• Product Line: VersaMax

• Product Type: CPU Module

• Weight: 0.25 lbs (0.11 kg)

• User Memory: 34 KB configurable for program, registers, and I/O analog words

• Internal Memory: 384 KB configurable system memory

• Memory Type: Flash and battery-backed RAM

• Programming Languages Supported: Ladder Diagram, Instruction List

• Floating Point Math: Supported

• Discrete Internal Bits: 1024 points

• Discrete Inputs: 2048 points

• Discrete Outputs: 2048 points

• Temporary Bits: 256 points

• Global Discrete Bits: 1280 points

• Modbus Registers: 32

• Boolean Execution Speed: 1.8 ms per 1K logic operations

• Typical Scan Rate: 1.8 ms per 1K boolean contacts

• Communication Ports:

• RS-232 (1 port)

• RS-485 (1 port)

• Supported Protocols: Modbus RTU Slave, SNP Slave, Serial I/O

• Real-Time Clock: Battery-backed, accuracy ±100 ppm (≈9 seconds/day)

• Override Functions: Supported

• Backplane Current Consumption:

• 140 mA at 5 VDC

• 100 mA at 3.3 VDC

Application Scenarios

The IC200CPU001 is ideal for small to mid-range automation systems requiring flexible programming and reliable communication. It is commonly used in machine control, process automation, and distributed I/O networks where compact yet powerful CPU modules are needed.

FAQ

Q: What programming languages are supported?  A: Ladder Diagram and Instruction List.

Q: Does the CPU support floating-point operations?  A: Yes, floating-point math is supported.

Q: What communication protocols are available?  A: Modbus RTU Slave, SNP Slave, and Serial I/O.
