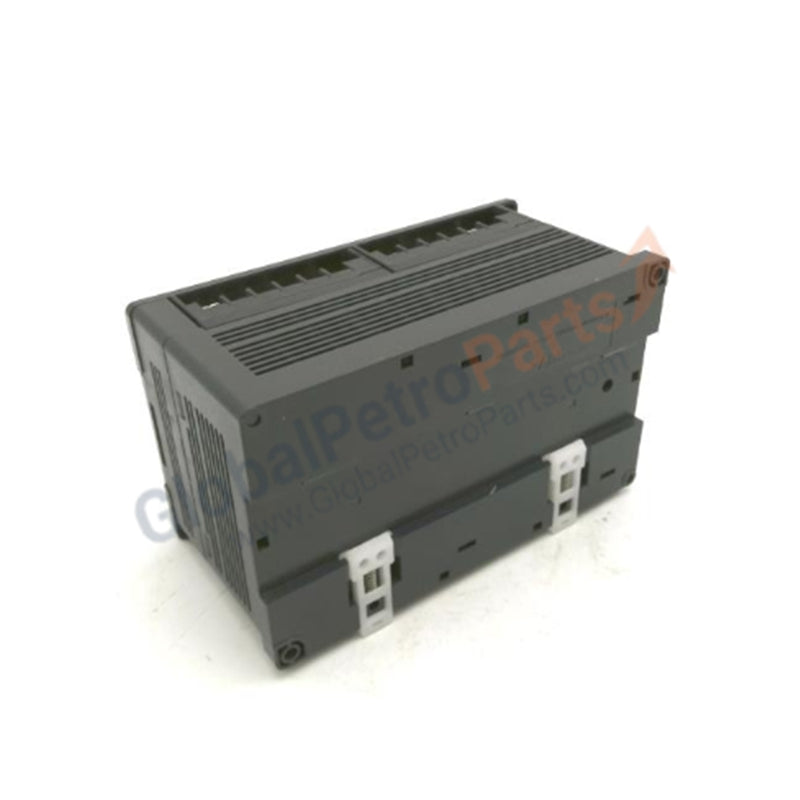

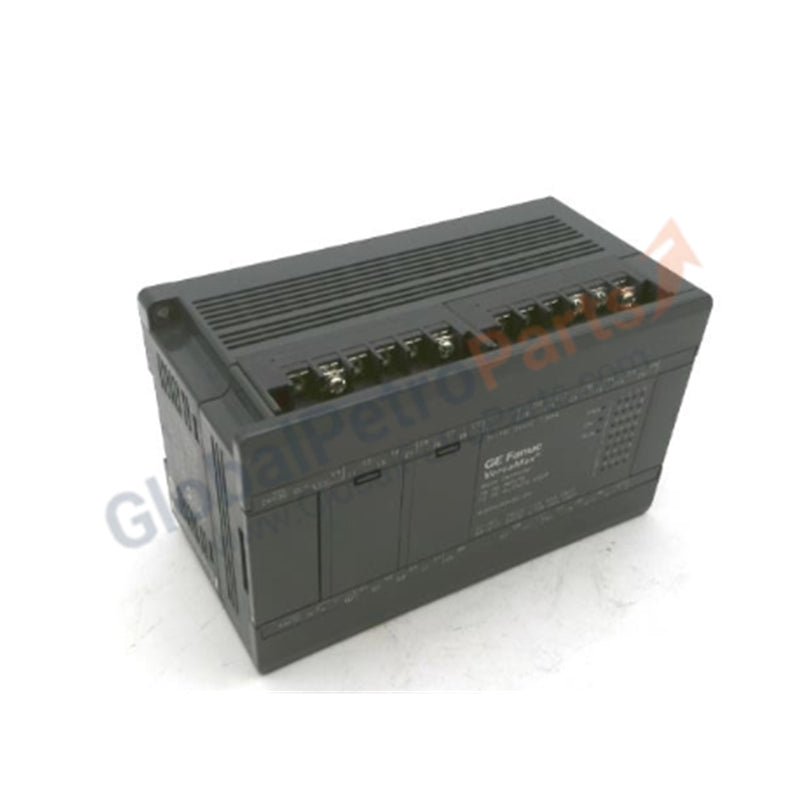

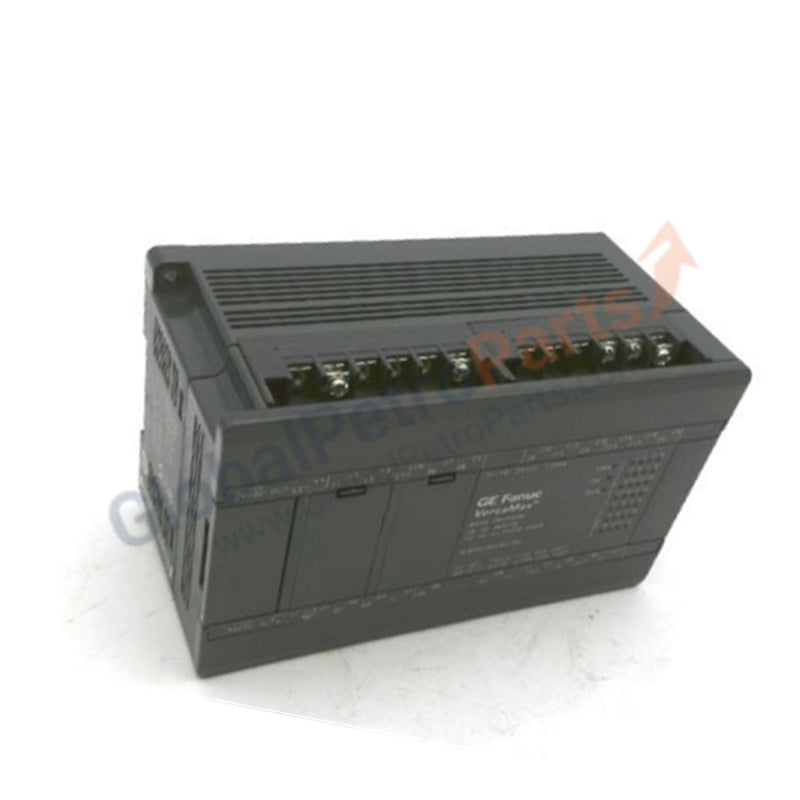

GE Fanuc VersaMax IC200UDD120 28-Point Micro PLC Controller Module (24 VDC)

Product Description

The GE Fanuc VersaMax IC200UDD120 is a compact micro PLC module designed for distributed control applications. It integrates both input and output functionality, offering 28 total points with reliable DC operation. With built-in short circuit protection, efficient power handling, and robust isolation, this unit ensures dependable performance in industrial automation environments.

Technical Specifications

• Manufacturer: GE Fanuc Emerson

• Model / Part Number: IC200UDD120

• Product Line: VersaMax Micro PLC

• Product Type: Programmable Logic Controller Module

• Weight: 2.00 lbs (0.91 kg)

• Inputs: 16 DC inputs, 24 VDC nominal

• Outputs: 12 DC outputs, 24 VDC nominal

• Rated Output Voltage: 24 VDC

• Input Voltage Range: 0–30 VDC

• DC Power Range: 19.2–30 VDC

• Rated Input Voltage: 24 VDC

• Input Current: 7.5 mA typical

• Input Resistance: 2.8 kΩ

• Input Power Supply Rating: 5 W

• Protection Features: Short circuit protection included

• Lifecycle Status: Active

Application Scenarios

The IC200UDD120 is ideal for compact automation systems requiring both monitoring and control of DC signals. It is commonly used in packaging machinery, conveyor systems, and process control environments where reliable 24 VDC operation is essential.

FAQ

Q: How many I/O points does the IC200UDD120 provide?  A: 28 points total, with 16 inputs and 12 outputs.

Q: What is the rated operating voltage?  A: 24 VDC nominal, with a range of 19.2–30 VDC.

Q: Does the module include protection features?  A: Yes, it includes short circuit protection.
