GE IC200CHS002 VersaMax 264VAC Box-Style Mounting Base

Brief Product Description

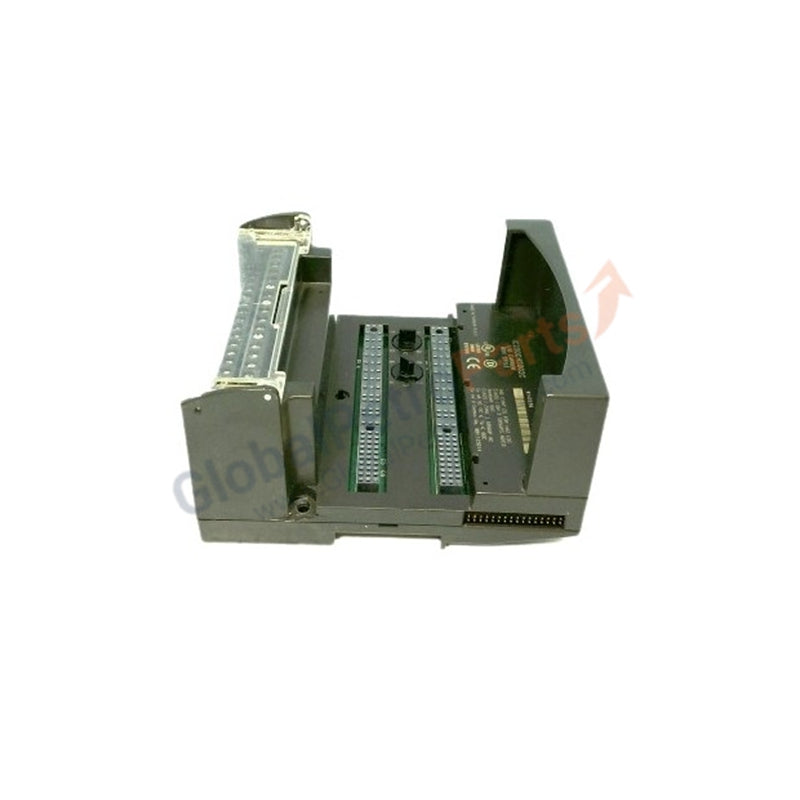

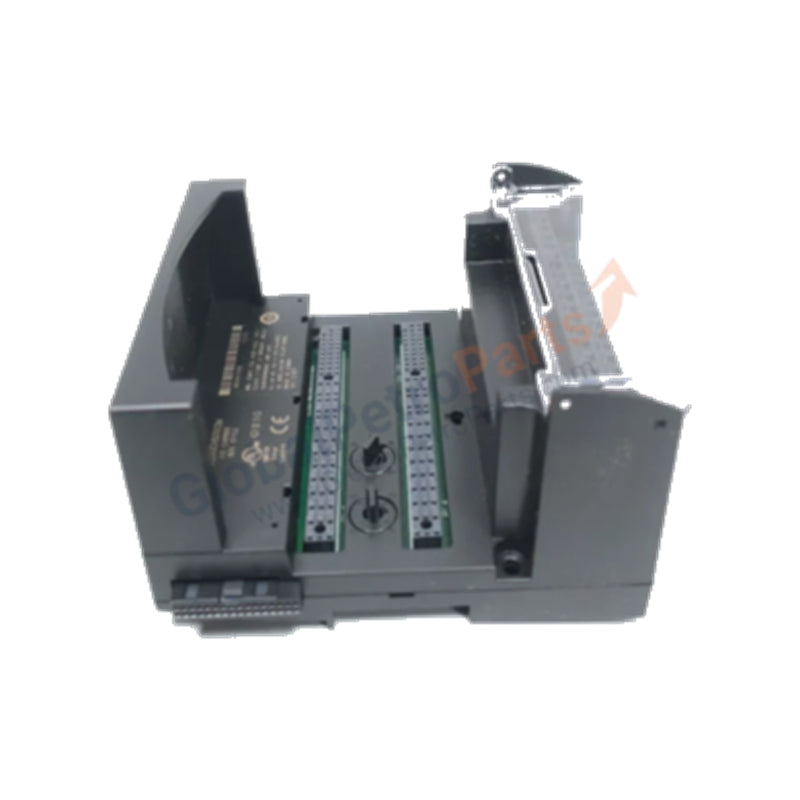

The GE IC200CHS002 is a high-density box-style I/O carrier from the VersaMax family, designed for secure field wiring and backplane communication. Featuring 36 integrated box-style terminals, this carrier provides a compact and vibration-resistant mounting solution for single I/O modules. It supports a wide voltage range up to 264 VAC, making it an essential component for both discrete and analog distributed I/O configurations.

Product Description

VersaMax Box-Style Connectivity Architecture

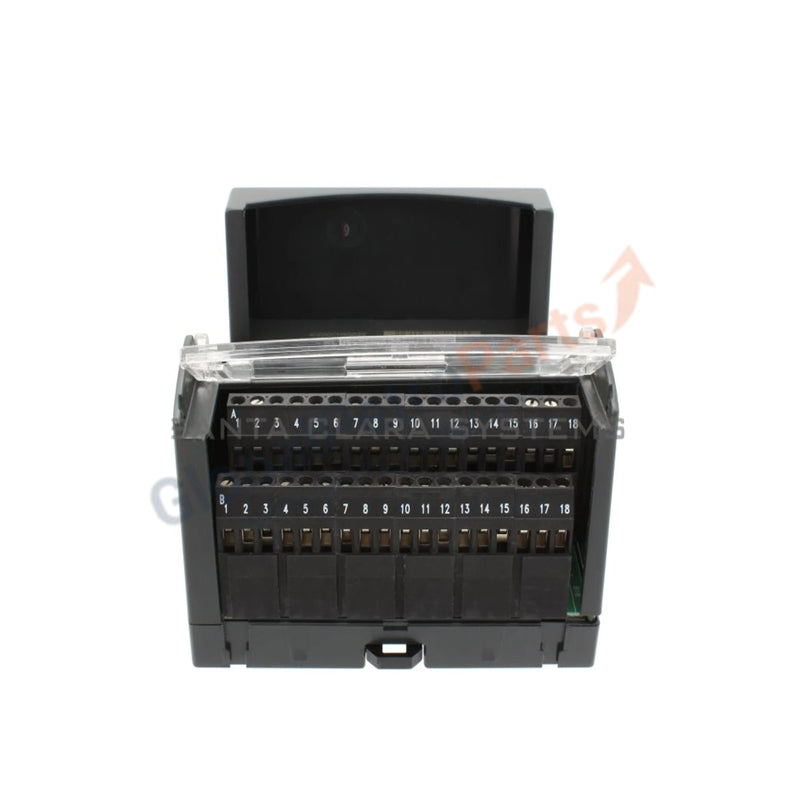

The IC200CHS002 (Part Number IC200CHS002) is a fundamental mounting base that facilitates the electrical and mechanical integration of VersaMax I/O modules into a PLC system. Unlike the barrier-style CHS001, the IC200CHS002 utilizes a box-style terminal design. This configuration is preferred for applications where space is at a premium and high-density wiring is required, as the terminals are designed to securely capture wires within a protected housing.

This carrier manages the distribution of logic power and communication signals through the VersaMax backplane bus. It is engineered for high-availability industrial environments, supporting up to 2 Amps per point and 8 Amps per power/ground segment. The integrated field termination design ensures a low-impedance path for signals, which is critical for maintaining accuracy in analog modules and timing in high-speed discrete circuits.

Detailed Technical Specifications

The following technical data details the electrical, mechanical, and installation requirements for the IC200CHS002.
