GE IC200UDR005 VersaMax Micro 40-point PLC with 24 VDC Power Supply Module

Product Summary

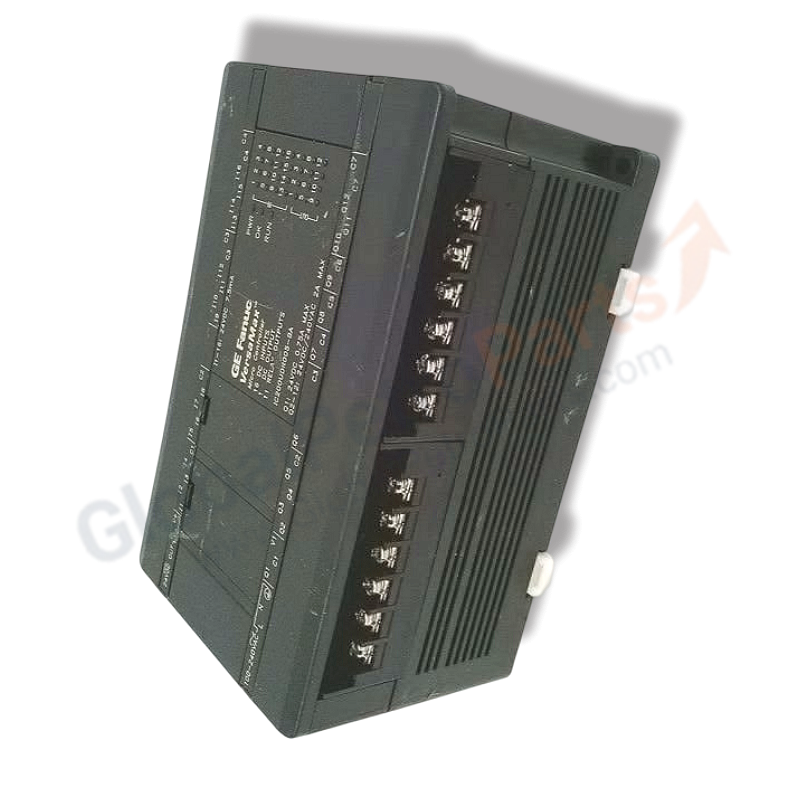

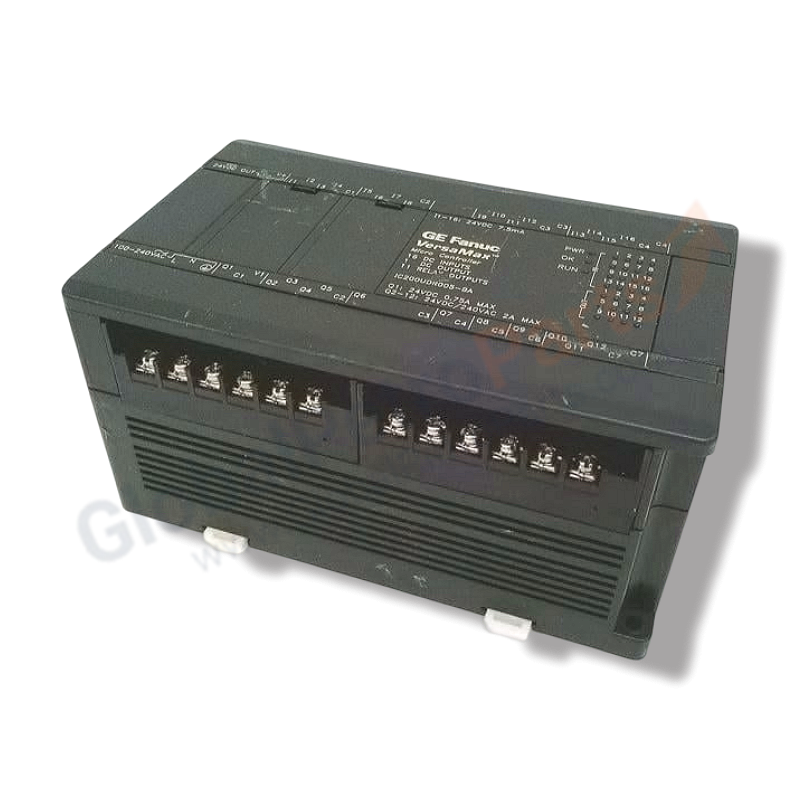

The IC200UDR005 is a VersaMax Micro 40-point PLC with 24 VDC power supply. It combines a high-speed CPU, 24 digital inputs, 16 relay outputs, and two analog inputs in a compact form factor for small to medium automation applications.

Core Specifications

• Model Number: IC200UDR005
• PLC Type: VersaMax Micro 40
• Power Supply: 24 VDC
• Digital Inputs: 24 points (24 VDC, positive/negative logic configurable)
• Digital Outputs: 16 relay outputs (2 A per point, 8 A per common)
• Analog Inputs: 2 channels (0–10 VDC or 4–20 mA)
• User Memory: 9K logic memory

Electrical & Performance Characteristics

• Scan Time: Fast execution (typical for Micro PLC class)
• Communication Ports: RS-232 and RS-485 serial ports (SNP, Modbus RTU, etc.)
• Expansion: Supports limited VersaMax I/O expansion
• Operating Temperature: 0°C to 60°C (32°F to 140°F)

Installation Guide

1. Mount the IC200UDR005 on a DIN rail or panel using the integrated mounting tabs.
2. Connect 24 VDC power to the designated power terminals.
3. Wire field devices to the digital inputs, relay outputs, and analog inputs using the removable terminal blocks.
4. Configure the PLC using VersaMax programming software (Proficy Machine Edition).
5. Download the application program and verify operation through status LEDs and diagnostics.

Selection Guidelines

• Use IC200UDR005 for compact applications requiring 24 VDC power, relay outputs, and basic analog inputs.
• Compare with other Micro 40 models for variations in I/O count, power supply voltage, or output type.
• Ensure total system power budget and I/O expansion requirements are met.
