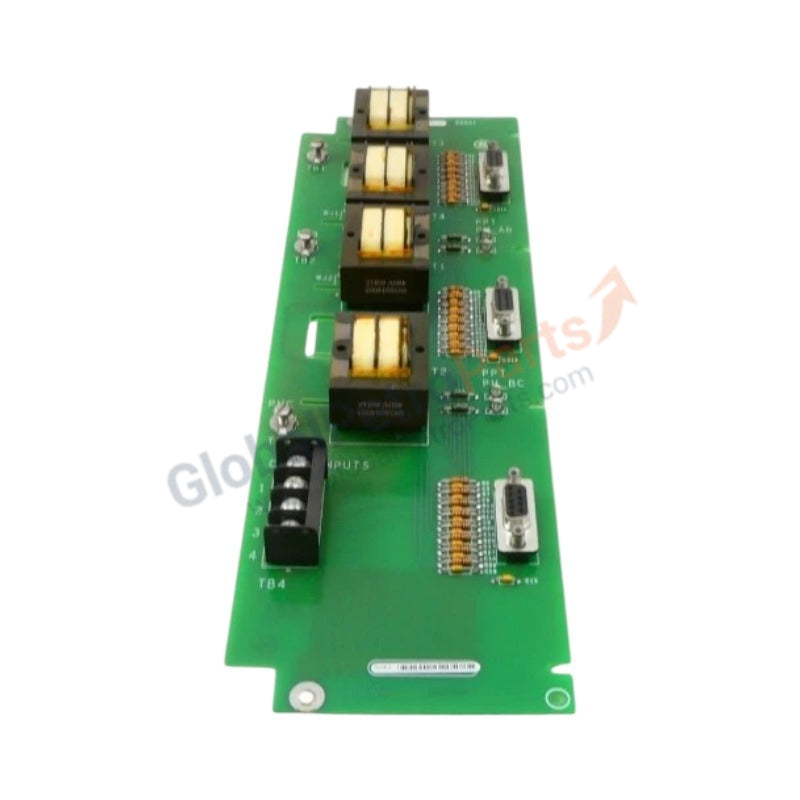

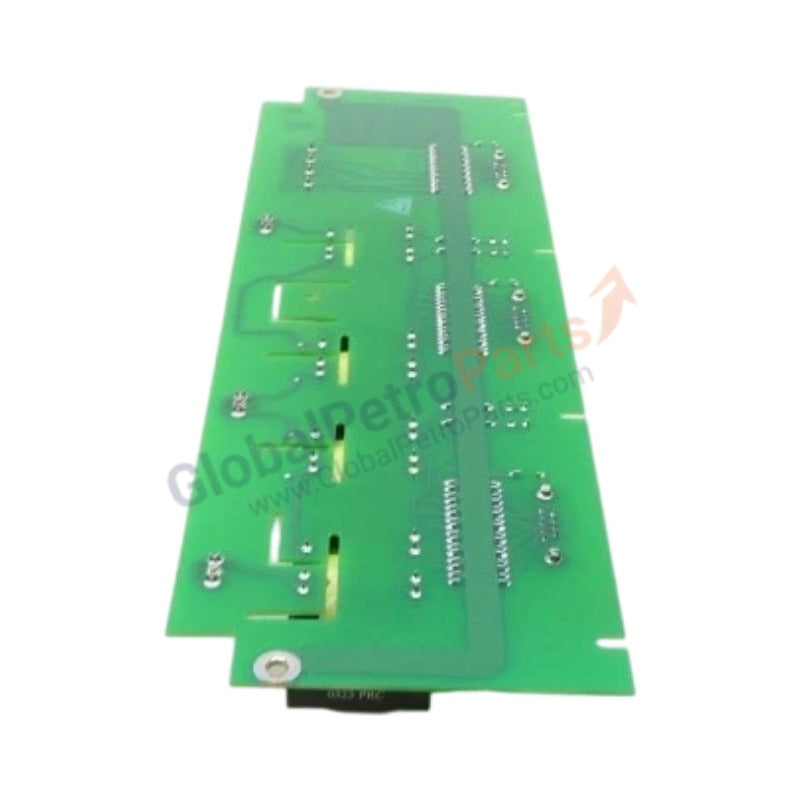

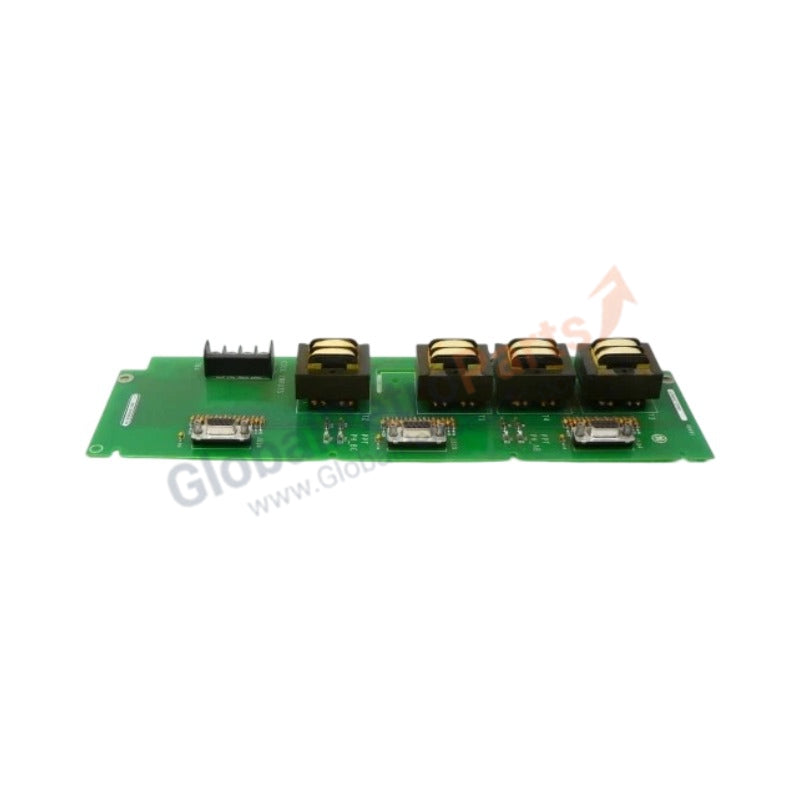

GE IS200EACFG2ABB Exciter AC Filter Board

Configured for AC input filtering in GE Mark VI and Mark VIe excitation systems, the GE IS200EACFG2ABB (base model IS200EACF) provides direct physical execution of harmonic attenuation and transient suppression across excitation power stages.

Suffix Breakdown & Model Matrix

Hardware Specifications

Backplane Bus Communication Velocity & Firmware Flash Compatibility

The IS200EACFG2ABB interfaces directly with the Mark VI/VIe backplane bus architecture without requiring firmware revisions. Electrical compatibility is governed strictly by group designation; G2 variants must not be interchanged with other group configurations due to differences in component impedance scaling. Flash programming is not applicable, as the board contains no programmable logic devices.

Frequently Asked Questions

Q: Can the IS200EACFG2ABB be replaced with a G1 version?

A: No. Impedance mismatch between G1 and G2 filter networks may result in degraded harmonic attenuation and potential overvoltage stress on connected excitation hardware.

Q: Does the board support hot-swap replacement?

A: No. System power must be isolated prior to removal or installation to prevent transient surges through unprotected filter paths.

Q: Are firmware updates required after board replacement?

A: No. This is a passive filtering component with no onboard firmware; replacement requires only mechanical and electrical verification.

Field Installation Guidelines

Install the EACF board into the designated excitation rack slot, ensuring correct alignment with guide rails and mating connectors. Torque terminal screws to manufacturer-specified values and verify all AC input phases are de-energized before handling. Maintain minimum 10 mm separation from high-current DC busbars to reduce inductive coupling. Ground the excitation cabinet frame to the plant ground grid using copper conductors sized per local electrical code. Confirm that all shield drain wires terminate to the designated earth point without creating ground loops.
