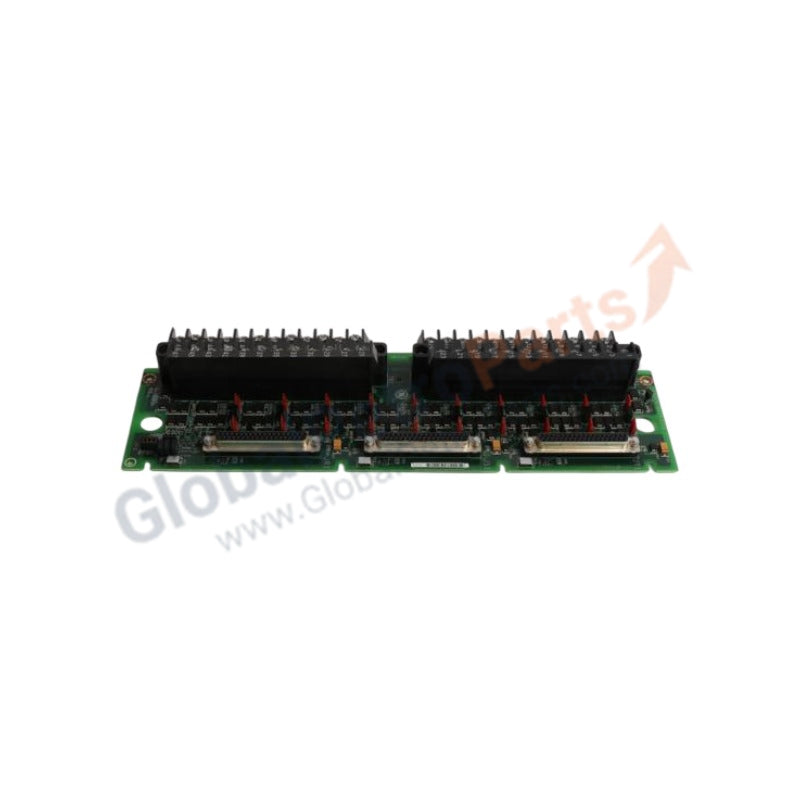

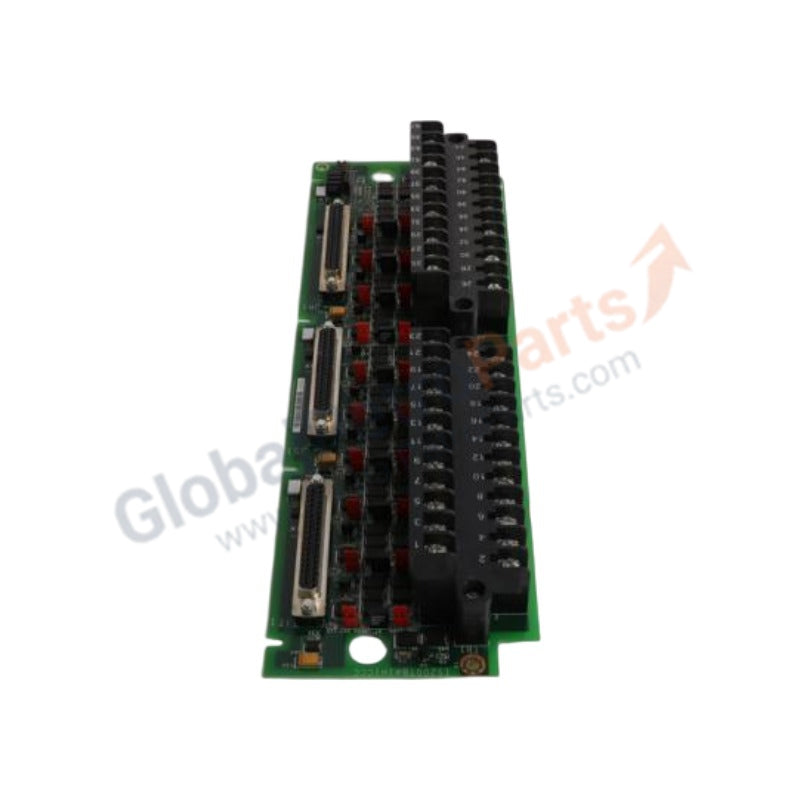

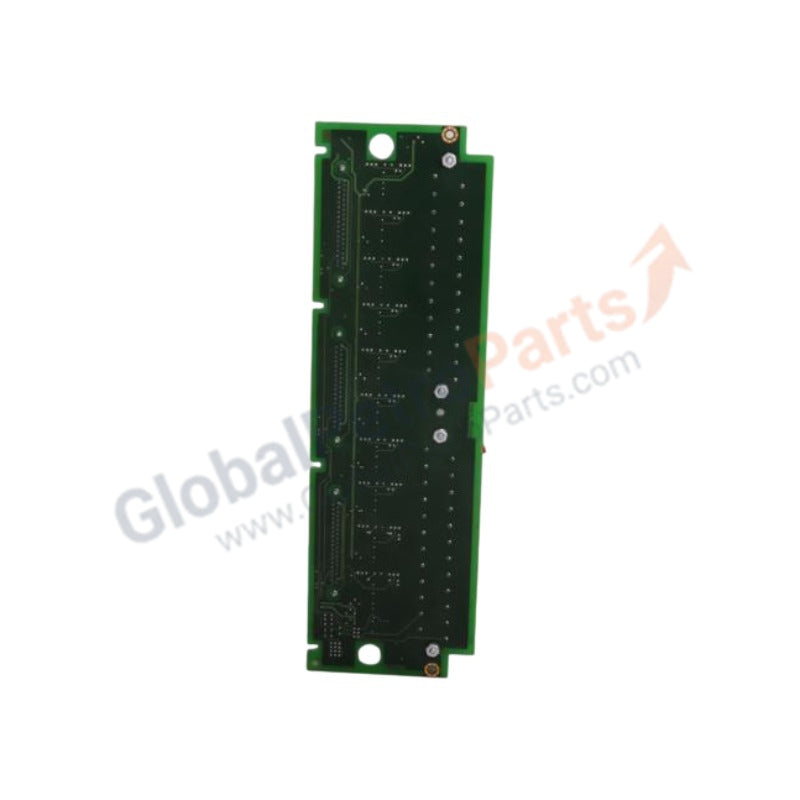

GE IS200TBAIH1C Speedtronic Mark VI Analog Input Output Terminal Board

GE Fanuc

GE IS200TBAIH1C Speedtronic Mark VI Analog Input Output Terminal Board

10 left
  • Manufacturer: GE Fanuc

  • Product No.: IS200TBAIH1C

  • Product Type: Speedtronic Mark VI Analog Input Output Terminal Board

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Product Overview

The GE IS200TBAIH1C operates as a high-performance Analog Input/Output Terminal Board (TBAI) within the Speedtronic Mark VI turbine control system architecture. This foundational hardware assembly acts as the central physical landing pad for critical analog process instrumentation signals. It interfaces field transmitters, servo position indicators, and pressure sensors directly with the primary control rack core. The board accepts diverse analog inputs, distributes stable loop power to field transmitters, and supports output channels for control loops. Procuring this Brand New, original GE terminal board eliminates signal loop corruption, stabilizes reference voltage planes, and guarantees accurate feedback tracking across your entire power generation or mechanical drive facility.

Technical Specifications

The table below details the signal capacity, electrical loop configurations, and physical operating parameters for the IS200TBAIH1C terminal board:

Parameter Technical Specification / Hardware Metric
Manufacturer General Electric (GE)
Model Number IS200TBAIH1C (Alternates: IS200TBAIH1CED)
System Platform Speedtronic Mark VI
Board Classification Analog Input Output Terminal Board (TBAI)
Input Channels 10 differential analog inputs (Configurable for voltage or current loops)
Output Channels 2 analog output channels (Typically 0-20 mA or 4-20 mA)
Signal Configurations Support for ±5 VDC, ±10 VDC, and standard 4-20 mA transmitters
Transmitter Power Onboard 24 VDC outputs for powering field current loops
Termination Matrix Two high-density barrier style terminal blocks (A and B blocks)
Cable Interfaces Dual D-type connector sockets for I/O rack cable linkup

Engineering Advantages

The IS200TBAIH1C introduces specific hardware layouts and conditioning networks that solve traditional loop interference and wiring limitations in demanding turbine environments:

  • Surge and Spike Mitigation: Onboard metal oxide varistors (MOVs) and gas discharge tubes suppress high-energy transient spikes caused by lightning or inductive field switching, preventing voltage blowouts into processing cards.

  • Jumper-Free Current Loop Shunting: The board utilizes precise, ultra-stable internal 250-ohm resistors across dedicated channels to drop incoming 4-20 mA current signals into clean 1-5 VDC reads for the analog-to-digital converters, eliminating physical configuration jumpers.

  • Common-Mode Voltage Attenuation: High-impedance differential input networks eliminate up to 12 Volts of common-mode noise, ensuring clean signal capture even when significant ground potential differences exist between the field instrument and the control cabinet.

  • Shield Grounding Matrix: An integrated copper plane strip handles shield terminations directly at the entry barrier blocks, shunting high-frequency electromagnetic field interference (EMI) immediately to control cabinet ground.

FAQs

  • What functional differences does the "H1C" revision specify over older "H1A" versions?

    The "H1C" revision incorporates an upgraded printed circuit board trace layout with improved component isolation and higher noise margins. It also implements updated component ratings that mitigate thermal stress during continuous 24 VDC transmitter power delivery. This variant provides drop-in compatibility for older TBAI models while improving overall signal integrity in high-temperature environments.

  • How do technicians configure a channel between a 4-20 mA current loop and a ±10 VDC voltage input?

    The IS200TBAIH1C board handles the hardware termination pathways natively. Technicians perform all channel profile selections, filtering constants, and scaling definitions digitally within the GE Toolbox configuration platform software, completely eliminating the need for physical trace modifications or manual potentiometer tweaks.

  • What wiring procedure ensures maximum noise immunity on this terminal board?

    Field technicians must peel back instrument cable insulation carefully and terminate the twisted-pair leads directly into the barrier block screws. Connect the overall cable drain wire firmly to the adjacent grounding bar on the terminal board frame. Never daisy-chain shields across multiple channels, as this practice introduces hazardous ground loop errors that distort analog measurement parameters.
