GE IS200TSVOH1BBB Speedtronic Mark VI Servo Terminal Board

Product Overview

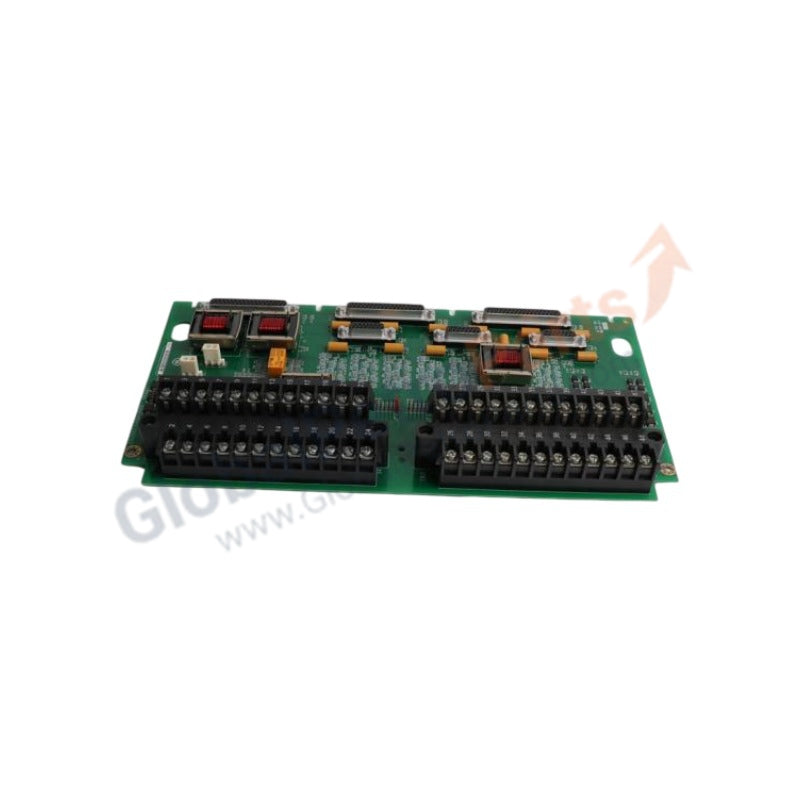

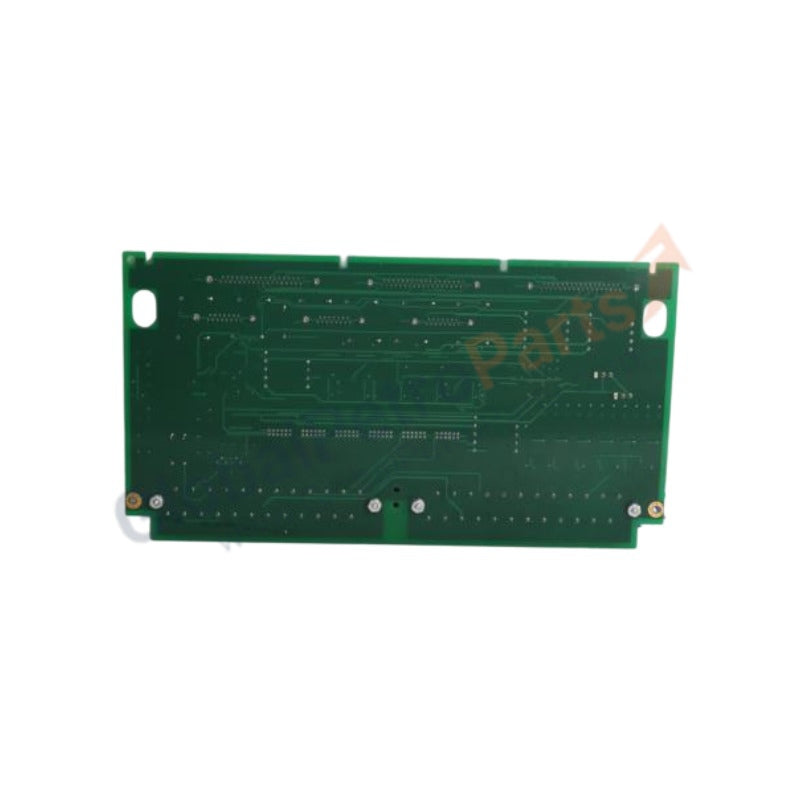

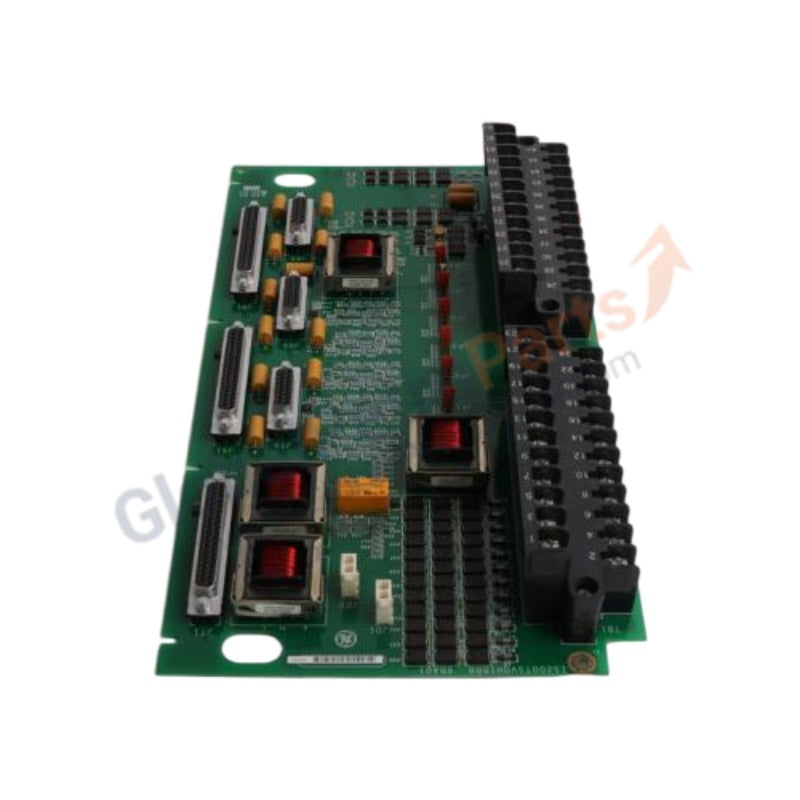

The GE IS200TSVOH1BBB operates as a dedicated Servo Terminal Board within the Speedtronic Mark VI turbine control platform. This heavy-duty hardware component provides the direct physical termination interface for electro-hydraulic servo valves and their corresponding position feedback sensors, such as LVDTs or RVDTs. It bridges the raw field signals from the turbine deck to the internal VSVO servo control processor boards housed in the VME rack cage. Installing this Brand New, original GE terminal board eliminates signal loss across long field cable runs and secures precise fuel valve regulation to avoid unexpected thermal trips.

Technical Specifications

The table below outlines the electrical interfaces, hardware configurations, and environmental boundaries for the IS200TSVOH1BBB board:

Engineering Advantages

The IS200TSVOH1BBB resolves intense mechanical and electrical challenges found on heavy industrial gas and steam turbine decks:

• Robust Noise Isolation: Dedicated shield ground points sit directly adjacent to each signal channel, routing inductive electromagnetic noise away from low-voltage LVDT feedback loops.

• Redundant Core Bridging: The hardware layout allows a single TSVO board to distribute field valve commands across Simplex or Triple Modular Redundant (TMR) control cores, maintaining continuous operation if a processor card faults.

• High-Vibration Screw Terminals: Industrial-grade barrier terminal strips grasp large-gauge field wires firmly, preventing loose connections or contact jitter caused by structural machine floor vibrations.

• Passive Circuit Longevity: The board relies strictly on high-reliability passive components, surge suppressors, and filters rather than complex heat-generating microprocessors, maximizing lifespan inside unventilated marshalling cabinets.

FAQs

• What specific design profile does the "H1BBB" suffix revision establish?

  The "H1BBB" code dictates the precise manufacturing revision, PCB copper trace layout, and specific surge suppression rating of this TSVO variation. It interfaces directly with standard Mark VI VSVO processor modules. Always cross-reference your site layout blueprint inside the GE Toolbox program to confirm complete group compatibility before starting automated valve calibrations.

• Does this terminal board require manual software configuration during installation?

  No. The IS200TSVOH1BBB acts purely as a passive hardware interconnection and termination layer. The active Mark VI VSVO processor card handles all regulatory calibration, sensor scaling, and software current limits digitally through the master HMI workspace interface.
