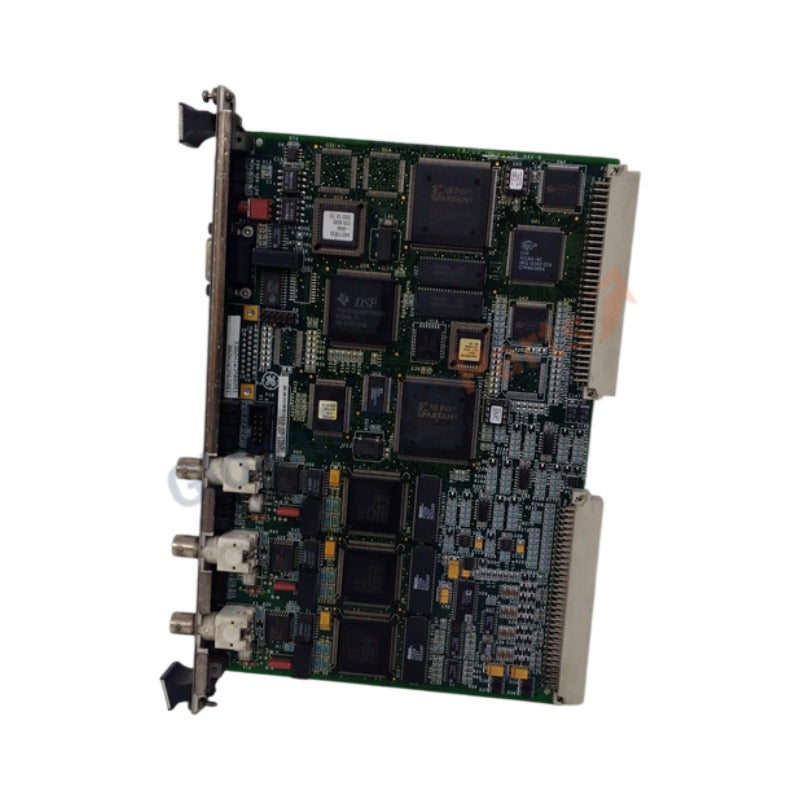

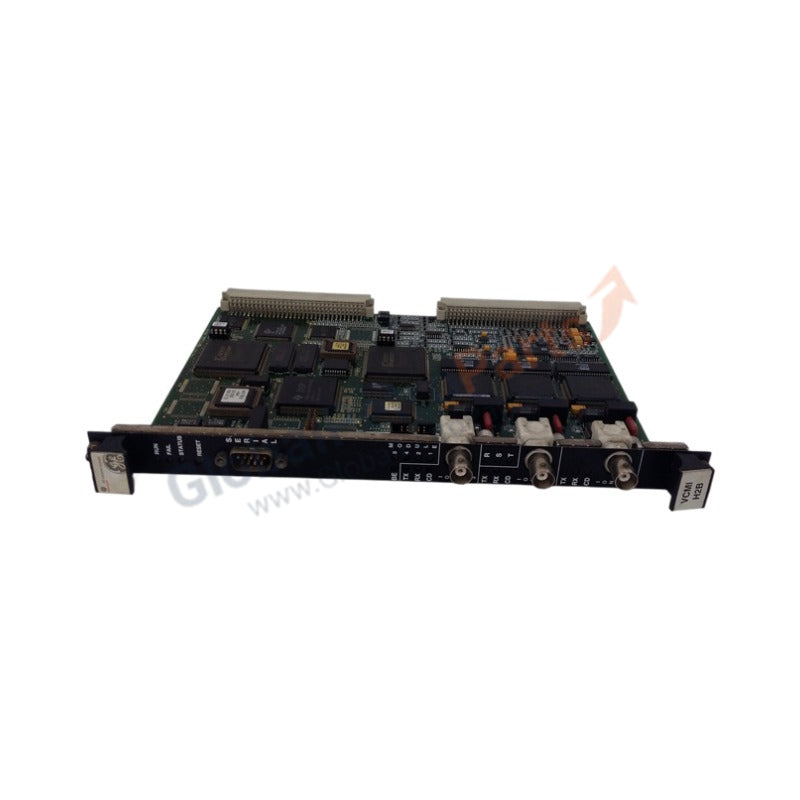

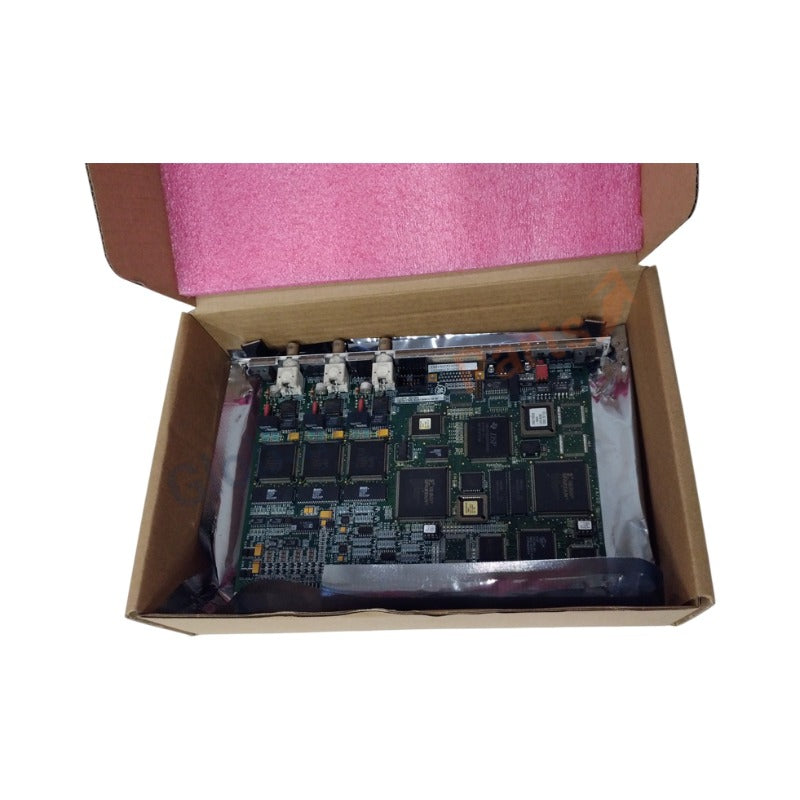

GE IS200VCMIH2BE VME Communication Interface Board

The GE IS200VCMIH2BE, also cataloged as the IS200VCMI VME Communication Interface Board, operates as a dedicated hardware component for deterministic I/O data routing and synchronization across the Mark VI Speedtronic control platform.

Hardware Specifications

Firmware Flash Compatibility and Backplane Bus Velocity

The IS200VCMIH2BE requires strict firmware version alignment with the host controller (UCVI/UCVG). Mismatched firmware revisions will force the board into a FAIL state during POST. The board utilizes the VMEbus P1/P2 connectors to maintain a deterministic backplane bus velocity of 40 MB/s for real-time data exchange with the turbine control processors. License keys stored in non-volatile memory dictate the available IONet node count and protocol execution limits.

Frequently Asked Questions

Q: Can the IS200VCMIH2BE be hot-swapped while the Mark VI rack is powered?

A: No. Power must be removed from the entire VME rack before extracting or inserting the VCMI board to prevent backplane arcing and corruption of the flash memory sectors.

Q: What is the function of the three fiber optic ports in a TMR configuration?

A: In a Triple Modular Redundant setup, each port connects to a separate IONet segment (R, S, T) to facilitate data voting and ensure communication integrity even if one network path fails.

Q: Does the H2BE revision support backward compatibility with older Mark VI I/O packs?

A: The H2BE hardware supports backward compatibility with IS200 series I/O packs, but requires a firmware downgrade to match the existing system architecture; mixing firmware versions across the IONet is prohibited.

Field Installation Guidelines

Install the IS200VCMIH2BE in Slot 1 of the VME rack. Ensure the ejector handles are fully latched to maintain proper connector seating pressure. Use only approved fiber optic patch cords with polished end-faces; inspect for dust using a microscope prior to connection. Route fiber cables away from high-voltage power lines to prevent EMI-induced signal jitter. Verify the gap voltage on adjacent TSI cards is stable before applying power to the VCMI to avoid initialization errors.
