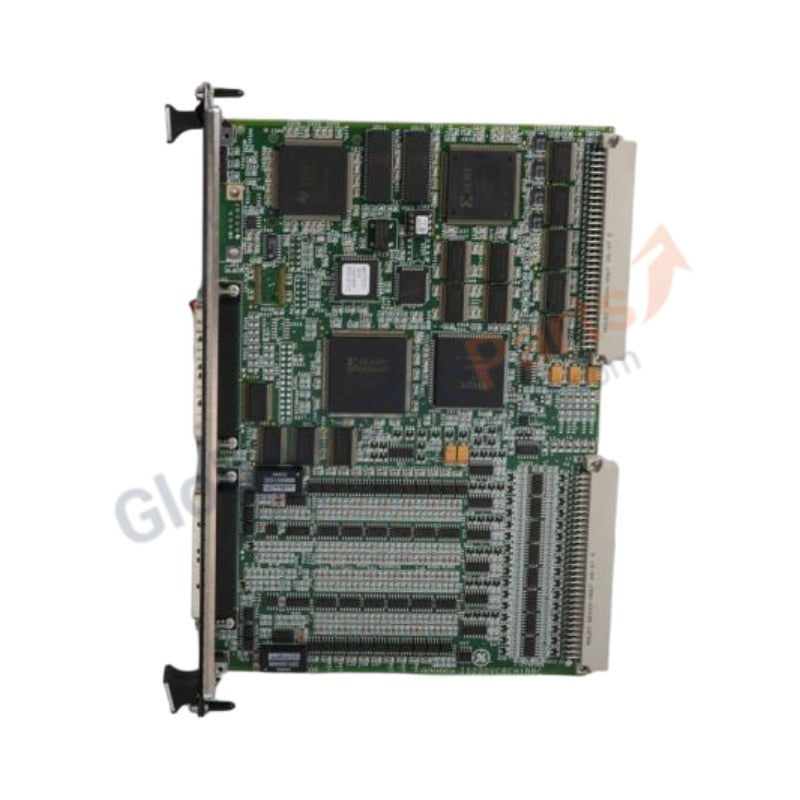

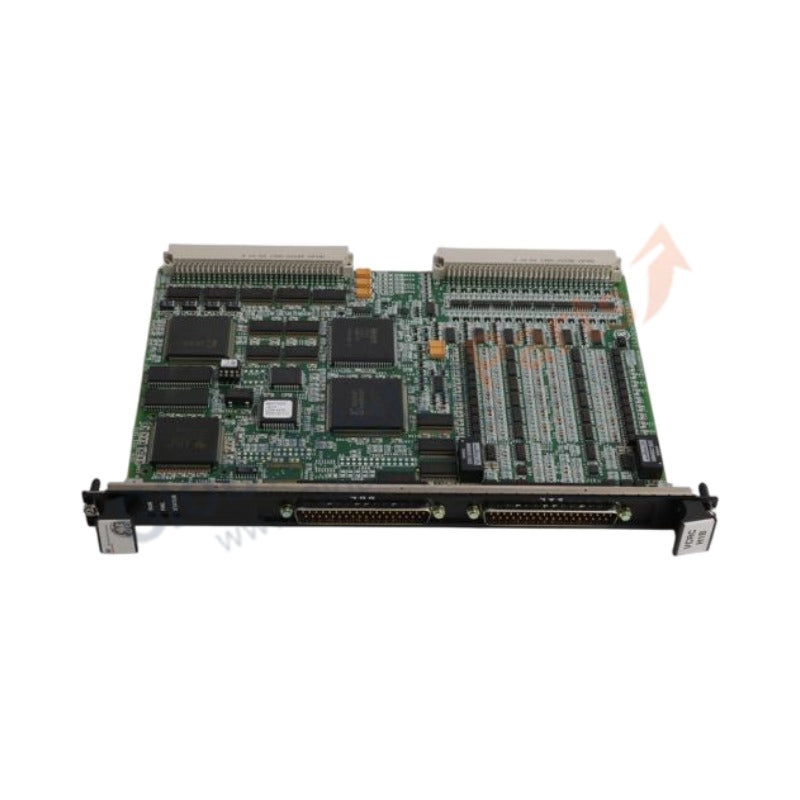

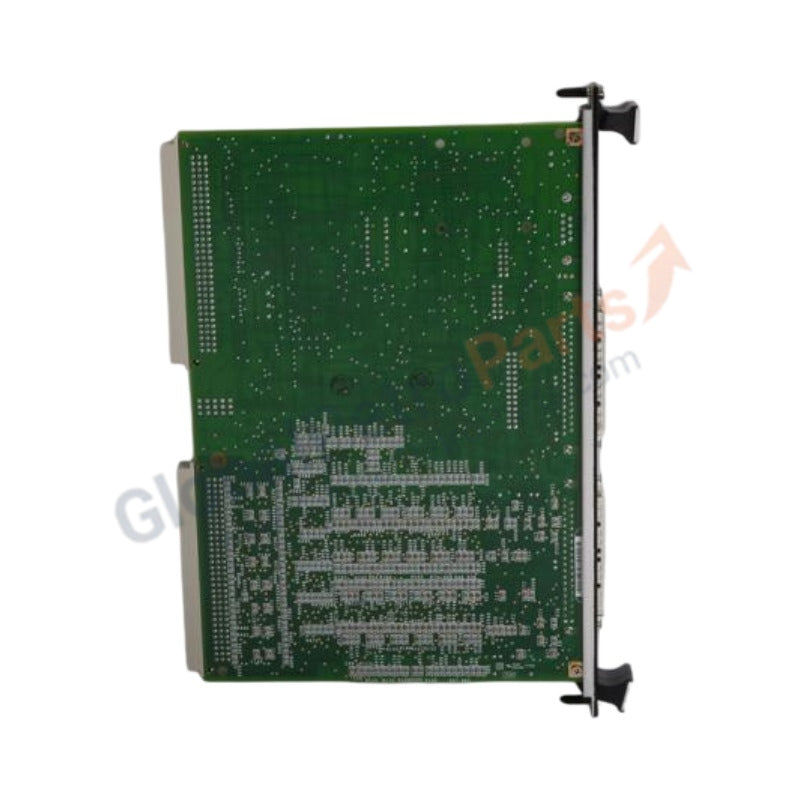

GE | IS200VCRCH1BBC | Mark VI Discrete Input Output Board

Product Overview

The GE IS200VCRCH1BBC functions as a high-density discrete input/output board within the General Electric Mark VI Speedtronic turbine control architecture. This specialized printed circuit board handles massive volumes of contact inputs and relay outputs directly from the VME rack layer. It bridges the gap between field-level digital devices—such as limit switches, pushbuttons, and interposing relays—and the core control processors. By translating raw digital electrical transitions into clean logic-level data packets, this board executes high-speed signal routing and sequence-of-events (SOE) tracking for power generation sub-systems.

We provide this technical asset strictly as 100% brand new, original factory-sealed stock to guarantee structural performance and zero operational flaws within your automation panels.

Technical Specifications

The IS200VCRCH1BBC features a robust multi-layer PCB design fitted with high-density board-to-board connectors and localized signal-conditioning chips. The table below outlines the mechanical, operational, and physical parameters:

Engineering Advantages

• High-Speed Sequence of Events (SOE) Capture: Onboard time-stamping hardware tracks discrete input transitions down to the millisecond layer. This rapid capturing capability allows plant engineers to pinpoint the exact root cause of trip cascades during troubleshooting windows.

• Direct VME Backplane Powering: The board draws its logic operating power natively through the VME backplane connection. This structural integration eliminates messy external wiring harnesses, limits line drop resistance, and frees up horizontal space within your cabinet.

• Advanced Electrical Surge Suppression: Localized opto-isolators and metal-oxide varistors (MOVs) shield the internal logic pathways from field-side voltage spikes. This barrier prevents high-voltage electrical faults from bleeding back into the main control processor rack.

• Firm Slide-In Alignment Rails: The card edge profile utilizes standard VME mechanics to slide smoothly into rack chassis tracks. This geometry guarantees that heavy-duty multi-pin connectors mate perfectly with the backplane every time, eliminating bent pins and intermittent bus contact faults.

FAQs

• What specific upgrade path does the 'H1BBC' suffix version provide over the base 'H1B' card?

  The "H1BBC" suffix indicates a fully updated revision level that replaces older components with low-power silicon alternatives. This variation manages heat generation more effectively and resists signal crosstalk better than early "H1B" design iterations while remaining 100% backward compatible.

• Q1: Can I hot-swap the IS200VCRCH1BBC board while the turbine is running?

  A1: No. Unlike distributed I/O packs, VME-based boards communicate across an active shared parallel backplane. Removing this card while the rack remains under power can disrupt the VME bus traffic and trigger an immediate turbine shutdown.

• Q2: Do I need to configure the hardware address jumpers manually before installation?

  A2: No. The Mark VI control architecture uses software-driven electronic IDs. The main controller detects the physical slot placement of the IS200VCRCH1BBC automatically and assigns the pre-configured parameters through the toolbox utility.

• Q3: What causes the 'Fault' LED on the card faceplate to turn amber or red?

  A3: An amber or red indicator flags an active board-level diagnosis error. This warning typically triggers when the system detects an internal memory failure, a validation breakdown during boot, or an unexpected communication breakdown across the backplane bus.
