GE IS210BPPCH1AD Mark VI Turbine Control I/O Pack Processor Board

Product Description

The GE IS210BPPCH1AD is a processor board designed for the Mark VI turbine control system. It functions as part of the I/O pack assembly, providing communication and processing capabilities for industrial turbine applications. Unlike similar BPPC boards, this model is specifically engineered for the Mark VI system and is not compatible with the Mark VIeS platform.

Design and Construction

• Mounting: Factory-drilled corners for secure installation; attaches to a larger circuit board using standoffs and screw mounts.

• Board Type: Double-sided printed circuit board (PCB) with surface-mount technology (SMT) for efficient component layout.

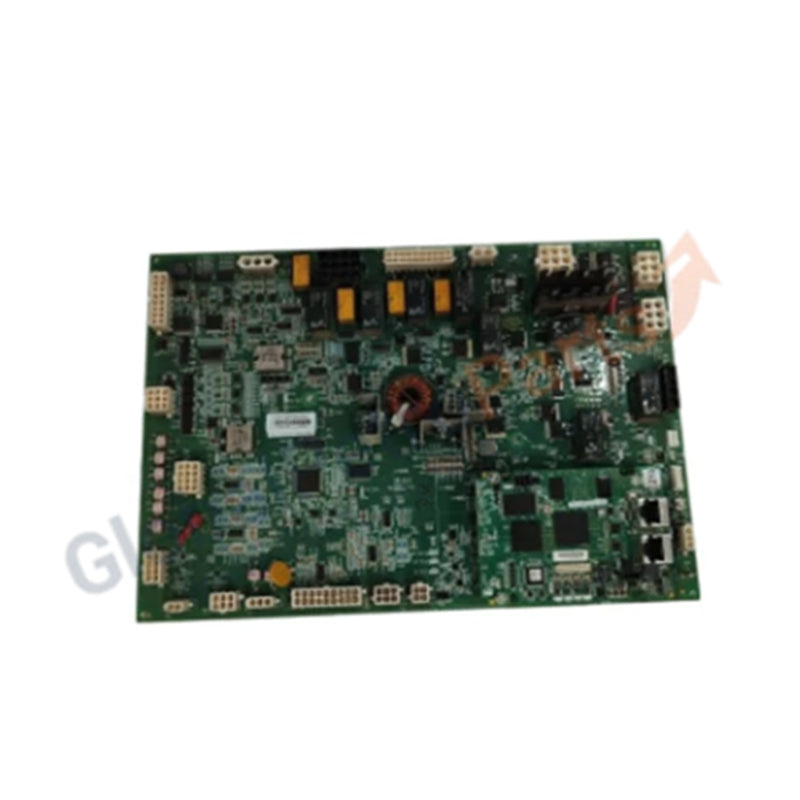

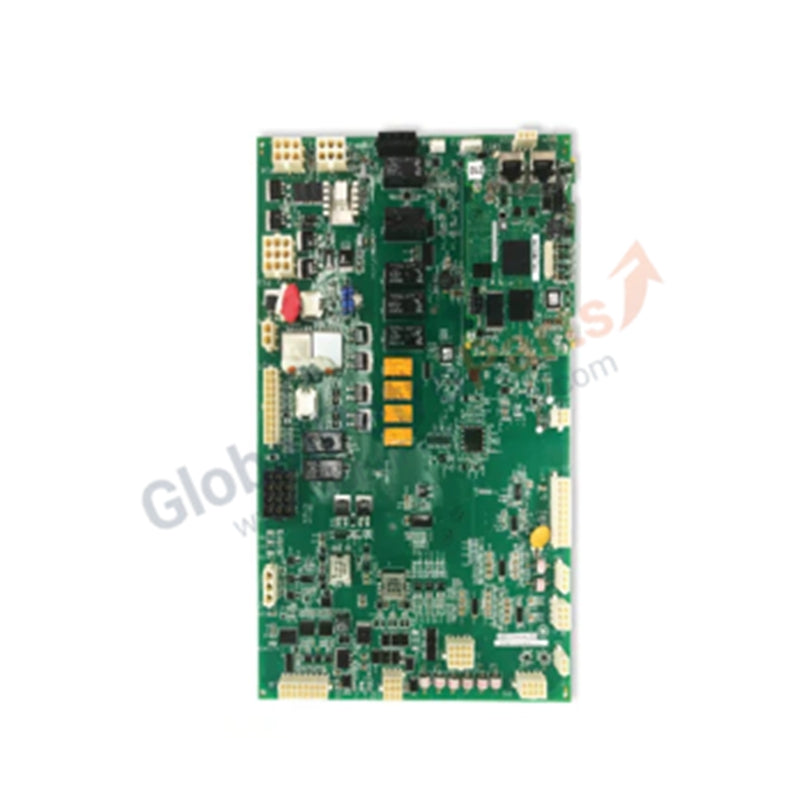

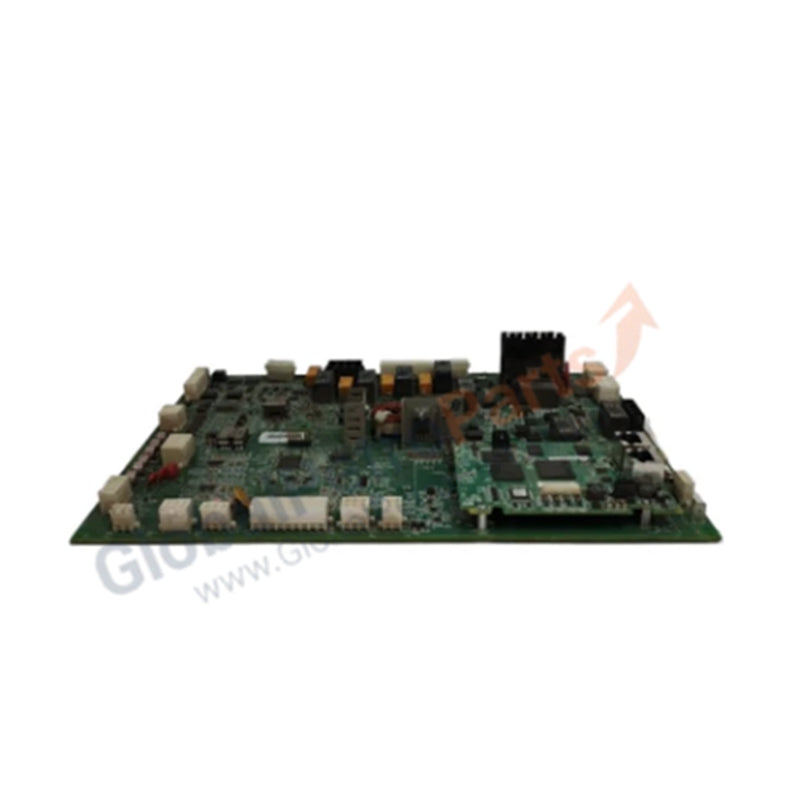

Component Layout

• Top Side:

  • Two Ethernet ports

  • Inductor/choke

  • Diodes, resistors, capacitors, transistors

  • Multiple integrated circuits

  • Resistor network arrays

• Bottom Side:

  • Primarily populated with capacitors, resistors, and diodes

Application Scenarios

This board is used in GE Mark VI turbine control systems for power generation and heavy industrial applications. It provides reliable communication and processing for I/O packs, ensuring stable turbine operation.

Comparison with Similar Boards

• IS210BPPCH1AD: Designed exclusively for Mark VI systems, dual Ethernet ports, SMT construction.

• Other BPPC variants: May include different port configurations or compatibility with Mark VIeS systems.

FAQ

Q: Is the IS210BPPCH1AD interchangeable with Mark VIeS boards? A: No, it is only compatible with Mark VI systems.

Q: What type of communication does the board support? A: It includes dual Ethernet ports for system communication.
