GE |IS210MACCH2AEG Mark VI Management Control Card

Product Overview

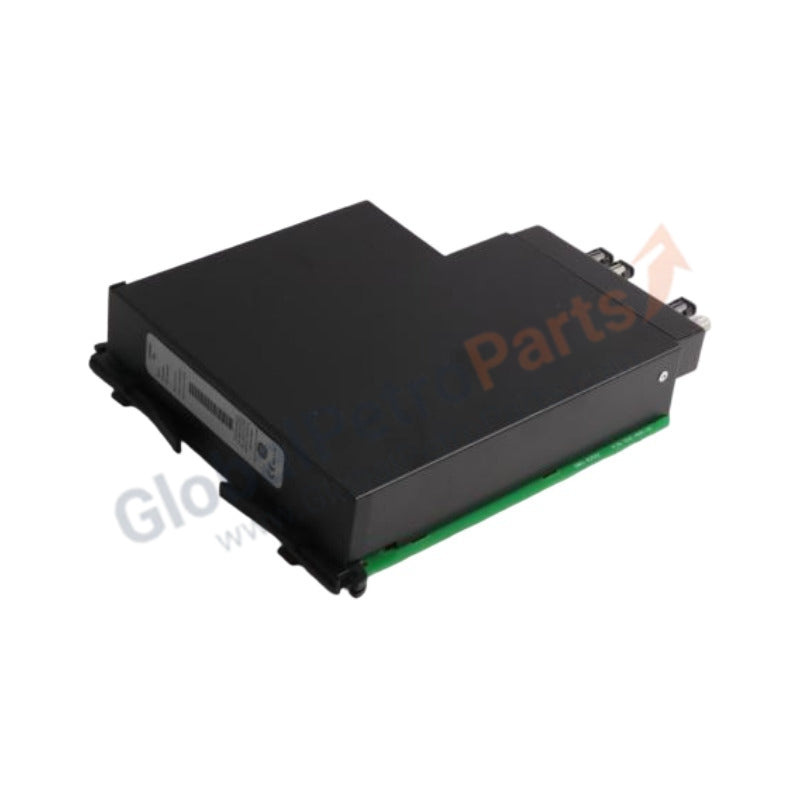

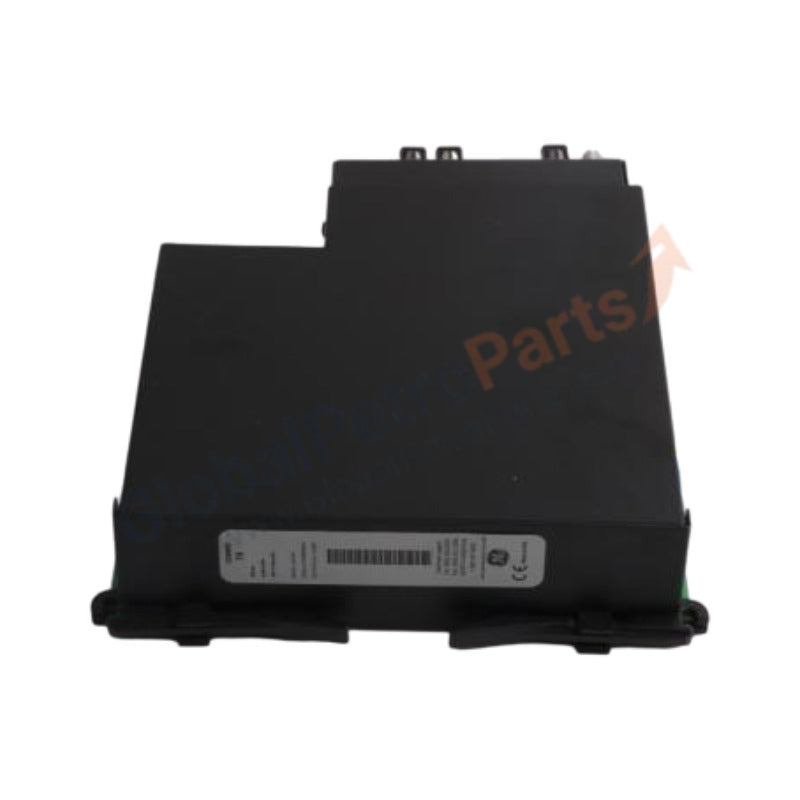

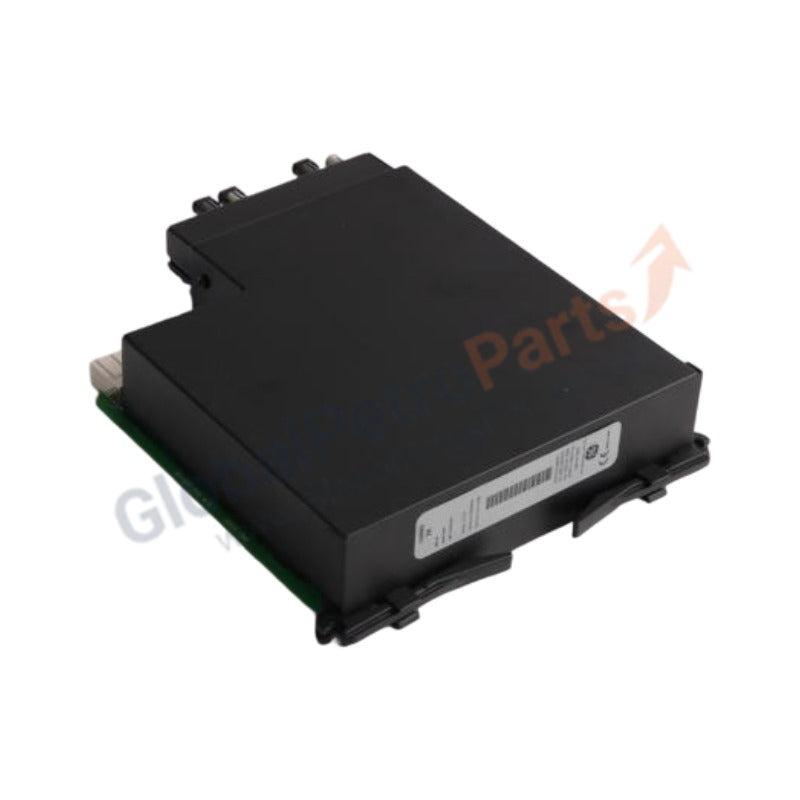

The GE IS210MACCH2AEG (MACC) functions as a primary Management Control Card within the GE Mark VI Speedtronic control system. This high-level processor board coordinates communication between the controller backplane and the various I/O packs or terminal boards. It executes localized control algorithms, manages data packet synchronization, and ensures the seamless flow of diagnostic information across the system architecture. We provide this component as a 100% Brand New and Original unit. By centralizing the management of interface logic, the MACCH2AEG reduces network latency and provides the stable computational environment required for high-speed gas and steam turbine governing.

Technical Specifications

Engineering Advantages

• Advanced Logic Synchronization: The IS210MACCH2AEG utilizes a high-speed embedded processor to synchronize I/O scanning with the main controller's heartbeat. This synchronization eliminates "data skew," ensuring that all control rungs execute using the same real-time process values, which is critical for maintaining frequency stability in power generation.

• Hardware-Level Diagnostic Aggregation: This card acts as a diagnostic hub for the local rack. It continuously polls subordinate modules for fault codes, temperature warnings, and communication errors. By aggregating this data before transmission to the HMI, it reduces the bandwidth load on the IONet and provides operators with immediate, clear insight into hardware health.

• High-Density EMI Shielding: GE engineers designed the H2AEG revision with enhanced multi-layer PCB shielding. This architecture prevents high-frequency electromagnetic interference—common near large generator sets—from corrupting the digital logic signals, ensuring 24/7 operational integrity in harsh industrial environments.

• Streamlined Rack Integration: The module features a standardized form factor that slides into the Mark VI VME rack. High-retention connectors ensure stable electrical contact even in high-vibration environments. The board’s firmware automatically negotiates its role within the control hierarchy upon insertion, simplifying the commissioning process.

FAQs

• What does the "H2AEG" suffix indicate for this MACC board?

  The "H2" indicates the second major hardware revision, while "AEG" refers to a specific grouping of functional components and firmware compatibility levels. This revision offers improved thermal management and faster bus communication compared to the earlier "H1" series.

• Can the IS210MACCH2AEG replace an older "H1" or "H2A" board?

  Yes, the H2AEG version maintains backward compatibility within the Mark VI ecosystem. However, always check your current system's firmware version via ToolboxST™ to ensure that all advanced diagnostic features of the H2AEG revision are fully supported.

• Does this card require separate configuration before installation?

  No manual board-level configuration is required. Once you seat the card in the rack and connect it to the IONet, the main controller identifies the MACCH2AEG and pushes the appropriate application-specific configuration data to its non-volatile memory.

• How should I handle the board during replacement?

  The IS210MACCH2AEG contains sensitive CMOS components. Always wear a grounded ESD (Electrostatic Discharge) wrist strap and handle the board by its edges or the front-panel pull-handle to prevent static damage to the microprocessor.
