GE IS220PAOCH1B Mark VIe Analog Output Module

Product Overview

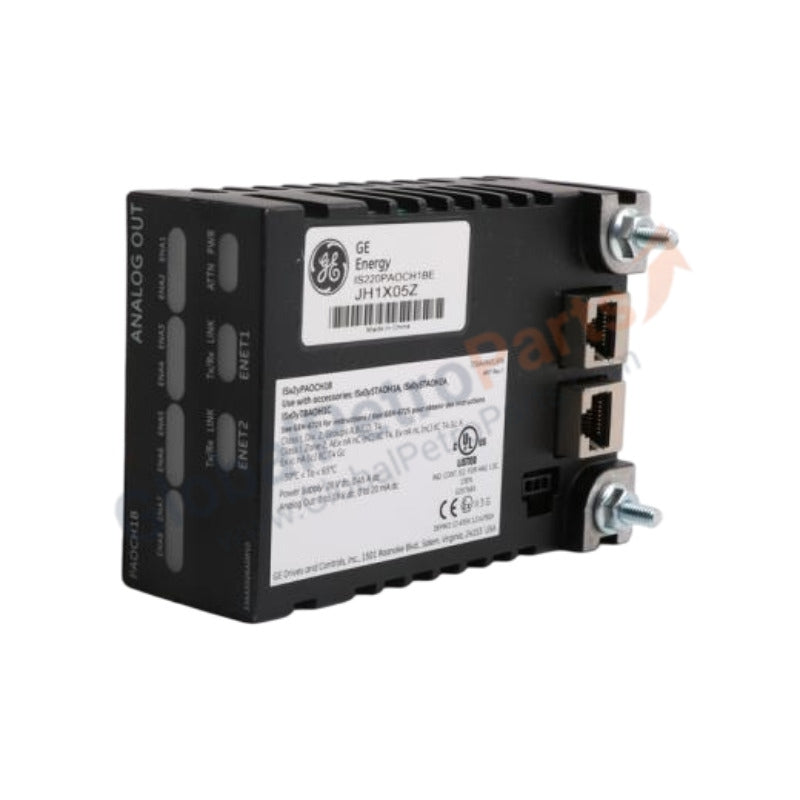

The GE IS220PAOCH1B, also cataloged as the IS220PAOC Analog Output Module, operates as a dedicated hardware component for loop current control sequences within Mark VIe Control System networks. The module interfaces with specialized analog terminal boards to convert digital reference commands from the central controllers into analog current waveforms. These electrical outputs physically drive final control elements such as fuel control valves, guide vanes, and positioners while dynamically checking loop impedance thresholds.

Hardware Specifications

Deterministic Network Routing and Firmware Flash Compatibility

The IS220PAOCH1B implements dual redundant Ethernet ports to attach directly to the internal IONet architecture, executing Profinet / EtherNet/IP deterministic networks parameters. This ensures synchronized clock data execution and low propagation delay for immediate actuator loop correction. The hardware logic relies on specific onboards EEPROM structures; firmware flash compatibility verification is automatically parsed by the master application framework during initialization to enforce code baseline consistency across all processing nodes.

Frequently Asked Questions

Q: Does the IS220PAOCH1B support online hot-swap operations within an active IONet control loop?

A: Yes. The hardware design allows hot-swap insertion and extraction at the terminal board connector surface. Removing an individual module does not impact power distribution paths or current communication stability of surrounding hardware modules on the link.

Q: How is loop circuit integrity checked on active 4-20 mA channels?

A: The module executes integrated continuous loop readback diagnostics. If field cable rupture or terminal separation occurs, the onboard current driver reports an open-circuit fault error to the controller via the IONet bus.

Field Installation Guidelines

• ESD Control Standards: Installation personnel must employ a grounded anti-static wrist strap connected directly to the steel enclosure frame prior to handling the board assembly.

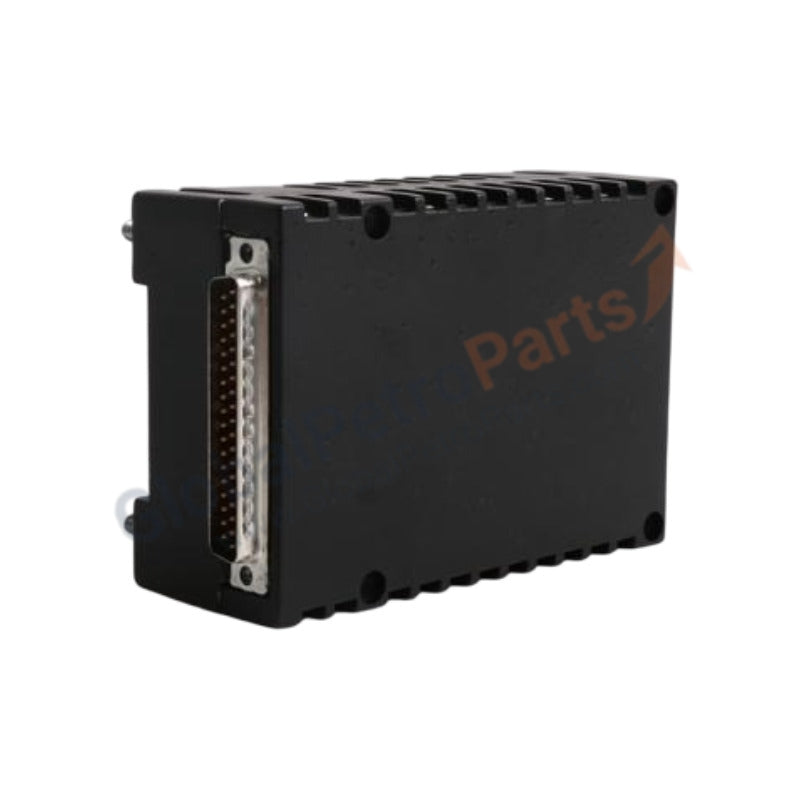

• Chassis Alignment Mechanics: Slide the device pack straight onto the mounting guide pins of the associated terminal block. Press down smoothly until the pin array seats completely, and lock the securing screws.
• Shield Grounding Methods: Terminate the field line shield braids solely at the terminal board grounding rail framework. Do not connect shields at the actuator side to prevent parasitic electrical loops.
• Thermal Management Clearances: Ensure a continuous clearance buffer of at least 50 mm around the outer ventilation grids of the device to facilitate unimpeded passive air cooling circulation.
