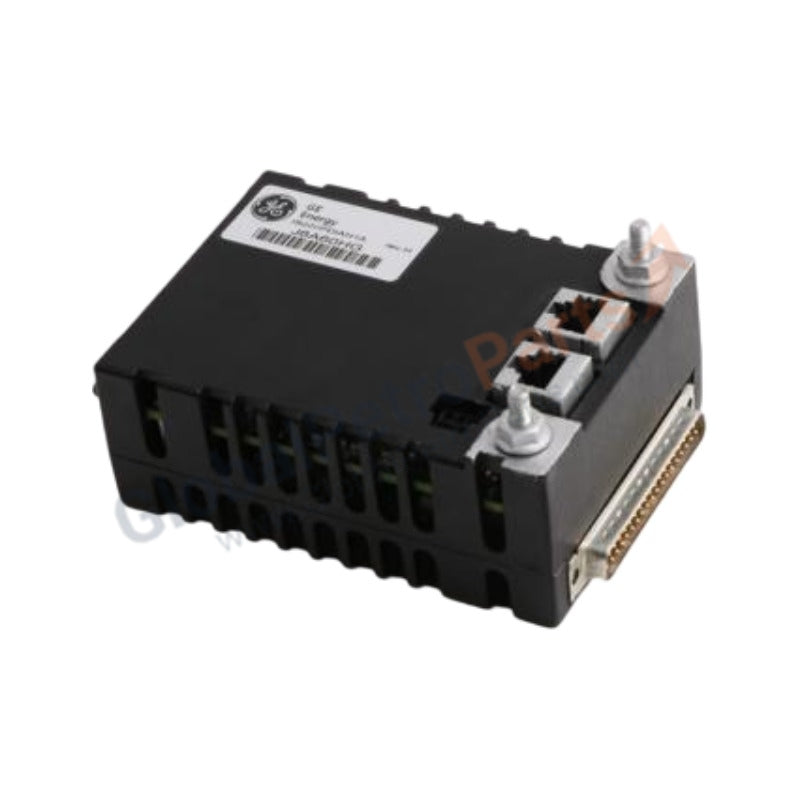

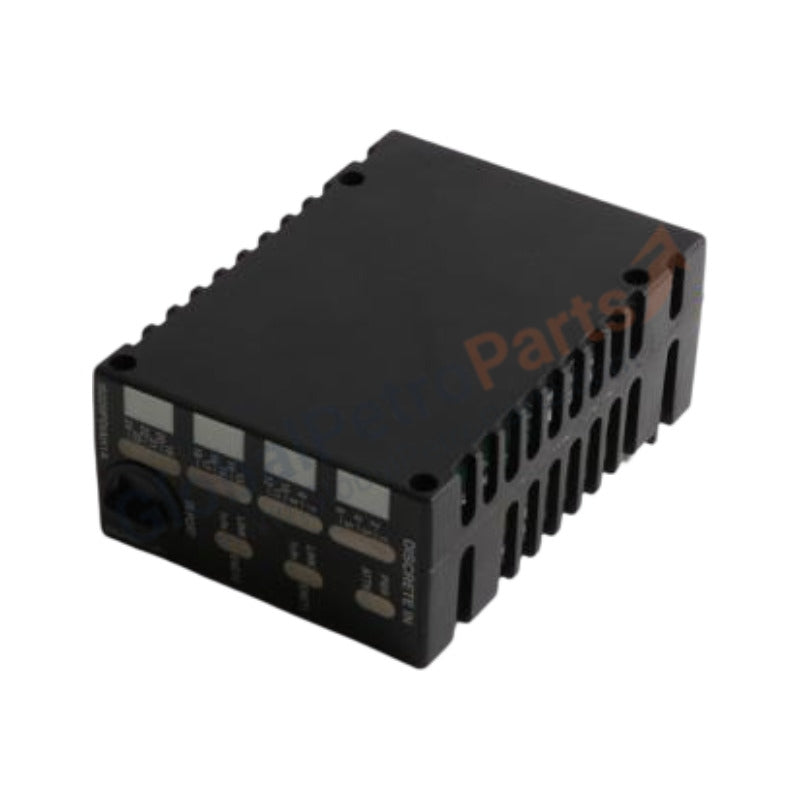

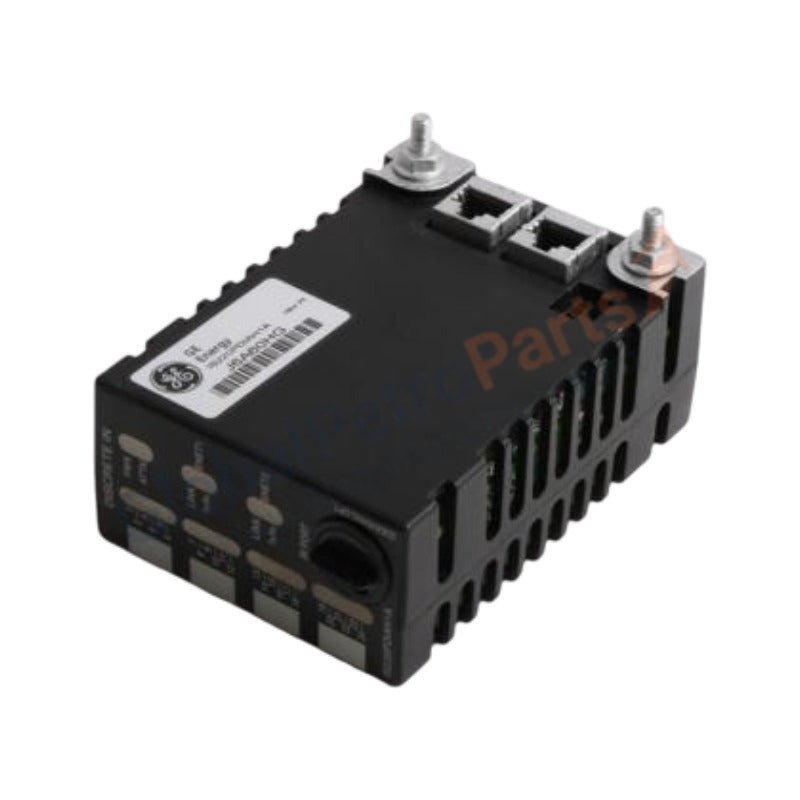

GE | IS220PDIAH1A | Mark VIe Speedtronic Discrete Contact Input I/O Pack

Product Overview

The GE IS220PDIAH1A functions as a high-density, processor-driven discrete contact input functional I/O pack within the General Electric Mark VIe Speedtronic turbine control platform. This intelligent automation hardware mounts directly onto compatible discrete terminal boards to scan and digitize binary field status signals originating from dry contacts, limit switches, pressure switches, and pushbuttons. It handles up to 24 discrete input channels, recording precise Sequence of Events (SOE) timestamps locally with millisecond resolution. By streaming this structural tracking data over dual redundant industrial Ethernet IONet ports, the pack provides immediate interlock logic execution and protective tracking updates directly to the master control processors.

We supply this high-availability control component exclusively as 100% brand new, original factory-sealed stock to guarantee clean internal electronic pathways and complete mechanical longevity inside your industrial turbine panel setups.

Technical Specifications

The IS220PDIAH1A houses localized high-speed microcontrollers, dual RJ-45 network interfaces, optocoupled signal isolation banks, and a high-density 37-pin mating socket inside a ruggedized protective metal enclosure. The table below profiles the definitive electrical and physical parameters:

Engineering Advantages

• Millisecond Sequence of Events (SOE) Logging: The onboard microprocessor scans the input register loops continuously to capture contact state transitions instantly. It applies a precise, localized 1 ms time tag to each event before broadcasting the data packet, giving engineers an accurate chronological log to troubleshoot complex cascade trip sequences.

• Optical Galvanic Channel Isolation: High-performance optocouplers line the internal signal pathways. This physical isolation barrier blocks high-voltage field spikes, ground faults, and external inductive transients from traversing the 37-pin interface, keeping your central parallel backplane bus fully protected from field-side electrical damage.

• Onboard Contact Debounce Filtering: Hardware RC filters combined with adjustable digital software filters suppress contact bounce noise generated by aging mechanical field switches. This dual-layer processing stops false binary chattering states from entering the control logic loops, preventing erratic system diagnostics or unnecessary turbine trip events.

• Integrated Sensor Wetting Tracking: The pack continually checks the health of the field excitation loop. If an external breaker lines drops or a wetting power fuse blows on the terminal board, the module flags a diagnostic alarm immediately, enabling rapid maintenance response well before an actual control sequence failure occurs.

FAQs

• Q1: Can I use the IS220PDIAH1A with both 24 VDC and 125 VDC contact excitation loops?

  A1: Yes. The IS220PDIAH1A handles both low-voltage and high-voltage excitation formats. The wetting voltage level depends directly on the model of the passive terminal board you pair it with (such as the TDIA board variations). The pack reads the filtered feedback signal from the terminal board and handles the logic evaluation accordingly.

• Q2: Does this discrete contact input pack support live hot-swapping procedures?

  A2: Yes. When you deploy this module in a redundant or Triple Modular Redundant (TMR) terminal board architecture, you can loosen the securing bolts and hot-swap a faulted IS220PDIAH1A pack while the system runs live. The parallel operational packs on the terminal card maintain continuous binary signal tracking throughout the replacement window.

• Q3: What specific advantage does the 'H1A' revision supply over legacy turbine IO layouts?

  A3: The "H1A" designation represents a standalone architecture block that handles signal digitization, timestamp logging, and networking protocols directly inside the pack housing. This eliminates vulnerable multi-core ribbon cables used in older control generations, sealing the sensitive signal conversion loop behind ruggedized metal shielding to completely repel high-voltage cabinet electromagnetic interference (EMI).
