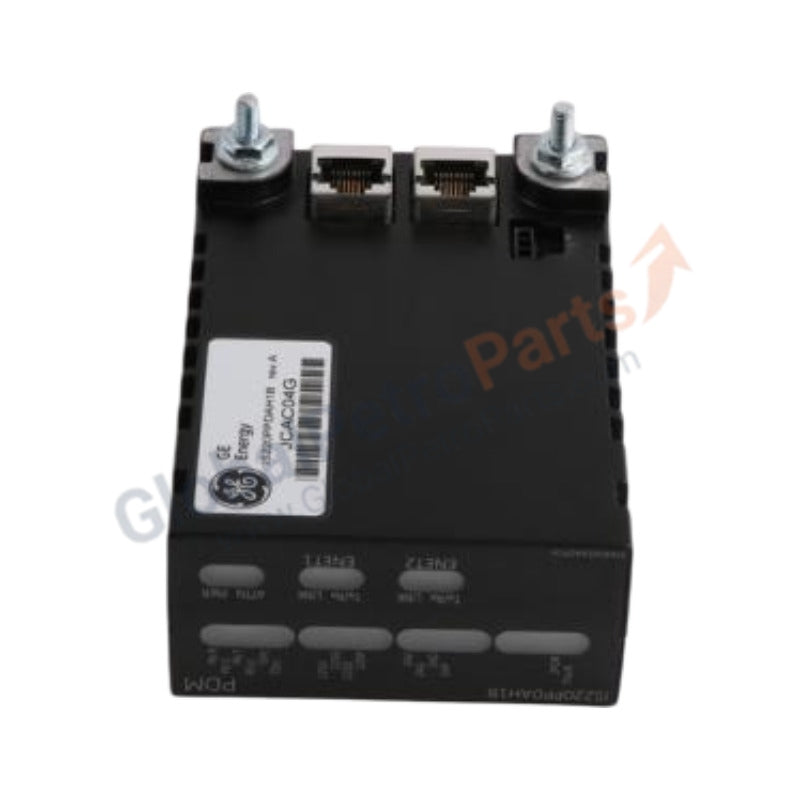

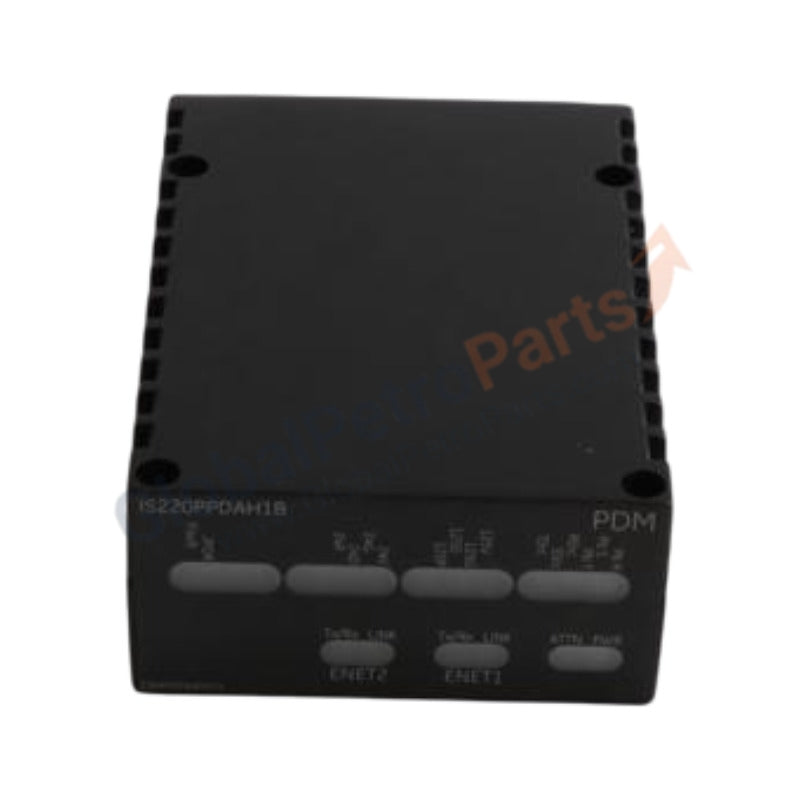

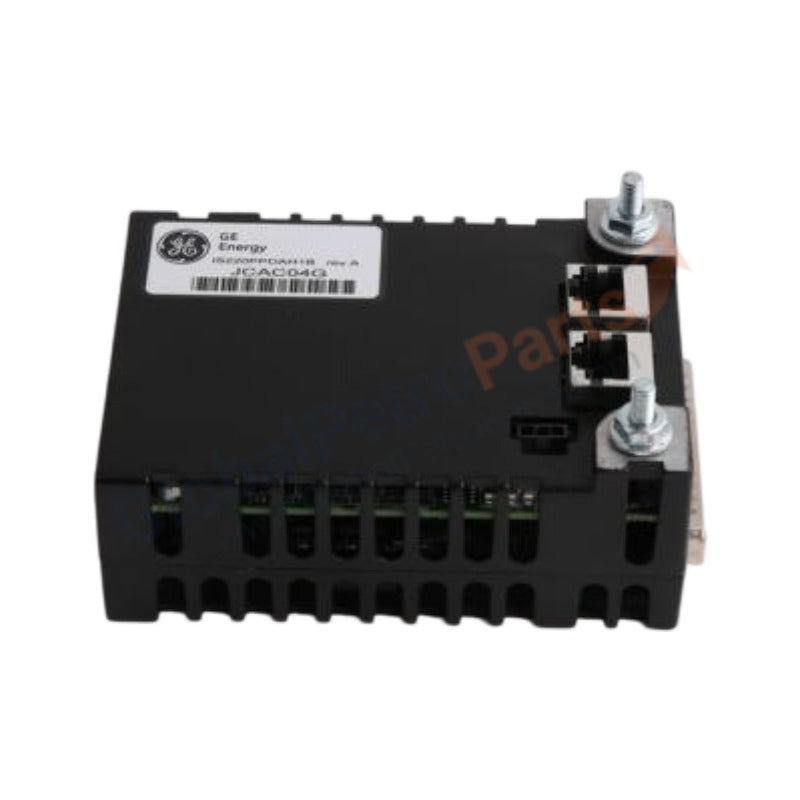

GE IS220PPDAH1 Mark VIe Power Distribution System Feedback Pack

Product Overview

The 100% Brand New GE IS220PPDAH1 (IS220PPDAH1) functions as a high-reliability Power Distribution System Feedback Pack engineered for the General Electric Mark VIe control architecture. This computational module interfaces directly with standard power distribution terminal boards to monitor system voltages, ground faults, and circuit breaker positions. By translating critical analog electrical states into digitized Ethernet data packets, it passes real-time diagnostics to the central control processors over dual redundant networks. This steady analytical feedback eliminates blind spots within the power loop, allowing the system to identify minor voltage sags or cross-conduction issues before they trigger unexpected control failures or full turbine trips. Petrochemical facilities, large-scale utility power plants, and industrial processing hubs rely on this diagnostic unit to protect their main control electronics from sudden power supply breakdowns.

Part Number Breakdown

The alpha-numeric model format denotes specific engineering parameters, hardware groupings, and functional layers for the Mark VIe line:

• IS220: Specifies the core hardware architecture framework utilizing dual-port Ethernet interface technology.
• PPDA: Identifies the precise application sub-class as a Power Distribution Feedback and Monitoring pack.
• H1: References the specific electrical interface version and internal processor build classification.
• A / B: Indicates the mechanical revision index tracking factory component updates and physical shell designs.

Technical Specifications

• Model: IS220PPDAH1 (Directly covers variants IS210PPDAH1A and IS220PPDAH1B)
• Brand: General Electric (GE)
• Series: Mark VIe Speedtronic
• Product Condition: 100% Brand New Original
• Product Type: Power Distribution Feedback Pack
• Country of Origin: United States
• Net Weight: 0.68 kg
• Dimensions: 153 mm H x 102 mm W x 43 mm D
• Input Supply Voltage: 28 VDC nominal (derived from the connected terminal board interface)
• Communication Interface: Dual redundant 100 Base-TX RJ45 Ethernet ports
• Voltage Monitoring Range: Tracks 24 VDC, 48 VDC, and 125 VDC nominal distribution buses
• Current Consumption: 0.5 A maximum at 28 VDC
• Analog Measurement Accuracy: Within 1.0 % of full-scale value across the operating temperature limits
• Processor Architecture: Integrated microprocessing core running high-speed internal diagnostic routines
• Operating Ambient Temperature: -30 to 65 deg C
• Storage Ambient Temperature: -40 to 85 deg C
• Relative Humidity Matrix: 5 % to 95 % maximum limit, non-condensing atmosphere

Engineering Advantages

The IS220PPDAH1 pack introduces specific physical design elements and computing configurations to address harsh industrial electrical environments:

• Dual Network Redundancy: The device incorporates two separate, independent Ethernet controllers. This dual-path configuration ensures that even if one network line breaks or experiences severe noise interference, diagnostic metrics continue flowing seamlessly over the backup line without interrupting turbine monitoring loops.
• Isolated Differential Sensing: High-voltage isolation barriers separate the internal digital processor from the high-voltage field power rails. This isolation prevents field-side ground faults or sudden short-circuits from traveling backwards into the Ethernet lines, shielding the main controller panels from electrical damage.
• Compact Vibration-Resistant Housing: The hardware features a rugged, enclosed composite shell that securely latches directly onto the terminal board without loose wiring harnesses. This direct mount layout resists high-frequency structural vibrations common near heavy steam or gas turbines, eliminating loose pin connections.
• Real-Time Synchronized Sampling: The internal processing clock locks onto the system-wide time protocol, synchronizing voltage samples to the millisecond. This accurate timing allows engineers to evaluate a power failure sequence precisely, matching breaker trips with network alarm logs to find root causes quickly.

FAQs

• Can this pack replace the older IS220PPDAH1A or upgrade to the IS220PPDAH1B seamlessly? Yes. The IS220PPDAH1 serves as the foundational design layer for this hardware series. The H1A and H1B represent progressive factory component revisions that maintain identical firmware interfaces, physical mounting footprints, and pin-out configurations, allowing direct substitution on the terminal board.
• Does this feedback unit require external calibration tools during initial commissioning? No. The module comes factory-calibrated across its full voltage tracking ranges. During installation, the Mark VIe control software automatically runs internal diagnostic checks to verify zero-point stability and baseline accuracy against predefined system constants, eliminating field calibration tasks.
• What specific terminal boards accept this feedback pack? The IS220PPDAH1 pack connects directly onto dedicated power distribution terminal boards within the Mark VIe panel layout, such as the JPDA or SPDA boards. It utilizes a multi-pin plug connector on the back of the pack shell to establish all power inputs and measurement connections without individual jumper leads.
