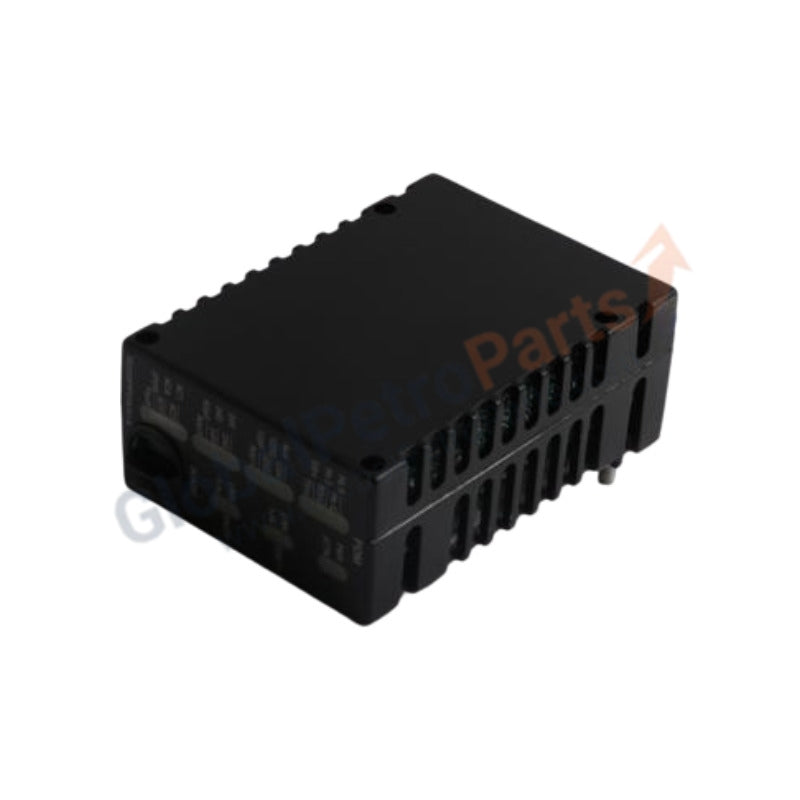

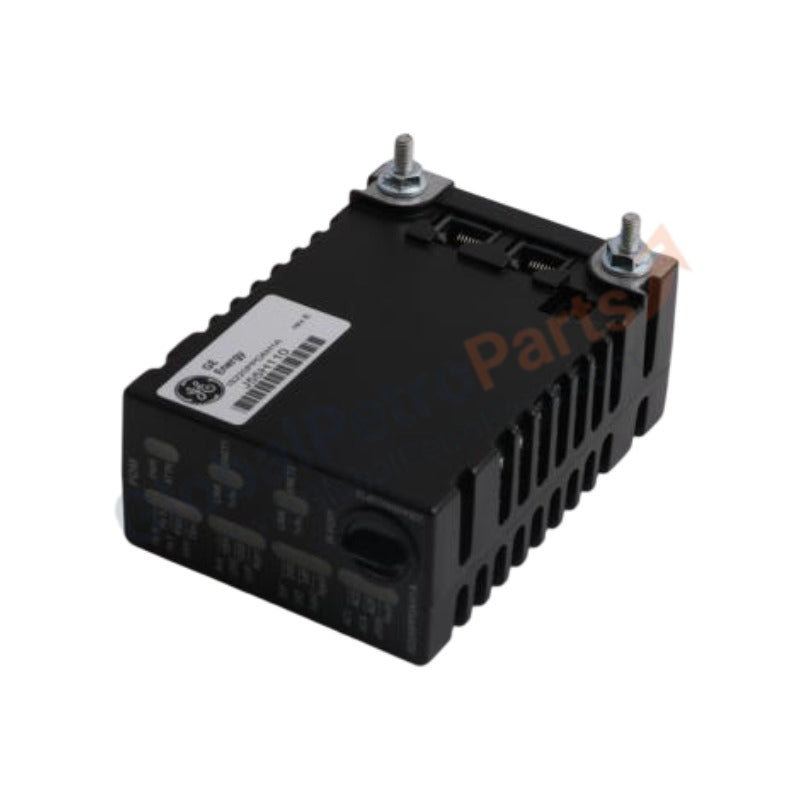

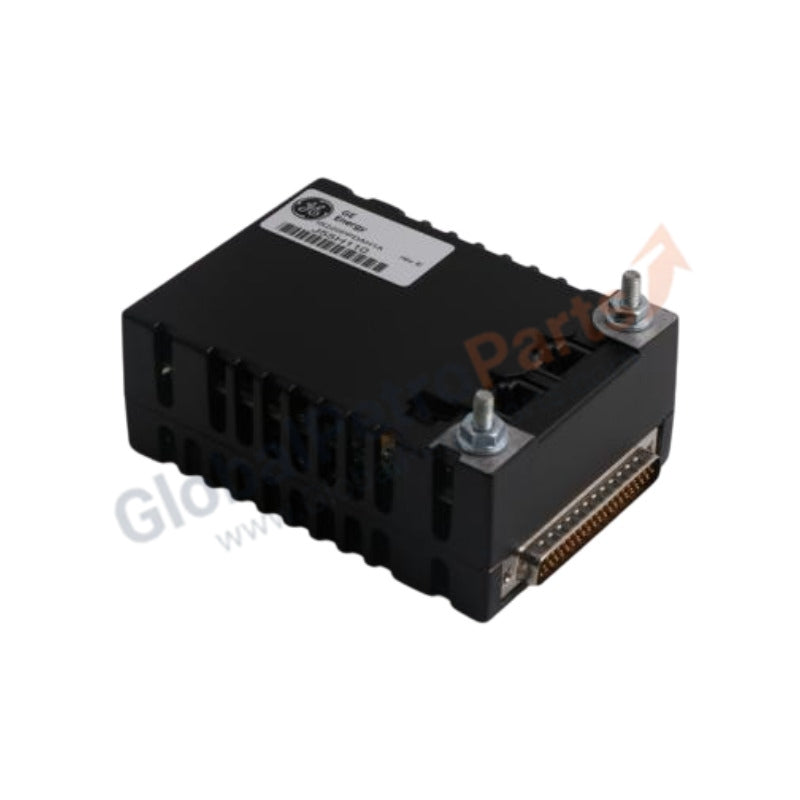

GE IS220PPDAH1A | Mark VIe Power Distribution System Feedback I/O Pack Module

Product Overview

The GE IS220PPDAH1A operates as a dedicated Power Distribution System Feedback I/O Pack within the General Electric Mark VIe and Mark VIes control architectures. This intelligent hardware module tracks the physical operational health of the core cabinet power distribution system. It monitors systemic diagnostics, including input bus voltages, circuit breaker trips, branch fuse integrity, and ground fault leakage currents across the control enclosure. Integrating this Brand New, original GE component into your control network ensures instant notification of minor power anomalies, preventing unmanaged cabinet electrical failures from escalating into sudden total turbine trip events.

Technical Specifications

The table below details the electrical limits, network capabilities, and physical requirements of the IS220PPDAH1A module:

Engineering Advantages

The IS220PPDAH1A resolves critical power infrastructure and monitoring challenges faced by large power plants and industrial facilities:

• Real-Time Fault Isolation: The module pinpoints blown fuses and tripped circuit breakers instantly, eliminating hours of manual multimeter tracing during critical system maintenance.

• Onboard Ground Fault Detection: Sensitive differential measurement circuits identify early ground insulation degradation on field wiring loops, stopping localized electrical shorts before they damage adjacent I/O modules.

• Direct Edge-of-Rack Communication: Dual redundant IONet ports stream raw power metrics directly to the central controller fabric, removing reliance on traditional hardware-restricted backplanes.

• Convection-Cooled Longevity: The high-efficiency internal circuit design generates minimal thermal waste, allowing full performance up to +65°C without demanding internal cabinet cooling fans.

FAQs

• What specific equipment interfaces directly with the IS220PPDAH1A pack?

  The IS220PPDAH1A mounts directly onto specialized Mark VIe power distribution boards, such as the JPDA or SPDA sub-panels. It captures raw electrical signals through the underlying board traces, which eliminates messy discrete wire bundles inside the power cabinet.

• Does this power feedback pack require manual calibration inside the field cabinet?

  No. The IS220PPDAH1A contains pre-calibrated digital sensor paths. The primary Mark VIe ControlST software platform handles all scaling, voltage alarm trip limits, and configuration variables digitally from the central engineer workstation.

• Can technicians swap an active IS220PPDAH1A module while the control system is live?

  Yes. In fully redundant Mark VIe architectures with dual-pack setups on the distribution board, technicians can safely replace a single faulty PPDA module online. The redundant pack retains full diagnostic monitoring over the active power system throughout the physical swap out. Ensure that you ground yourself using an ESD wrist strap before handling the replacement hardware.
