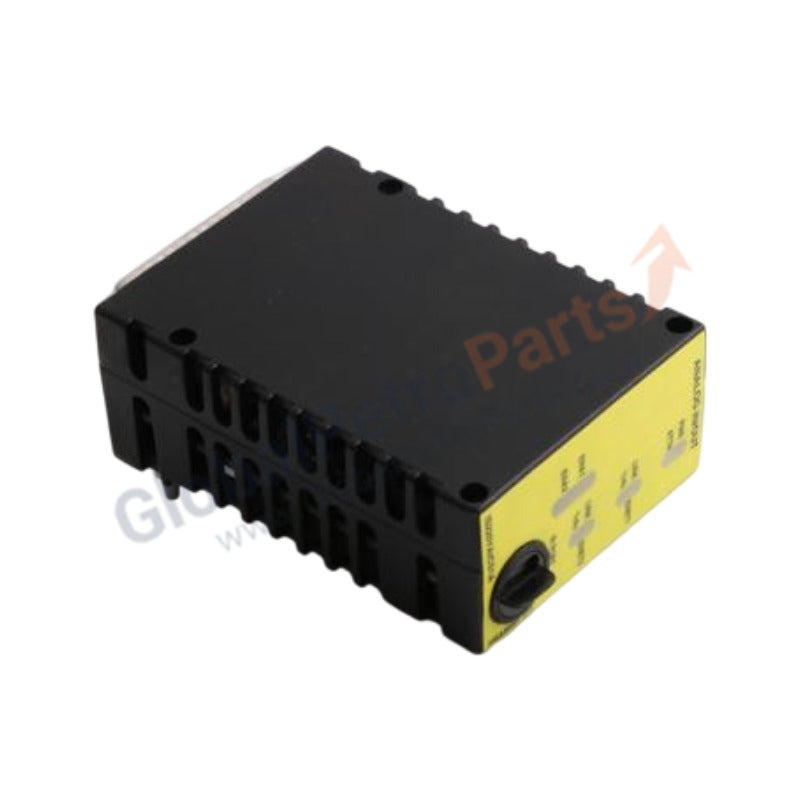

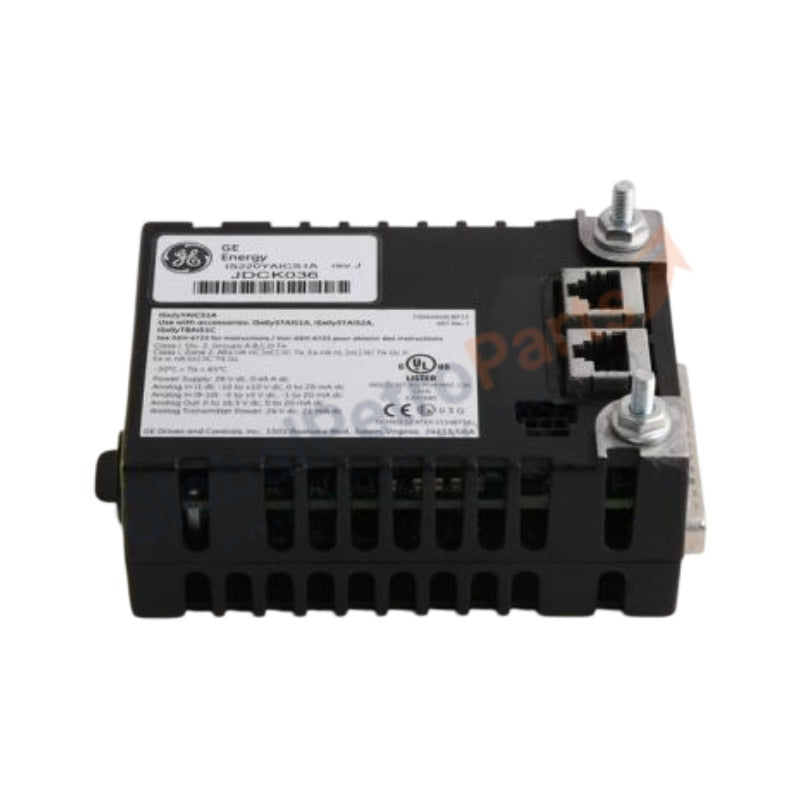

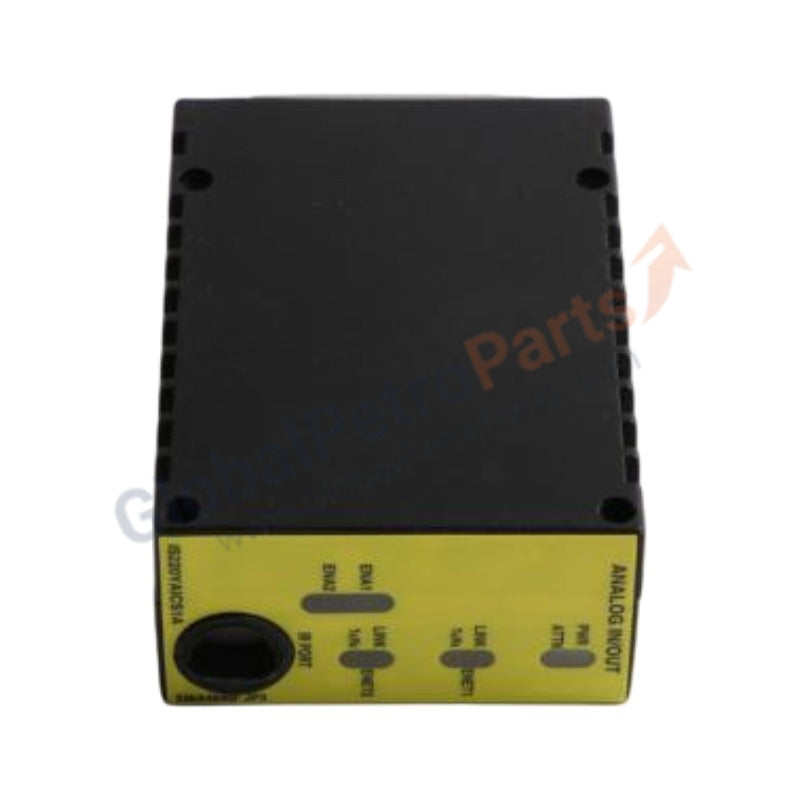

GE | IS220YAICS1A Mark VIe Speedtronic Analog I/O Pack Module

Product Overview

The GE IS220YAICS1A functions as a high-density, processor-backed analog input/output pack within the General Electric Mark VIe Speedtronic turbine control platform. This intelligent automation device attaches directly to compatible analog terminal boards to interface process transmitters, servo actuators, and instrumentation loops with the central control processors. It accommodates 10 analog inputs and 2 analog outputs, converting raw field variables into digitized logical values and transmitting this control data across redundant industrial Ethernet IONet pathways. By managing signal conversion, calibration, and loop diagnostics locally at the terminal layer, this module establishes precise closed-loop control for gas, steam, and hydro turbomachinery systems.

We source and supply this technical critical component exclusively as 100% brand new, original factory-sealed stock to guarantee clean electronic internal pathways and flawless structural execution inside your control panels.

Technical Specifications

The IS220YAICS1A integrates a localized microcontroller, dual RJ-45 transceiver interfaces, high-resolution A/D and D/A converters, and a heavy-duty 37-pin mating socket inside a compact protective enclosure. The table below outlines the core operational, electrical, and environmental parameters:

Engineering Advantages

• Integrated Dual-Port IONet Redundancy: The module utilizes two independent RJ-45 copper ports to stream input and output data simultaneously across parallel IONet loops. If an external network switch fails or an individual trunk cable snaps during turbine operation, the secondary network link maintains data throughput with zero signal loss or processing latency.

• Onboard Loop Power and Current Diagnostics: The pack delivers stable, current-limited excitation voltage to power external 2-wire transmitters directly through the terminal board connections. Local hardware circuits continuously audit the loop current parameters. If a field wire develops an open circuit or a dead short, the module detects the anomaly instantly and isolates the affected channel to shield the remaining input tracks from damage.

• High-Speed Anti-Aliasing Filtering: Hardware low-pass RC filters line each analog input channel path to eliminate high-frequency electromagnetic interference (EMI) and line ringing caused by nearby heavy machinery. The internal microcontroller applies additional digital software filtering to smooth the signals before broadcasting the data packet, neutralizing process control loop jitter.

• Direct Standoff Mechanical Seating: The structural casing incorporates integrated locking screws that secure the pack directly onto the terminal board standoffs. This rigid, direct-coupling layout prevents pin misalignment on the 37-pin D-sub interface, resists industrial high-frequency cabinet vibrations, and saves physical layout space by eliminating extra backplate mounting brackets.

FAQs

• Q1: What specific types of inputs can I configure on the 10 analog channels of the IS220YAICS1A?

  A1: The IS220YAICS1A provides outstanding configuration flexibility. It handles a mix of standard industrial signals, including 4-20 mA current loops, 0-1 mA instrumentation inputs, ±5 V DC spans, and ±10 V DC voltage loops. You define the specific electrical attributes for each individual channel within the ControlST software configuration workspace.

• Q2: Does this analog I/O pack support live hot-swapping procedures?

  A2: Yes. When you deploy this pack in a redundant or Triple Modular Redundant (TMR) terminal board architecture, you can loosen the securing bolts and hot-swap a faulted IS220YAICS1A pack while the turbine runs live. The parallel operational packs on the terminal board maintain unbroken feedback signals and control execution throughout the replacement window.

• Q3: How does the module handle output signal verification for the 2 analog drive loops?

  A3: The internal circuitry loops the actual output current from the 2 analog drive channels back through dedicated internal diagnostics converters. The pack continuously compares this readback value against the reference command vector issued by the master controller, enabling immediate detection of field wiring problems or actuator coils faults.
