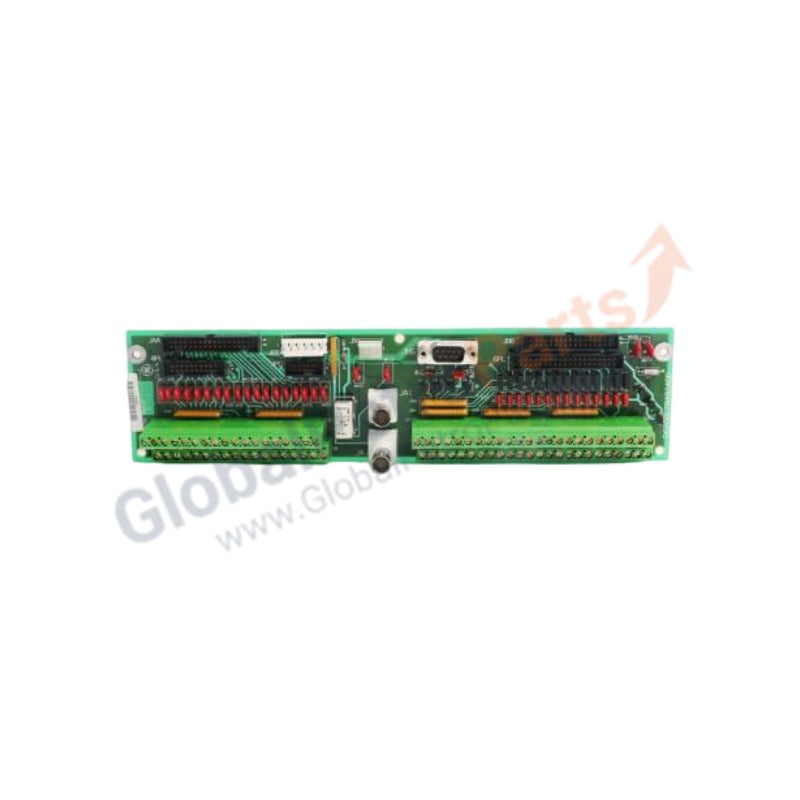

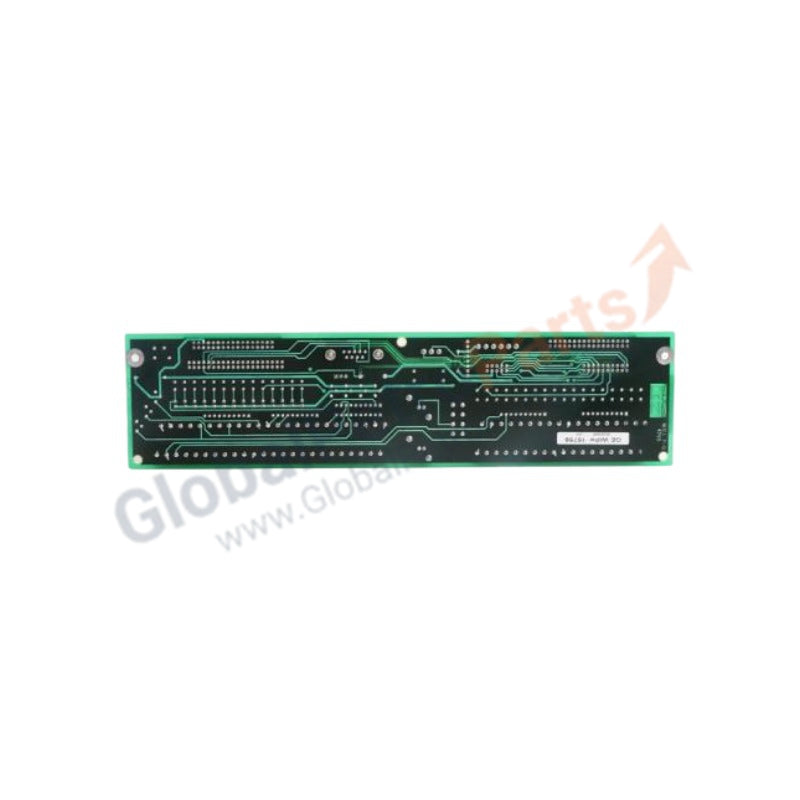

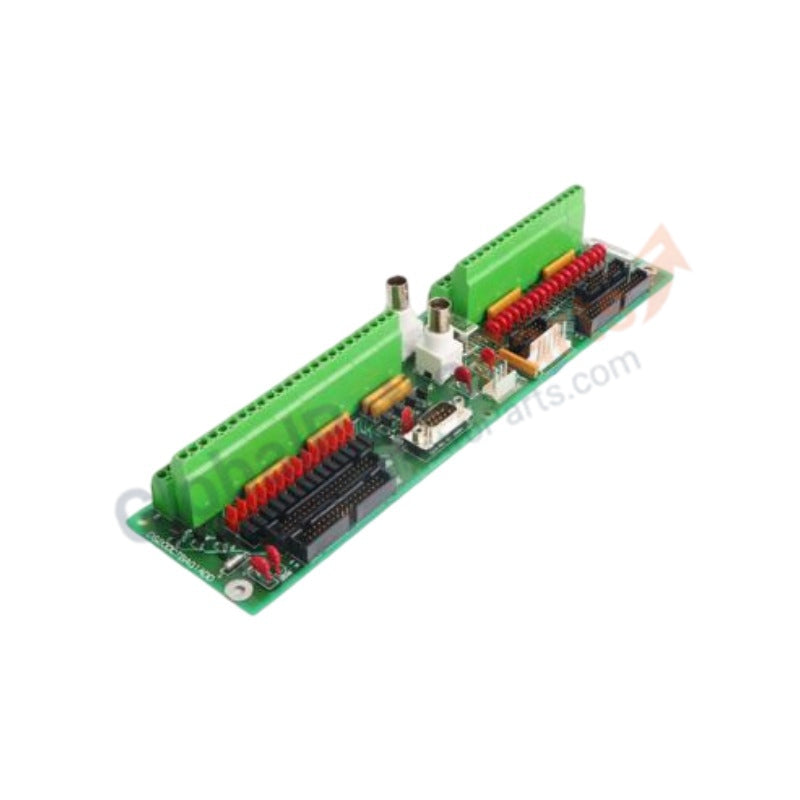

GE Mark V CTBA Current Transformer Terminal Board DS200CTBAG1A

GE Fanuc

GE Mark V CTBA Current Transformer Terminal Board DS200CTBAG1A

In stock
  • Manufacturer: GE Fanuc

  • Product No.: DS200CTBAG1A

  • Product Type: Mark V CTBA Current Transformer Terminal Board

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 620g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Product Overview

The GE DS200CTBAG1A (DS200CTBAG1A) serves as the dedicated Current Transformer (CT) Terminal Board for the Mark V Speedtronic turbine control system. This module provides the physical and electrical interface for monitoring generator and bus current levels. We supply this unit as 100% Brand New original equipment. The DS200CTBAG1A accepts high-current signals from external CTs and conditions them for processing by the control cores. It plays a critical role in turbine protection strategies, including overcurrent detection and generator differential protection. By providing a secure termination point for heavy-gauge field wiring, this board ensures the control system receives precise electrical feedback required for safe grid synchronization and load management.

Technical Specifications

The DS200CTBAG1A utilizes ruggedized terminal blocks and specialized conditioning circuitry to handle high-current instrumentation signals.

Feature Specification
Model Number DS200CTBAG1A
Manufacturer General Electric (GE)
System Series Mark V Speedtronic
Input Type AC Current Transformer (CT) Inputs
Circuitry Passive conditioning and surge suppression
Termination Heavy-duty screw-type barrier terminal blocks
Connectors Multi-pin ribbon cable headers for core interface
Operating Temperature 0 to 55 Celsius
Mounting Standard Mark V Core Terminal Rack

Engineering Advantages

The DS200CTBAG1A solves specific technical challenges associated with high-power electrical monitoring:

  • Advanced Surge Suppression: GE engineers equipped the CTBA board with high-capacity Metal Oxide Varistors (MOVs) and filtering capacitors. These components neutralize high-voltage transients that often occur during grid switching or lightning strikes, preventing damage to the sensitive digital control backplane.

  • Low-Impedance Signal Paths: The board features thick copper traces designed to handle the secondary current of the CTs without generating excessive heat. This preserves signal accuracy and prevents thermal drift, ensuring the turbine control logic receives an exact representation of the generator's electrical load.

  • Fail-Safe Termination Design: The barrier terminal blocks feature high-torque screw connections that resist loosening in high-vibration environments near the turbine generator set. This ensures a continuous electrical path, which is critical because an open-circuit CT can generate lethal voltages.

  • Seamless Integration with Protection Cores: The DS200CTBAG1A communicates directly with the  (Protective) core via dedicated ribbon cables. This direct path allows the system to execute emergency trips in milliseconds if it detects a catastrophic electrical fault.

FAQs

  • How does the DS200CTBAG1A differ from standard digital terminal boards?

    Unlike digital boards that handle 125 VDC discrete signals, the CTBA is specifically engineered for AC current signals. It contains unique passive components designed to scale AC inputs for the A/D converters within the Mark V control core.

  • Is it safe to disconnect the field wiring while the system is live?

    No. You must never disconnect CT secondary wiring while the primary circuit is energized. An open-circuited CT will develop extremely high voltages that can destroy the DS200CTBAG1A and pose a significant safety risk to personnel. Always short the CT secondaries before removing the board.

  • Does the "G1A" revision offer compatibility with later Mark V systems?

    The G1A is a standard revision that fits most Mark V turbine control panels. While it maintains a standard footprint, always verify that the jumper settings for CT scaling match your specific generator nameplate and CT ratios during installation.

  • What are the primary indicators of a board failure?

    The most common signs include erratic current readings on the HMI or "Phase Unbalance" alarms. If you suspect a hardware failure, inspect the onboard surge suppressors for signs of thermal stress or discoloration caused by grid transients.
