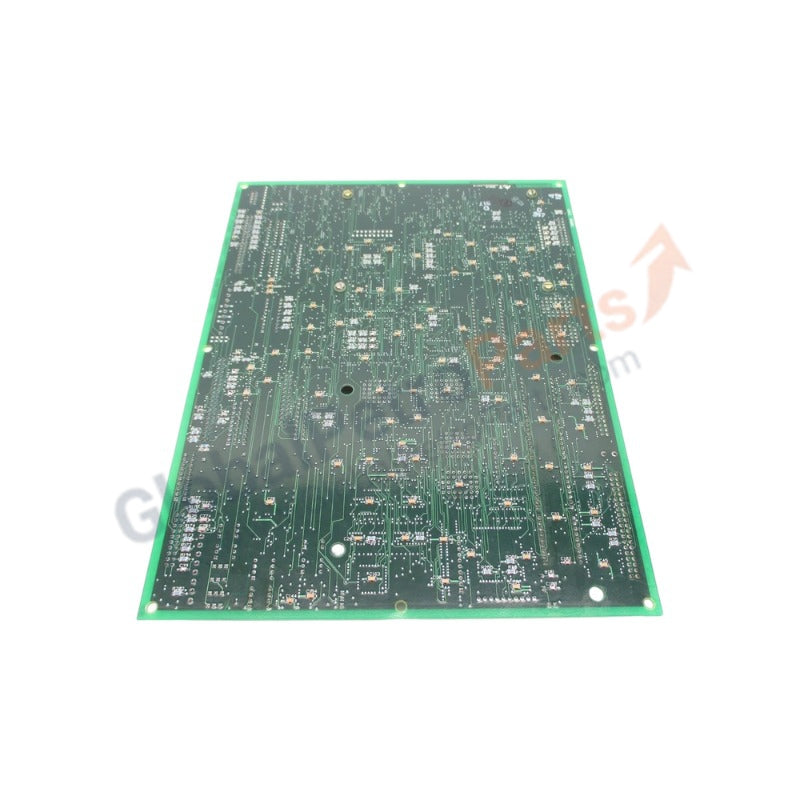

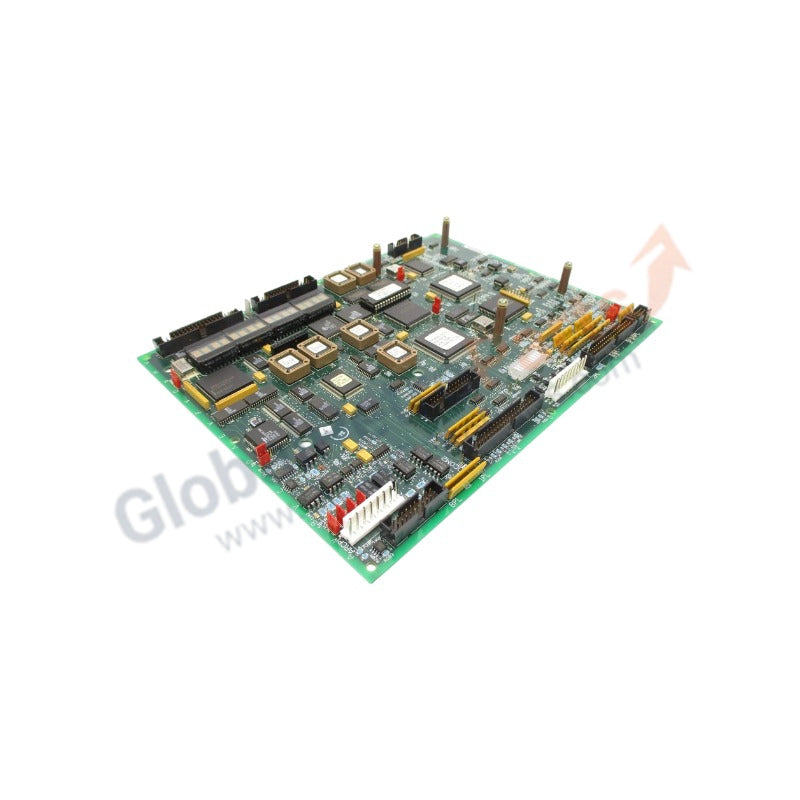

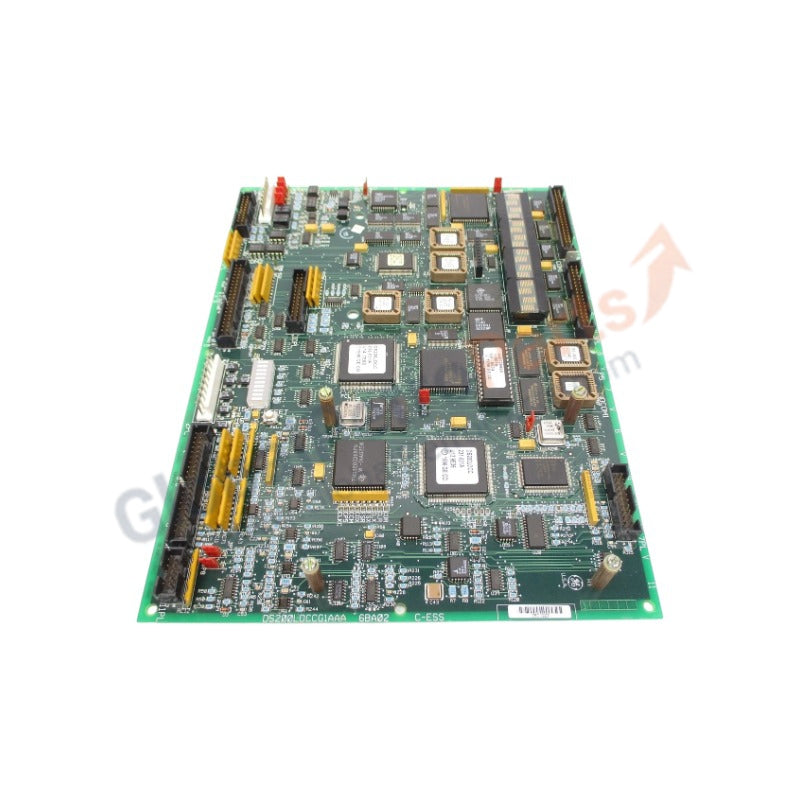

GE Mark V Drive Control and LAN Communications Board DS200LDCCG1AAA

Product Overview

The GE DS200LDCCG1AAA (DS200LDCCG1A) serves as the primary intelligence hub and communication gateway for the GE Mark V Drive and Turbine Control system. This Drive Control and LAN Communications (LDCC) board integrates high-speed computational power with robust network interfacing, managing everything from core drive logic to ARCNET and DLAN communications. We supply this component as 100% Brand New and Original, ensuring your critical power generation or industrial drive systems operate with maximum deterministic accuracy. The DS200LDCCG1AAA effectively centralizes operator interface data and coordinates real-time control signals across the entire Mark V rack.

Technical Specifications

Engineering Advantages

The DS200LDCCG1AAA offers distinct technical solutions for complex automation challenges:

• Asynchronous Processing Power: The board utilizes multiple dedicated microprocessors to separate communication tasks from real-time control logic. This prevents network congestion from lagging the critical speed or torque control loops, maintaining system stability during high data traffic.

• Superior Thermal Management: GE engineered the "G1AAA" revision with high-tolerance industrial components that resist the performance drift caused by heat-intensive turbine cabinet environments.

• Direct-Link Diagnostics: The integrated 14-segment LED display provides immediate, on-site hardware health status. Engineers can verify the boot sequence and isolate network failures without needing an external PC, significantly reducing Mean Time to Repair (MTTR).

• High-Fidelity Signal Paths: Specialized shielding and multi-layer PCB routing minimize electromagnetic interference (EMI) on the internal communication bus, ensuring error-free data transmission between the LDCC and the Signal Processor boards.

Installation & Site Configuration Protocols

To ensure the performance of the 100% Brand New hardware, engineers must adhere to the following protocols:

1. EPROM Migration: The DS200LDCCG1AAA features several socketed EEPROM/EPROM chips containing your site-specific application software. You must move these chips from your original board to the new unit. Observe the notch orientation carefully to avoid permanent chip damage.

2. Jumper Verification: This board contains numerous hardware jumpers that define signal scaling and communication ID settings. You must match the jumper positions on the new board exactly to those on the replaced unit before applying power.

3. Static Mitigation: High-density CMOS processors on the LDCC are highly susceptible to ESD. Use a grounded wrist strap and anti-static handling procedures throughout the installation process.

FAQs

• Can the DS200LDCCG1AAA replace an older DS200LDCCG1A model?

  Yes. The "AAA" suffix denotes the specific revision level. It maintains full backward compatibility with earlier G1 series boards and functions as a direct drop-in replacement while utilizing modernized component standards.

• Does the board ship with pre-loaded drive parameters?

  The board hardware is brand new and blank. It requires your specific site firmware, which is stored in the socketed chips. Transferring your original chips to this new board ensures the drive retains its unique configuration.

• What should I check if the LED display shows a communication error?

  First, verify the seating of the ARCNET ribbon cables and the orientation of the communication-related EPROMs. If the jumpers for the LAN ID are set incorrectly, the board will fail to sync with the rest of the Mark V system.
