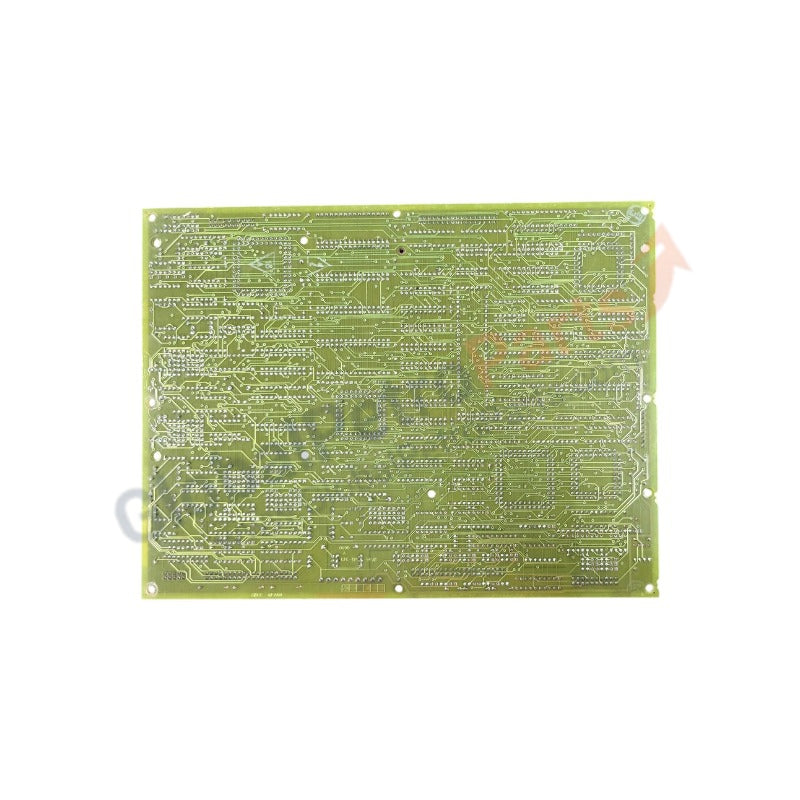

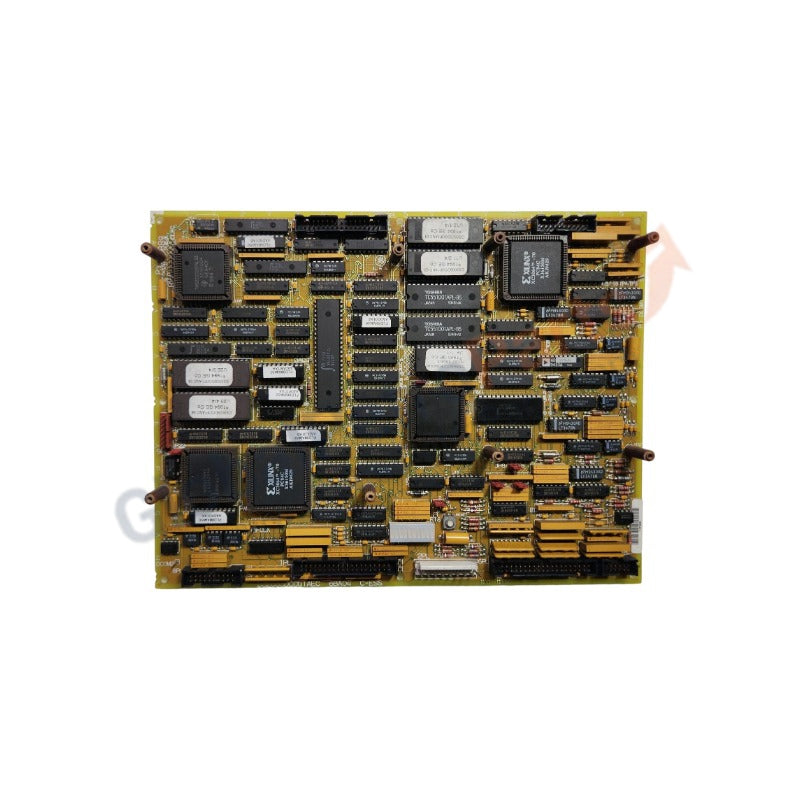

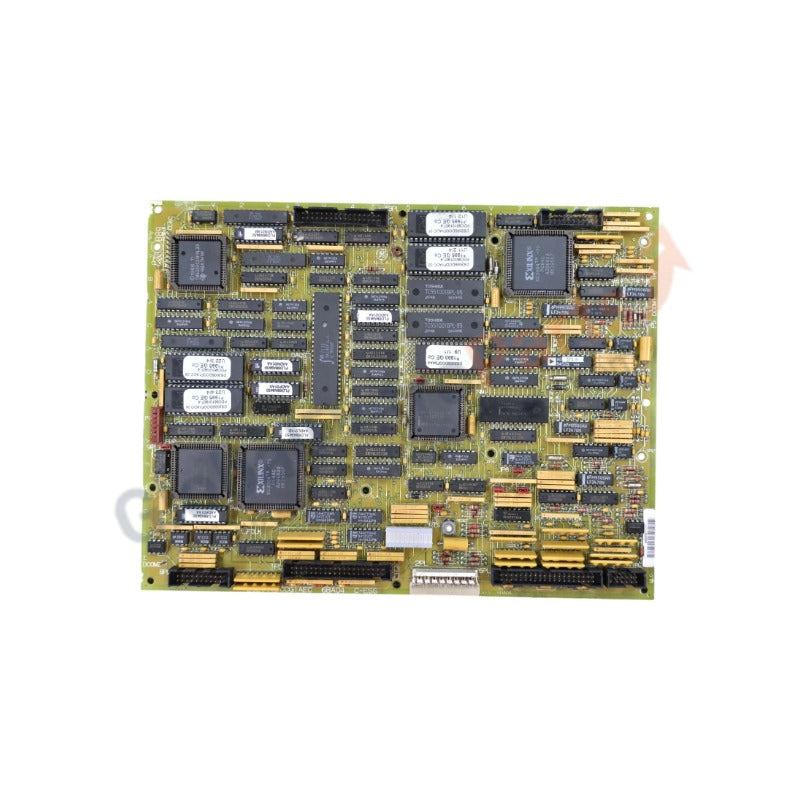

GE Mark V Drive Control and LAN Communications Board DS200SDCCG1AEC

Product Overview

The GE DS200SDCCG1AEC (DS200SDCCG1A) stands as the primary controller and communication gateway for the GE Mark V and Innovation Series drive systems. As a "Secondary Design Control Card" (SDCC), it executes the master control algorithms for the drive while simultaneously managing Local Area Network (LAN) interfaces via ARCNET and DLAN. We provide this unit as 100% Brand New and Original, ensuring your industrial drive operates with the highest level of deterministic accuracy. This board coordinates all gate-level firing commands and diagnostic monitoring, making it the central intelligence node of the drive rack.

Technical Specifications

Engineering Advantages

The DS200SDCCG1AEC offers several technical solutions to optimize drive performance:

• Asynchronous Dual-Core Processing: The board utilizes separate processors for control logic and network communications. This architecture ensures that high network traffic never interferes with the millisecond-precision timing required for motor speed and torque regulation.

• Revision "G1AEC" Reliability: This specific revision incorporates hardened components designed to resist the signal drift caused by thermal fluctuations. It features updated logic gates that offer better timing margins than the original "G1A" series.

• Integrated Drive Diagnostics: The on-board LED display provides real-time hexadecimal fault codes. Engineers can isolate internal bus errors, communication timeouts, or hardware failures directly from the board, significantly reducing downtime during commissioning.

• High-Speed I/O Interface: Multiple high-density ribbon connectors (J-ports) facilitate high-bandwidth data exchange with the Signal Processor (DSPC) and Gate Amplifier boards, ensuring minimal latency in the control loop.

Installation & System Integration Protocols

To maintain the 100% Brand New warranty and ensure operational safety, adhere to these standards:

1. EPROM/EEPROM Migration: The SDCC board relies on site-specific firmware stored in socketed chips. You must transfer these chips from your original board to the new DS200SDCCG1AEC. Ensure the chips are seated in the correct sockets and oriented properly to prevent logic errors.

2. Jumper Synchronization: This board contains hardware jumpers that define network IDs and signal scaling. Match the jumper settings on the new board exactly to the configuration of the unit being replaced before applying power.

3. ESD Precautions: The 32-bit microprocessors on this board are highly sensitive to static discharge. Utilize a grounded wrist strap and anti-static mat during the entire handling and installation process.

FAQs

• Can the DS200SDCCG1AEC replace an older DS200SDCCG1A or G1AAB?

  Yes. The "G1AEC" is a backward-compatible functional successor. It provides the same physical footprint and electrical pinouts while utilizing more robust modern components to replace the earlier iterations.

• Does this board ship with pre-loaded software?

  The hardware is brand new, but the functional software is typically stored in the socketed EPROM chips. You should move your existing chips to this new board to ensure it recognizes your specific drive parameters and network settings.

• What are common indicators of an SDCC board failure?

  Typical signs include "Drive Control Fault" alarms, a failure of the LED status display to initialize, or intermittent ARCNET communication losses that trigger emergency system trips.
