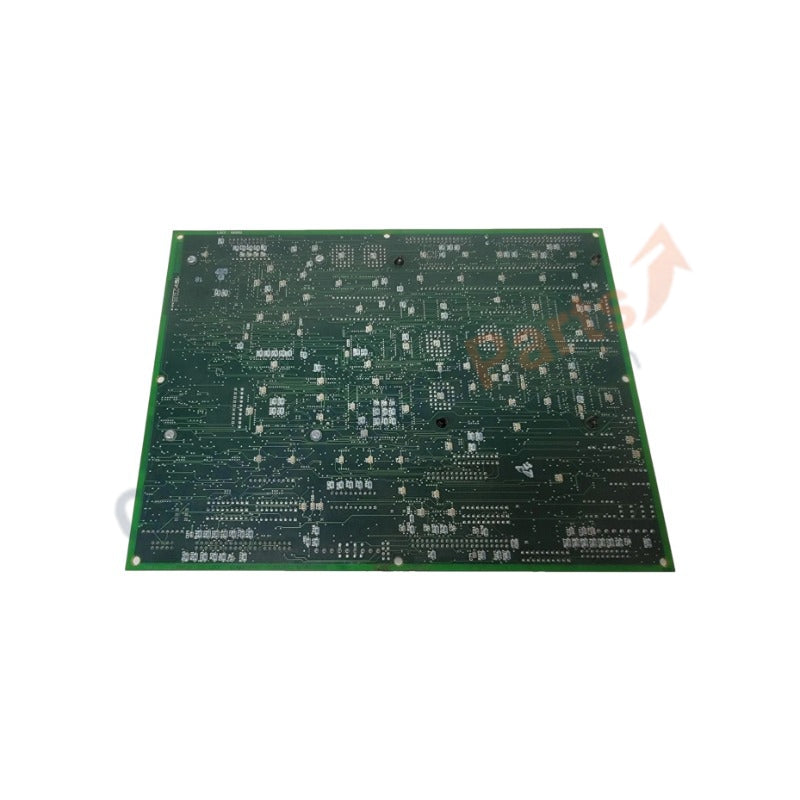

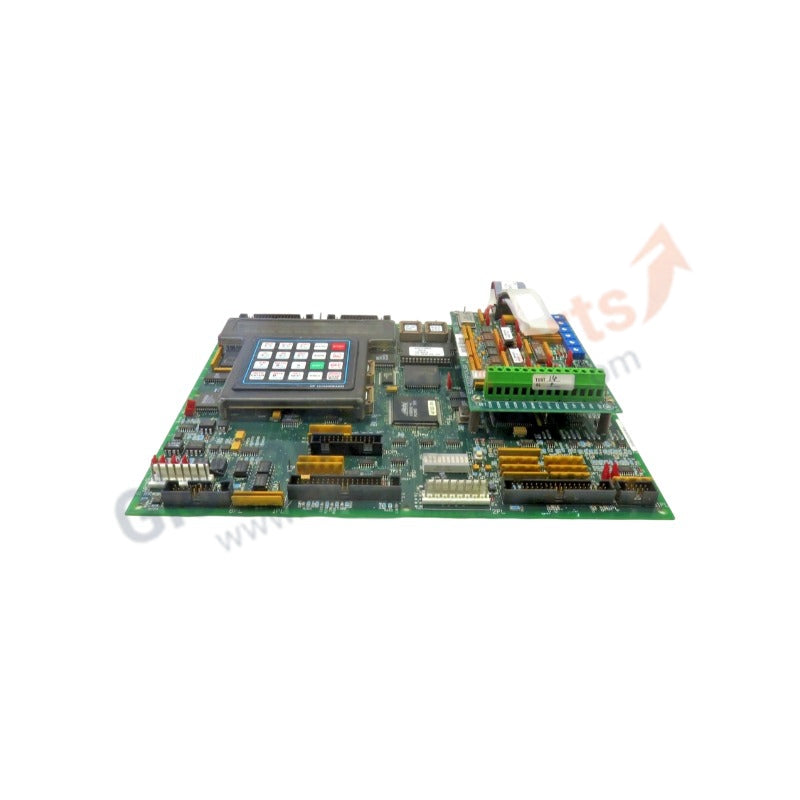

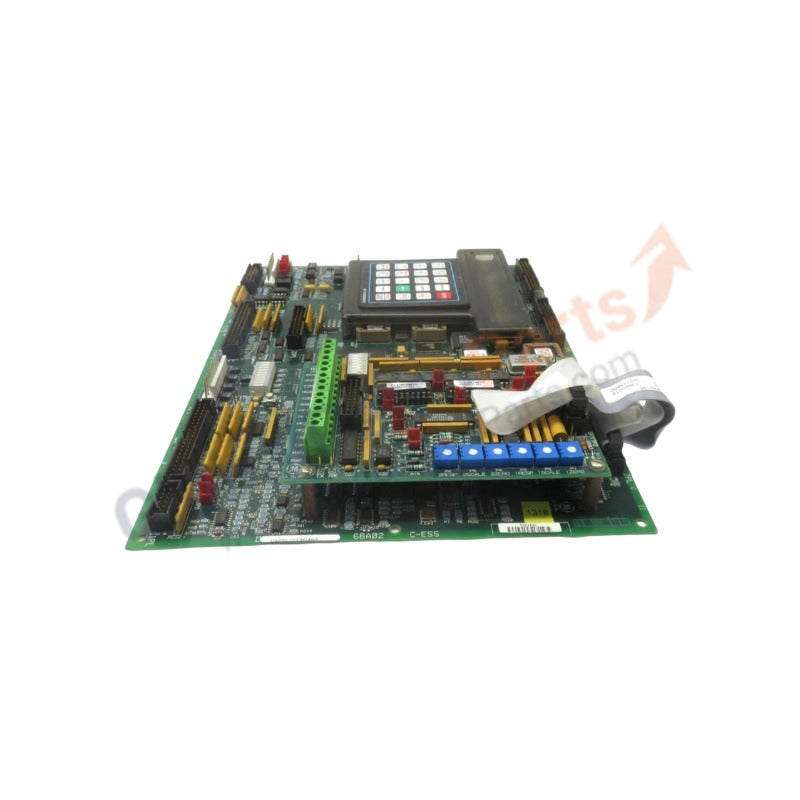

GE Mark V Drive Control Board DS200LDCCH1ANA

Product Overview

The DS200LDCCH1ANA (DS200LDCCH1ANA) serves as the primary Drive Control and LAN I/O Board for the GE Mark V Speedtronic system and associated drive technologies. This multi-functional board executes the core drive control logic, managing the interface between the LAN (Local Area Network) and the power conversion hardware. It processes high-speed computational tasks, including motor control algorithms, I/O signal management, and system diagnostics. This unit arrives as 100% Brand New and original, providing the essential processing power to maintain deterministic control over industrial drive systems and turbine peripherals.

Technical Specifications

The DS200LDCCH1ANA integrates multiple microprocessors and high-density logic circuits to handle simultaneous communication and control tasks.

Engineering Advantages

• Dual-Function Architecture: By combining drive control logic and LAN communication on a single PCB, the DS200LDCCH1ANA reduces the total board count in the control rack, simplifying the internal bus architecture and increasing MTBF (Mean Time Between Failures).

• Real-Time Determinism: Dedicated onboard processors handle I/O interrupts and control loops independently, ensuring that network traffic does not delay critical motor control or safety functions.

• Enhanced Diagnostic Feedback: The board features an alphanumeric LED display that provides real-time error codes and status messages. This enables technicians to troubleshoot communication faults or drive errors directly at the rack without a handheld tool.

• High-Speed LAN Interface: The integrated LAN circuitry supports fast data exchange between the drive and the HMI or other controllers, allowing for precise monitoring of torque, speed, and flux parameters.

Installation and Field Guidelines

1. Software Configuration: The DS200LDCCH1ANA requires specific firmware (EPROMs) to function within your unit. When replacing an existing board, technicians must ensure the revision levels of the EPROMs on the new board match the site-specific requirements or transfer the chips from the old unit.

2. Fiber Optic Integrity: If your system utilizes the fiber optic ports on the LDCC board, inspect the cable ends for dust or scratches. Even microscopic debris can cause intermittent "Communication Loss" alarms.

3. Static Shielding: This board contains ultra-sensitive VLSI components. Maintain strict ESD protocols, including the use of a grounded mat and wrist strap, during the entire installation and chip-swapping process.

FAQs

Q: What does the "ANA" suffix indicate for this LDCC board?

A: The "ANA" suffix denotes the specific hardware revision and grouping. "A" refers to the base board design, "N" indicates the specific functional revision, and the final "A" designates the artwork or component package revision. It is functionally compatible with LDCC slots requiring this specific revision level.

Q: Can this board be used in both Mark V and GE Drive systems?

A: Yes. While primarily known as a Mark V component, this board also functions as the core control module in various GE legacy DC and AC drive systems that utilize the Mark V hardware platform.

Q: Does the board come with pre-installed EPROMs?

A: Generally, brand-new boards ship without site-specific firmware chips. You must install the EPROMs that contain your unique control constants and turbine logic to make the board operational.
