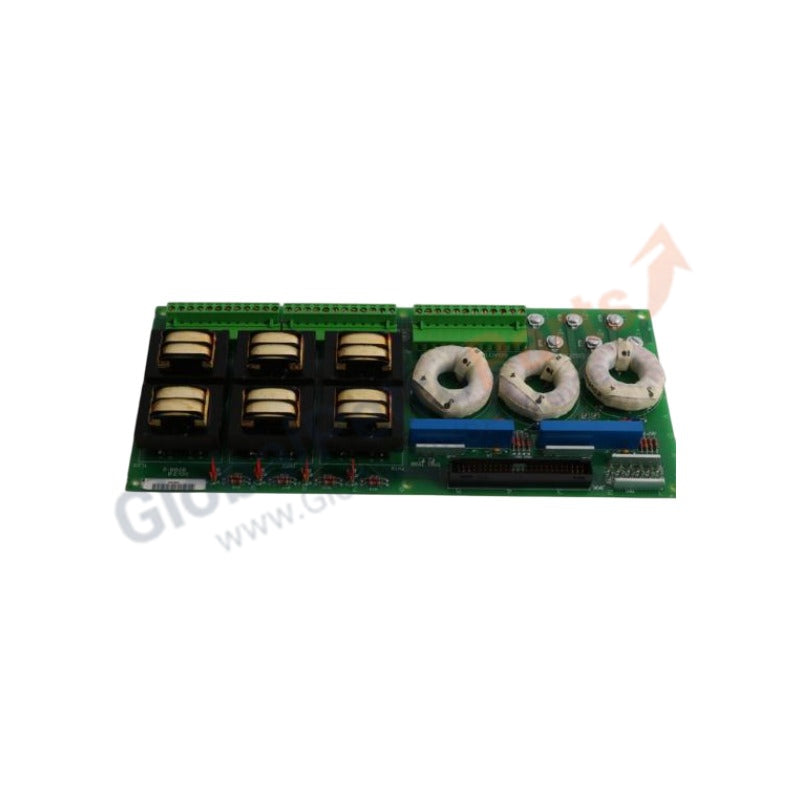

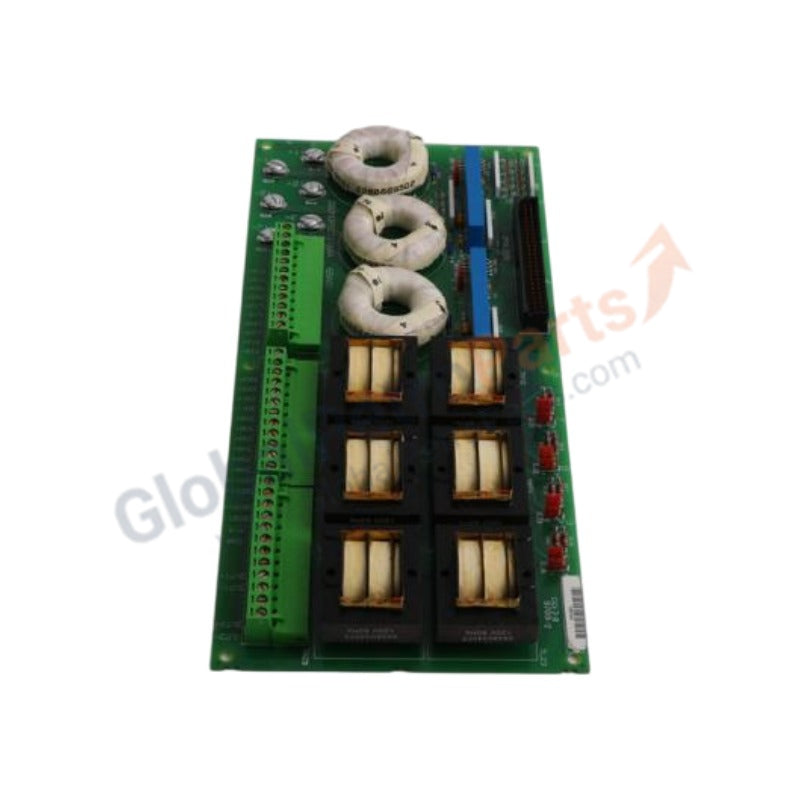

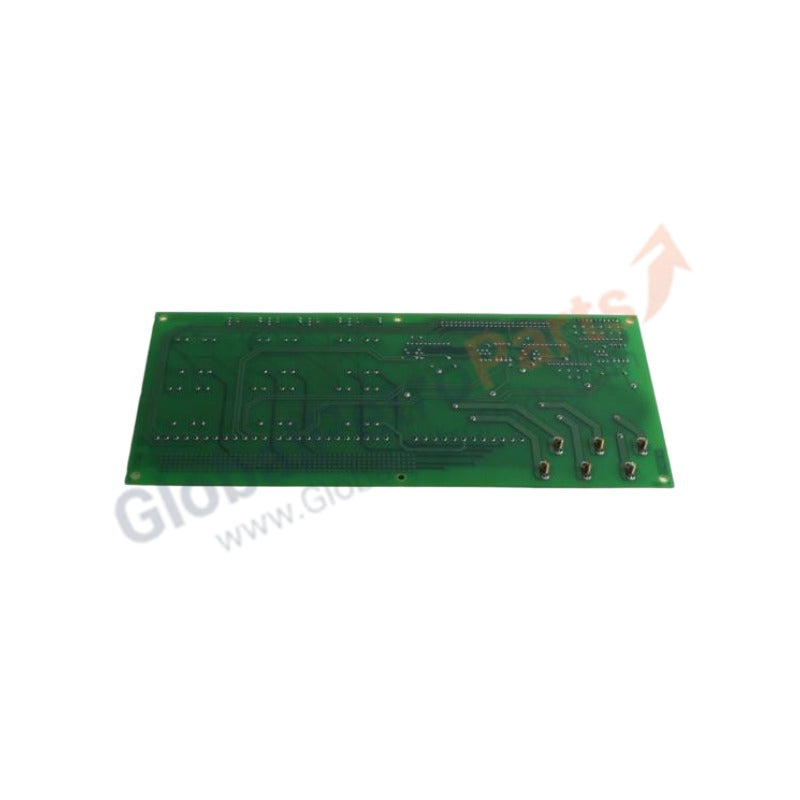

GE | Mark V Power Terminal Card | DS200PTCTG1BAA

Product Overview

The DS200PTCTG1BAA (DS200PTCTG1BAA) serves as a specialized Power Terminal Card (PTCT) within the General Electric Speedtronic Mark V control architecture. This module primarily handles signal conditioning and distribution for various power-related inputs and outputs required by the turbine controller. It interfaces directly with the power distribution modules to provide filtered voltage and current signals to the control processors. This unit arrives as 100% Brand New and original, ensuring the elimination of signal noise and electrical drift that often plagues refurbished or aged components in critical power generation environments.

Technical Specifications

The DS200PTCTG1BAA utilizes high-grade industrial components to maintain signal accuracy under extreme thermal and electrical stress.

Engineering Advantages

• High-Integrity Signal Isolation: The board incorporates isolation transformers and optocouplers that prevent high-voltage spikes from penetrating the sensitive logic circuits of the core processors.

• EMI/RFI Suppression: Precision-engineered filtering circuits stabilize power inputs, mitigating the effects of electromagnetic interference common in generator halls.

• Simplified Field Wiring: The DS200PTCTG1BAA features clearly labeled terminal blocks and high-density ribbon headers (e.g., 1PL, 2PL), which reduce wiring errors during complex control cabinet upgrades.

• Passive Cooling Architecture: The PCB layout prioritizes airflow and heat dissipation for power resistors, preventing localized hotspots that lead to component fatigue in 24/7 duty cycles.

Installation and Field Guidelines

1. Chassis Grounding: Verify the integrity of the rack grounding before installation. Poor grounding can lead to common-mode noise issues that interfere with the PTCT’s signal conditioning functions.

2. Ribbon Cable Security: Firmly seat the 50-pin and 34-pin ribbon cables. GE Mark V systems often experience "I/O Out of Range" faults due to slightly loose or oxidized connector pins on the terminal card.

3. Hardware Jumper Audit: Check the hardware jumpers against your site-specific technical manual. The PTCT board often requires specific jumper settings to match the voltage levels of the local power distribution system.

FAQs

Q: Does the DS200PTCTG1BAA require specific software configuration?

A: While the hardware itself is largely fixed-function, the Mark V I/O configuration (IOCFG) must recognize the presence of this board. Ensure your control constants match the revision levels of the new card.

Q: Can this card replace a DS200PTCTG1A without the "BAA" suffix?

A: The "BAA" version is a functional successor. It typically features improved component tolerances. It acts as a direct drop-in replacement for the DS200PTCTG1A, assuming your wiring harnesses are standard for the Mark V core.

Q: What are the symptoms of a failing PTCT board?

A: Unstable power supply readings in the  or  interface, intermittent trip alarms related to power distribution, or visible discoloration on the power resistors usually indicate the need for a brand-new replacement.
